QNAP QSW-2104-2T-R2: A 2.5G Switch for the Homelab Rack

The QNAP QSW-2104-2T-R2 is a small, fanless 2.5GbE switch that shows up in a lot of homelab racks because it sits right at the price and port count sweet spot: a handful of 2.5G copper ports plus a pair of 10G SFP+ uplinks, in a case barely bigger than a paperback book. It was never designed with a rack in mind. QNAP ships it as a desktop unit with four rubber feet on the bottom, which is fine on a shelf by itself and a minor annoyance the moment it has to share space with a switch, a firewall and a mini PC on the same rail.

That gap is what a rack mount for the QSW-2104-2T-R2 is for. It pins the switch flat against the mount's deck instead of letting it float on its feet, keeps the port face lined up with the rest of the stack, and gets the whole thing off the desk and onto rails where the cable runs are shorter and tidier. It is a small, almost boring fix, but it is the difference between a rack that looks planned and one that looks like gear got piled up as it was bought.

The mount for this build:

What the QSW-2104-2T-R2 actually is

QNAP's naming is consistent if nothing else: QSW is the switch line, 2104 is roughly the port count and speed class, and the 2T and R2 mark the revision. In practice this model gives you four 2.5GbE RJ45 ports for end devices and two 10GbE SFP+ ports for uplinks, enough to tie a small cluster of NAS boxes or access points into a faster backbone without jumping straight to a full 10G switch. It is unmanaged out of the box, no web UI, no VLANs, just link lights and switching silicon. For a homelab closet that is often exactly what you want: one less thing to configure, one less thing to lock yourself out of at 11pm because a management VLAN got misconfigured.

It is also fanless, which matters more once it is sitting a few inches above or below a NAS, a UniFi access point, or whatever else is doing real work in the same enclosure. No moving parts means no whine added to the stack, and nothing to fail three years in the way a cheap fan eventually does. The tradeoff is that it depends entirely on passive cooling and whatever airflow the rack itself provides, which is worth keeping in mind once you get to placement.

Why rack it instead of shelving it

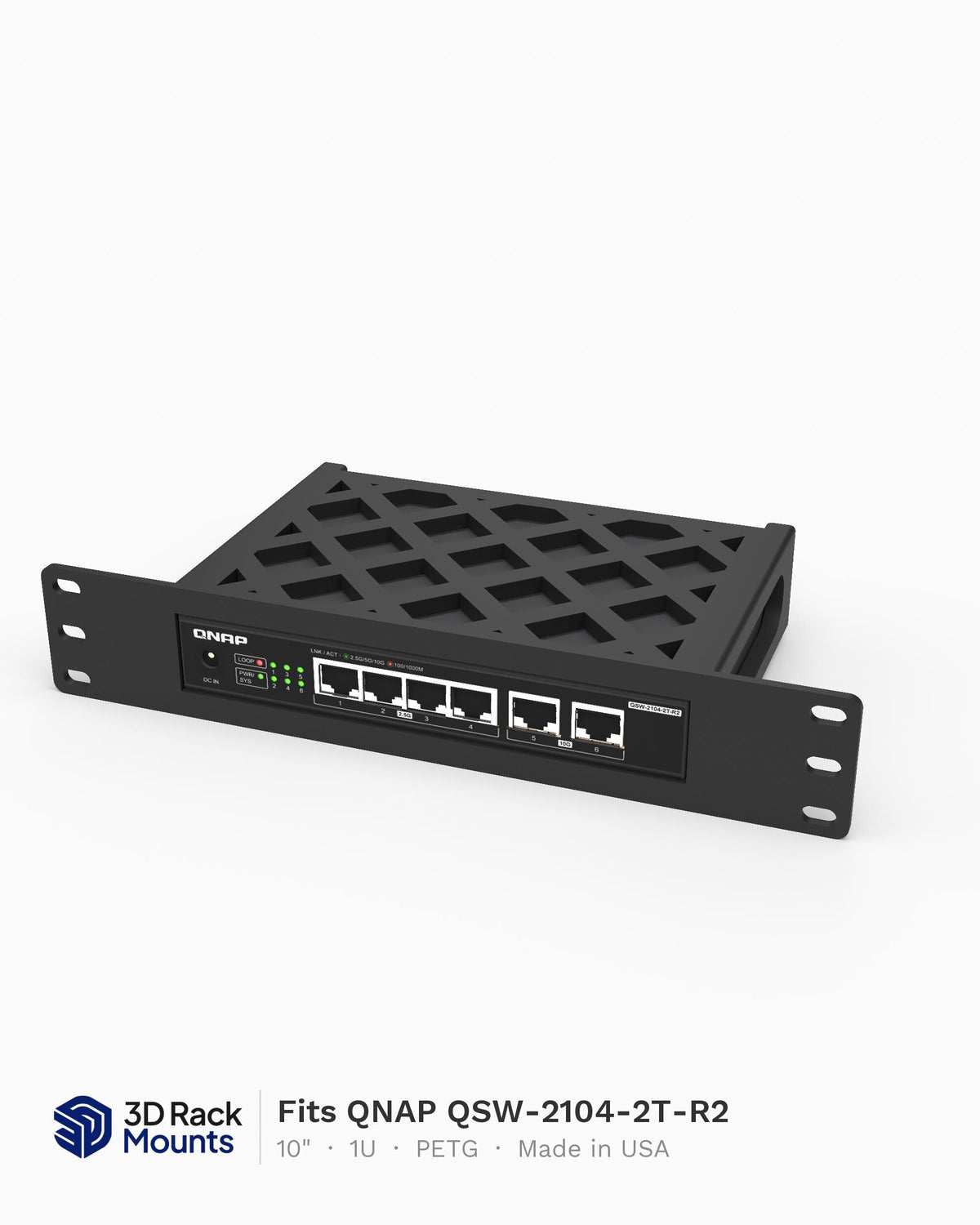

A desktop switch left loose on a shelf tends to drift: cables get tugged, the unit slides a few inches every time someone reaches past it, and eventually it is wedged sideways behind something heavier. Racking it with a QNAP QSW-2104-2T-R2 Switch 10" Mini Rack Mount solves that by giving it a fixed position relative to everything else on the rail. The port face stays at a known height, which matters when you are routing a dozen short patch cables and want them all roughly the same length instead of improvising a new run every time something gets bumped.

It also means the switch travels with the rest of the rack. Pull the rack out from a closet or move it to a new room and the switch comes with it, still mounted, still wired the same way, instead of being the one piece that has to be unplugged, relocated and re-cabled separately. That is worth more than it sounds like the first time you have to relocate a homelab in a hurry, say, because a water leak upstairs just became your problem.

There is a quieter benefit too: a mounted switch does not need its own patch of desk or shelf real estate. In a small office or a closet rack, every inch not spent on loose gear is an inch available for something that actually needs it, like a UPS or a spare drive bay.

Picking 10" or 19"

This is mostly a question of what else is in the rack, not a question about the switch itself, since the QSW-2104-2T-R2 is identical either way. A 10" mini rack is the right call for a desk-side or closet setup built around 10" gear: a mini PC, a cable modem, maybe a UniFi gateway, with the switch rounding it out in the same compact footprint. The 10" mini rack mount keeps the whole stack small enough to live on a closet shelf or a credenza.

If you are running standard 19" EIA-310-D rails, whether a half-height open frame or a full enclosed cabinet, the 19" rack mount is the one to use. It is modular, so it lines up with the other 1U mounts on the same rail without any custom spacing or shimming, and it is the better pick once the rack has grown past a single mini PC and a switch into something with a patch panel, a UPS and a few U of spare capacity for whatever gets added next.

Both versions hold the switch at 1U, roughly 44.45 mm of rail height, which is the one dimension that does not change between them. What changes is the width of the mount itself and the screw pattern it bolts to, since a 10" rail and a 19" rail are not interchangeable hardware.

Mounting and cable routing

The switch drops into the mount's cage from the front, port side out, and is held in place by small screws through the same mounting points QNAP already machined into the chassis. There is no drilling, no adhesive, and nothing permanent done to the switch itself, so it comes back out just as easily if you ever need to swap it for something bigger. Once it is seated, the four 2.5GbE ports and two SFP+ slots sit flush with the mount's front face, in line with whatever else is racked at that U.

Cable routing is where the fanless design pays off twice: once because there is no airflow path to avoid blocking, and again because a switch this small has very little slack to work with on the port side. Keep patch cables dressed to one side of the mount rather than crossing in front of the ports, and leave a little room below for the SFP+ cables if you are running DAC or fiber instead of RJ45 on the uplinks. Those connectors and their bend radius need more room than a standard patch cord, and crowding them against the next U down is a common way to end up with a cable that will not seat fully.

If the switch is going in above a NAS or a mini PC that pushes warm exhaust upward, give it a slot or two of clearance rather than stacking it immediately on top. Nothing on the QSW-2104-2T-R2 actively cools itself, so whatever heat rises off the gear below it is the only extra load it will see, and a fanless switch has no way to push that heat back out on its own.

Where it fits in a bigger build

The QSW-2104-2T-R2 earns its spot as the aggregation point for 2.5G end devices: NAS units, newer mini PCs, access points with 2.5G uplinks, anything that outgrew gigabit but does not need a full 10G port of its own. The two SFP+ ports then carry that traffic up to a router or a core switch at 10G, so the bottleneck moves off the switch itself and onto whatever is handling routing. In a rack that already has a UniFi gateway or a Protectli firewall doing that job, this switch is usually the thing sitting one slot down, quietly doing the actual switching while the router gets the attention.

It is a small part, physically, which is exactly why it is easy to leave unmounted in the first place. A loose switch sitting on top of a rack or wedged beside it is the first thing that gets knocked when you are reaching past it to unplug something else, and the SFP+ cables in particular do not forgive being yanked sideways. Thirty seconds with four screws fixes that permanently, and it is thirty seconds most people only spend after the first accidental unplug.

Wrap-up

The QNAP QSW-2104-2T-R2 does one job, 2.5G switching with a pair of 10G uplinks, and does it in a case small enough to disappear into a rack rather than dominate a shelf. Pick the 10" mount for a compact mini rack build or the 19" modular mount for a standard rail, bolt it in at the U where the rest of your 2.5G gear lands, and the cable routing sorts itself out from there. It is not a glamorous upgrade. It is the kind of fix that just makes the rest of the rack look like it was planned on purpose.
