Rack-Mounting Audio Gear: Sonos Port and the JDS Labs OL Switcher

Most of what ends up in a homelab rack is networking and compute gear: a switch, a mini PC, maybe a firewall. Audio equipment rarely gets the same treatment, even when it sits three feet away on an open shelf, tangled in power cables and HDMI leads. A Sonos Port and a JDS Labs OL Switcher are both small enough to live in a rack, and both benefit from the same screw-down stability that keeps a switch from sliding every time you unplug a cable.

Neither device ships with rack ears. The Sonos Port is a half-width streaming preamp meant to sit on a shelf or stack with other Sonos gear, and the OL Switcher is a compact line-level switcher built for a desk, not a 19 inch rail. Mounting either one means building a cavity around the chassis and bolting that into the rail, which is what these two mounts do.

The mount for this build:

Why an audio corner belongs in the rack

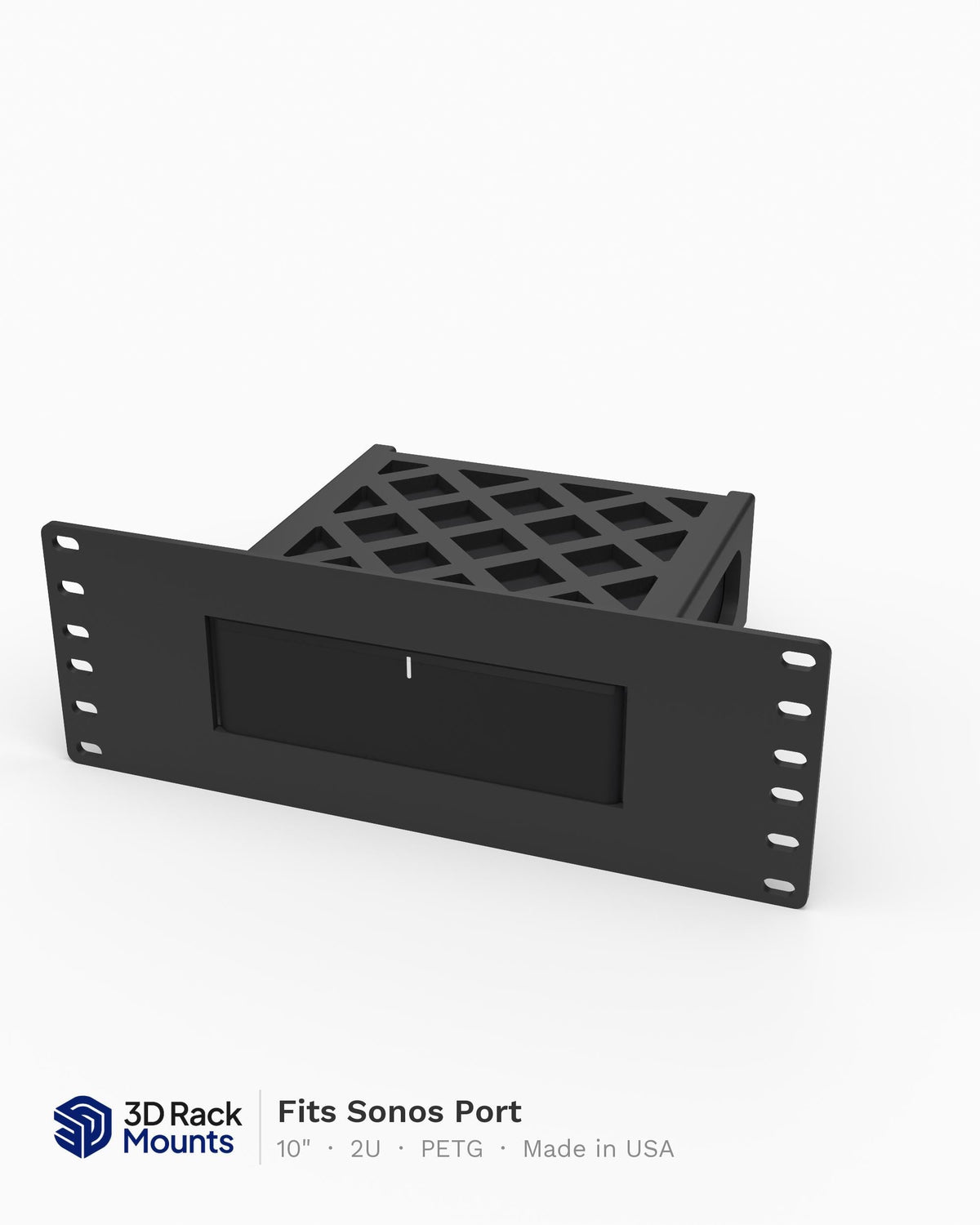

The case for racking audio gear is the same case for racking anything else: fewer loose boxes, fewer cables draped over a shelf edge, and one place to point a flashlight when something stops working. A small rack near the TV or in a closet, already holding a 10" Sonos Port Rack Mount - 2U and a line switcher, keeps streaming sources and switching hardware behind one door instead of spread across a media console.

It also solves a real physical problem rather than just a tidiness one. The Sonos Port is roughly 141 mm square and about 36 mm tall, a footprint that does not sit flush on most shelves built for AV receivers, which tend to assume something wider and deeper. A rack mount gives it a fixed slot instead of a spot it can slide out of the moment a cable gets tugged.

There is also a wiring argument. Once a Port and a switcher both live in the same enclosure as a network switch, you can run everything through the same cable management and the same power strip, instead of running a second extension cord to wherever the shelf happens to sit.

This matters more than it sounds once a system grows past one streaming zone. A Port feeding a living room amp, a second Port feeding a bedroom, and a switcher routing between two sources in an office is already three devices that used to live on three different shelves. Putting all of them on rail hardware in one cabinet turns that into one set of screws and one power strip, which is a smaller win on day one and a much bigger one the second or third time you rearrange a room.

Mounting the Sonos Port

The Port is a half-width component by Sonos's own convention, so it pairs naturally with a second half-width device in the same bay, or sits alone with the other half blanked off. The 19" Sonos Port Rack Mount - 2U (Modular) cuts a cavity sized to the Port's chassis, with venting positioned away from the rear panel so the optical and analog connections stay reachable once the unit is screwed in.

Figure on roughly 2U of height for this one. The Port is taller than a typical 1U network device once you account for clearance above the chassis for its top vents, and squeezing it into 1U would choke airflow around a device that already runs warm when streaming continuously for hours.

Cabling is the other constraint that pushes this to 2U rather than 1U. The Port carries analog RCA in and out, an optical input, a subwoofer output, and an ethernet jack on most installs, plus a removable figure-eight power cable. A mount built for it needs enough rear depth for all of that at once without the connectors fouling the rack's rear rail or a neighboring device.

The JDS Labs OL Switcher: a different kind of box

The OL Switcher is not a streaming device, and it is worth being clear about that distinction before mounting one next to a Port. It is a line-level switcher that lets you pick between multiple audio sources or destinations without digging through a receiver's menu system or swapping cables by hand. It is smaller than the Port, closer to desk-accessory size, and draws little enough power that heat is a non-issue in a rack context.

Because it is so compact, the 10" JDS Labs OL Switcher Mini Rack Mount - 1U fits it into a single U of a 10 inch mini rack, which is the more natural home for a device this size. The front panel stays exposed so the selector switches and status LEDs are visible and reachable without opening a door or pulling the unit forward, which matters for a device meant to be touched during normal use rather than set once and forgotten.

Rear clearance on the switcher is modest compared to the Port. Most connections are RCA or balanced analog, with no power brick to route since the unit typically runs off USB power, which simplifies the rear of the rack considerably and leaves more room for cable dressing around the heavier Port connections next to it.

Power and heat budget for an audio shelf

Neither of these devices asks much of a rack's power or cooling. A switch pulling PoE for a handful of cameras can draw tens of watts continuously and needs active airflow to stay within spec; the Port and the OL Switcher together draw a small fraction of that, and passive convection through the rack's vents is enough for both.

That matters for where you place them relative to hotter gear. If the same rack holds a mini PC or a PoE switch, put the audio shelf above the hottest device rather than below it, since rising heat from the switch or PC will reach the audio gear first in a sealed cabinet. It will not damage either device at the power levels involved, but a slightly warm aluminum chassis is one more variable removed from troubleshooting a hum or a dropout later.

It is also worth leaving a blank or two between the audio shelf and the busiest switching gear, not for cooling so much as for noise isolation. A PoE switch's power supply can put a faint whine into the air that a sensitive ear picks up near a quiet listening setup, and an inch or two of separation plus a blanking panel does more to quiet that than any amount of grounding work downstream.

1U or 2U, and 10 inch or 19 inch

These two devices end up at different heights for a reason: the Port's chassis is taller and needs more rear depth for its connectors, while the OL Switcher is flatter and shallower. If you are building a single audio shelf that holds both, plan on 2U for the Port and 1U for the switcher, for 3U total plus whatever blanks you want between them for airflow or just for a cleaner front panel.

10 inch racks make sense for a bedroom, office closet, or AV cabinet where a full 19 inch frame would be overkill for two small devices. A 19 inch build makes more sense when the audio corner shares a rack with networking gear that is already 19 inch, so everything lands on the same rails and the same cage nuts. Both the 19" Sonos Port Rack Mount - 2U (Modular) and the 19" JDS Labs OL Switcher Rack Mount - 1U (Modular) use the modular seam pattern, so they stack cleanly against other 19 inch mounts already in the build rather than needing their own dedicated section of rail.

Routing cable without buzz

Analog audio in a rack full of switching power supplies and PoE injectors is one of the few places where cable routing actually affects signal quality, not just appearance. Keep RCA and optical runs away from power bricks and ethernet cables carrying PoE, and avoid coiling an analog cable tight against a switch's power supply. A loop of slack is fine; a cable pressed flat against a buzzing wall wart is how you end up chasing a hum that was never coming from the source gear at all.

Ground loops show up more often in audio racks than in network racks, mostly because audio gear tends to share a chassis ground with whatever it is plugged into, and a rack with multiple outlets on different circuits can introduce just enough potential difference to hear as a low hum. If a hum appears after racking a Port or an OL Switcher that was not there on the open shelf, check the outlet strip and shared grounding before assuming the mount or the device is at fault.

Wrap-up

A Sonos Port and a JDS Labs OL Switcher are an odd pair to rack mount by most standards, since neither one was designed with a 19 inch rail in mind. But both are small, low-heat, and stable once screwed into a rail instead of balanced on a shelf edge, which is really all a rack mount needs to deliver for gear like this. Pick 2U for the Port, 1U for the switcher, and match the rail width to whatever else already lives in the same rack.
