Apple Mac Studio in a Rack: 10-Inch and 19-Inch Options

The Mac Studio was built to sit on a desk, not in a rack. It has no rack ears, no vented front panel, and nothing about its design assumes it will ever share a space with a switch and a UPS. None of that has stopped homelab builders from racking it anyway, usually because a Mac Studio ends up doing double duty as a compile box, a Plex transcode machine, or a dedicated Xcode or Final Cut render node that needs to live with the rest of the gear instead of taking up desk space next to a monitor.

Racking one means building a cage around a machine that was never meant to have one, which is mostly a question of clearance: where the Mac Studio pulls air in, where it pushes heat out, and how much room its cable cluster needs behind the mount.

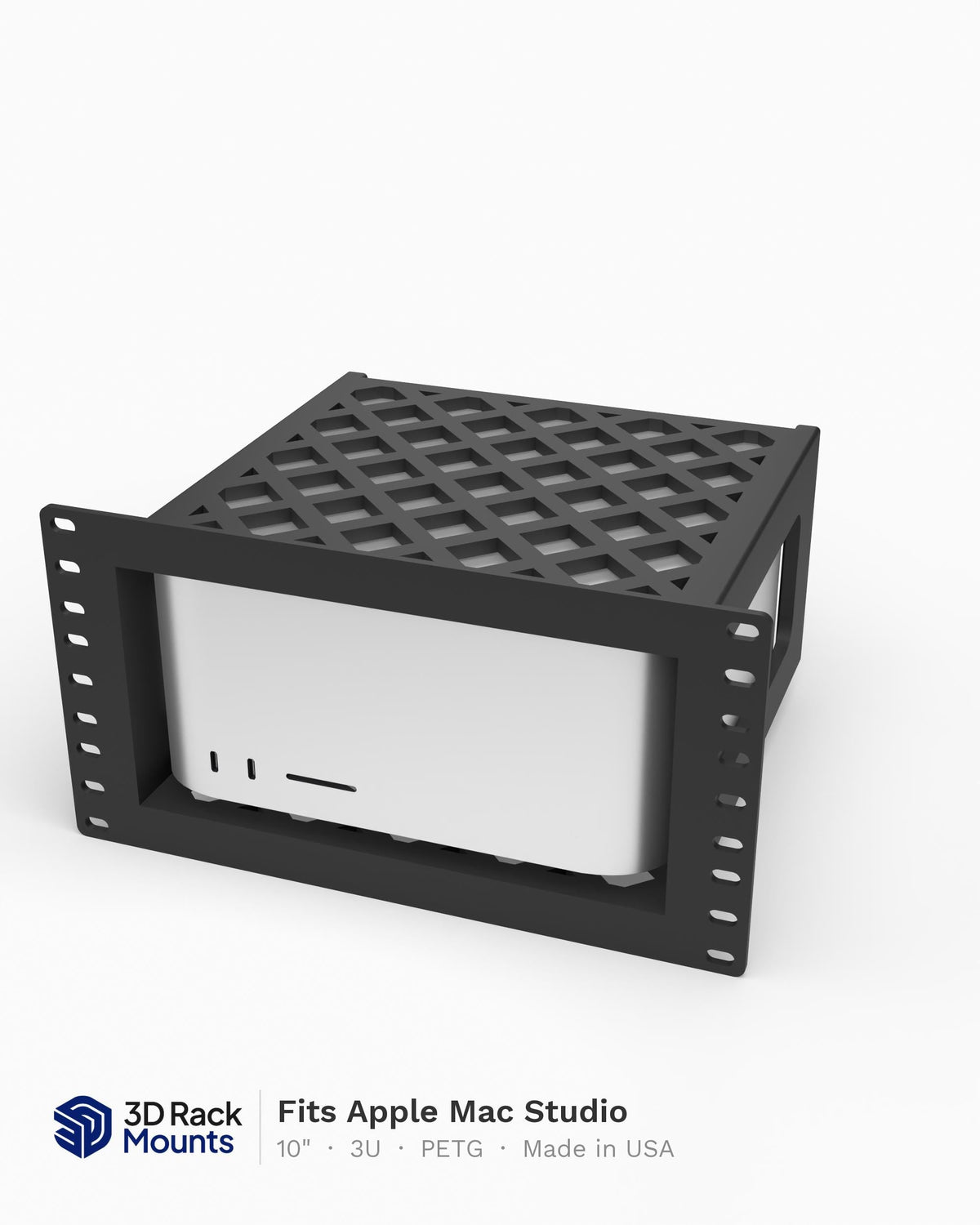

The mount for this build:

Why Rack a Mac Studio at All

A Mac Studio earns a rack slot the same way any other small, quiet, always-on machine does: once it's running a job around the clock instead of sitting idle between sessions, a desk is the wrong place for it. Compile farms, local LLM inference boxes, and video render nodes built on Apple silicon all fall into this category, and once there's more than one Mac in the mix, a rack beats a shelf for keeping them in order.

It also matters for anyone running a Mac Studio alongside networking gear, a NAS, or other compute in the same closet. A machine that size looks out of place stacked loose on top of a switch, and it has no good way to sit flat on a shelf without blocking its own underside, which is exactly where its intake air comes from.

The Mac Studio's compute density is the other reason it keeps showing up in homelab racks lately. A single unit with a high core count chip handles local inference or a render queue that used to need a small cluster of older hardware, so a rack that once held three or four aging machines now holds one Mac Studio and some spare bays. That consolidation only works cleanly if the single machine left in the rack is actually mounted like the rest of the gear instead of balanced on top of it.

Size, Weight, and the 3U Call

The Mac Studio's footprint is roughly a 7.7 inch square and its height is roughly 3.7 inches, which is close enough to 2U on its own that a tight 2U mount would leave almost no clearance for airflow or cable dressing. 3U is the call here specifically to protect the gap above and below the chassis, not because the machine itself needs the extra inch and a quarter. Weight is a secondary factor but not a trivial one: the compact aluminum unibody is dense for its size, enough that the mount needs real structural screws rather than relying on a snug friction fit to keep it from shifting in transit or during a rack move.

The depth works out fine in both the 10" Apple Mac Studio Rack Mount - 3U and the 19" Apple Mac Studio Rack Mount - 3U (Modular). The Mac Studio is short front to back for a desktop and doesn't push either format's depth limit the way a full mini PC tower might.

Keeping the Cooling Path Clear

Apple's thermal design on the Mac Studio pulls air in through the bottom and vents it out the rear, which is the opposite of the front-to-back airflow most rack gear assumes. A mount that closes off the underside or blocks the rear vent defeats the cooling entirely, so the cage is built open on both faces, holding the chassis up off the shelf below it rather than letting it rest flush. Stacking anything directly under or over a racked Mac Studio without checking that both the bottom intake and rear exhaust stay clear will run the fans harder than they need to run, and worse, may not even be noticeable until a sustained workload pushes thermals up over time.

This is the one area where a Mac Studio in a rack genuinely needs more attention than most of what else goes in one. Networking gear and NAS enclosures are mostly forgiving about which face the air enters from. The Mac Studio is not.

It's worth checking this once the machine is actually installed and running a real workload, not just at install. A mount that reads fine with the machine idling can still trap heat once a render job or a long compile run pushes the fans up, so a quick check of exhaust temperature under load after the first real job is worth the few minutes it takes.

Port Access and Cable Routing

All of the Mac Studio's ports sit on the rear panel, Thunderbolt, a built-in wired network port, HDMI, USB-A, and a card slot depending on configuration, which lines up well with a rack where every cable already runs out the back. The one awkward port is the power button and the front-facing SD card slot on some configurations, both of which end up facing into the rack rather than out, so anyone swapping a card regularly is better served by the Thunderbolt-connected card reader instead of reaching into the bay.

Cable bundling behind the mount should leave the rear vent's immediate area clear rather than routing cables directly across it. The vent runs the width of the rear panel, and a thick cable bundle laid right across it blocks exhaust in exactly the spot the machine needs it most.

Because every port is Thunderbolt or USB, a Mac Studio in a rack usually ends up as the hub for a short chain of external drives or a Thunderbolt dock rather than something with cards or drives installed internally. Planning a slot nearby for whatever external storage feeds it, rather than daisy-chaining cables across the rack from a bay several units away, keeps that cable run short and keeps it off the exhaust path entirely.

Noise and Power in a Shared Rack

The Mac Studio is quiet under light load and audibly busier under a sustained compute job, which matters more in a rack than it did on a desk because a rack usually sits in a closet or a corner where fan noise carries further than it would across an open desk. It's not loud enough to need acoustic treatment on its own, but stacked with a few other fan-equipped pieces in the same enclosure, it adds to a noise floor worth checking before putting the rack somewhere people sit near for long stretches.

Power draw scales with the chip configuration and the workload running on it, enough that a Mac Studio running flat out for a render job pulls meaningfully more than it does idling. On a rack already running close to its circuit's limit with networking and storage gear, that swing is worth accounting for rather than assuming the Mac Studio behaves like a low-power appliance the way a switch or a small NAS does.

10" vs 19": Picking a Rack

The 10" mount suits a Mac Studio running on its own or alongside a small switch and a couple of other compact pieces in a mini rack under a desk. The 19" modular mount suits a Mac Studio sharing a server rack with other compute, whether that's more Mac minis and Studios in a small Apple silicon cluster or a mix of networking and storage gear in the same enclosure. Both mounts hold the chassis the same way; picking between them is purely about what else is already in the rack, or planned for it.

A 19" rack running several Mac Studios stacked as a compute pool is the scenario where the modular format earns its keep: each unit gets its own 3U bay, each bay keeps its own clearance, and adding a fourth Studio later is a matter of bolting in another mount rather than rethinking the whole rack's layout.

Someone starting with a single Mac Studio and a small mini rack under a desk, with no plan to add a second one, is usually better served by the 10" mount. It's the smaller footprint for a smaller setup, and moving to a 19" rack later, if the project grows into one, is a separate decision rather than something the 10" mount forecloses.

Wrap-up

The Mac Studio was designed for a desk, and racking it means respecting the airflow path Apple built in rather than fighting it. Get the bottom intake and rear exhaust clear, give the cage real structural screws for the weight, plan the cable run for whatever Thunderbolt storage or dock it feeds, and the 3U call turns a desktop Mac into something that lives comfortably alongside the rest of the rack instead of fighting it for space.
