Home Assistant Green vs Yellow in the Rack: Where the Radios Go

Home Assistant Green and Home Assistant Yellow solve the same problem from opposite directions. Green is the appliance version: plug it in, walk through setup, and it runs Home Assistant OS with no assembly required. Yellow is the kit version, a Raspberry Pi Compute Module carrier board with its own power-over-ethernet option and a case meant to be opened, which makes it the pick for anyone who wants to add a Zigbee or Thread radio, swap storage, or just understand what is actually running their smart home. Both are small enough to disappear into a rack, which is exactly where they belong once the smart home hub graduates from a shelf next to the router to a real part of the network closet.

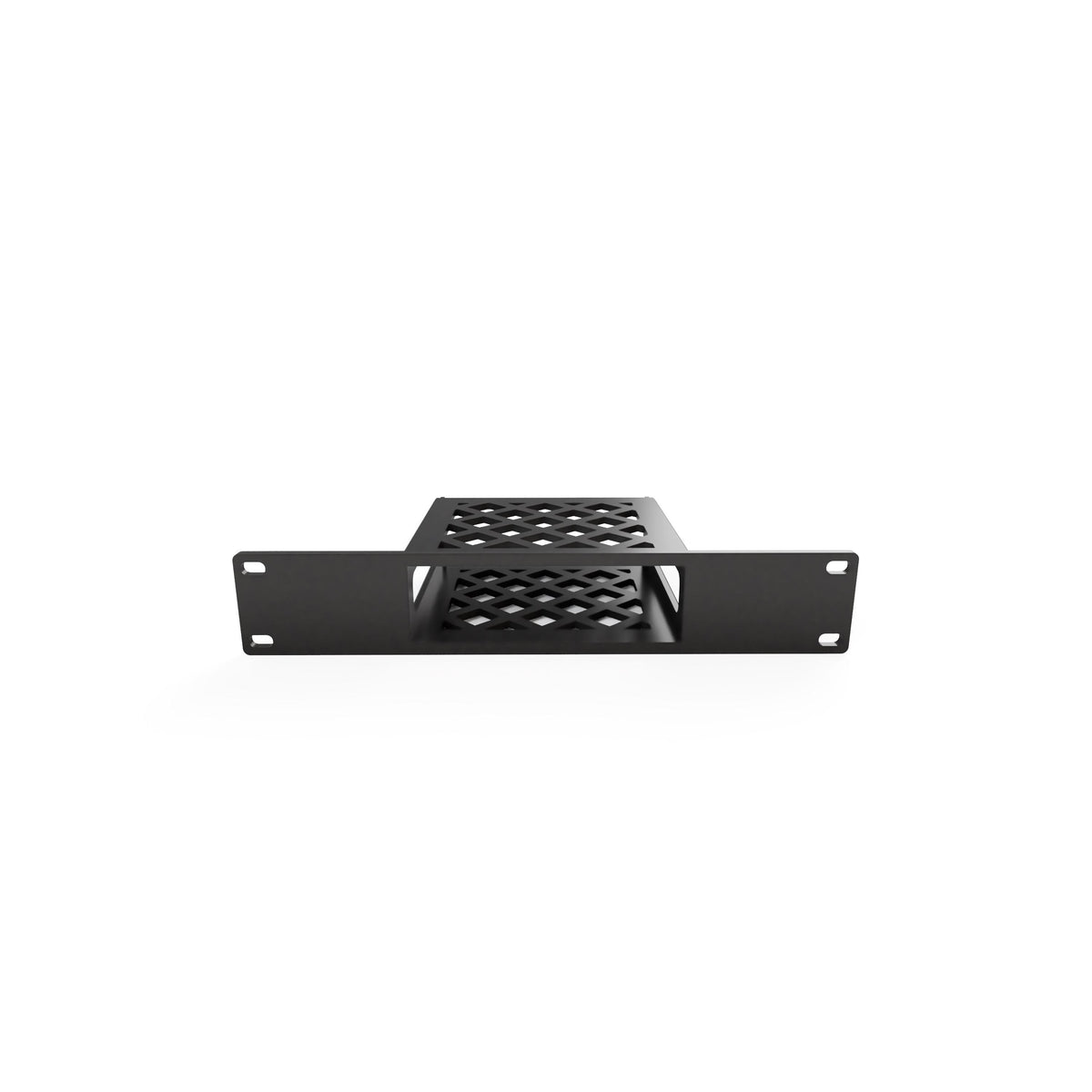

The mount for this build:

Why a smart home hub ends up in the rack at all

Home Assistant Green and Yellow both sit at the center of a growing pile of radios and bridges: a Zigbee coordinator, a Thread border router, maybe a Philips Hue Bridge Pro kept alongside for its own mesh, and increasingly a security bridge like the Ring Alarm Pro base station. Once that pile hits three or four separate bricks, a single rack slot with everything patched into the same switch and labeled properly beats a drawer of wall warts every time. A rack mount at 1U is also just good triage for a device that, if it goes down, takes the lights and the door locks with it.

Home Assistant Green: appliance simplicity, appliance constraints

Green has no fan and no user-accessible internals, which makes racking it mostly a question of keeping the vents clear rather than managing airflow around a user-installed card. The Home Assistant Green 10" Mini Rack Mount holds the unit with its top vents exposed, since that is the only real heat path on a sealed appliance chassis. Because Green runs on a fairly light power budget, roughly in line with a single-board computer rather than a full mini PC, it is a reasonable rack neighbor for other low-power gear without pushing the slot's thermal budget much at all.

The one thing Green does not give you is a PoE option, so budget a separate power brick and route that cable with the same care as the Ethernet run. A rack with a dozen devices and a dozen separate wall warts is a cable management problem waiting to happen if the power cords are an afterthought.

Green also runs its own eMMC storage internally rather than an SD card, which means there is no card slot to accidentally dislodge when sliding the unit in or out of a rack rail, unlike some of the smaller single-board hubs on the market. That is a small detail, but it is one less thing to worry about if the rack ever needs to be pulled out from the wall for other maintenance.

Home Assistant Yellow: the PoE option changes the cabling story

Yellow is built around a Raspberry Pi Compute Module 4, and the PoE variant of that board means Yellow can run on a single Ethernet cable if the switch feeding it supports PoE. That is a meaningful difference for a rack build specifically, since it is one less power cable and one less wall wart to route and label. The 10" Home Assistant Yellow Mini Rack Mount is sized for the Yellow case with its own ventilation intact, including room for the USB and GPIO access that Green's sealed case does not offer.

Because Yellow is the kit version, it is also the one people actually open up to add a radio or swap storage. If that describes your build, rack it somewhere you can pull it without disturbing three other patch cables, since a case you plan to reopen periodically is a bad fit for the bottom of a tightly packed U.

Yellow's Compute Module also runs warmer under sustained load than Green's sealed appliance board, particularly once a USB Zigbee or Thread dongle is plugged in and drawing from the same bus. Keep an eye on the board temperature in the Home Assistant OS dashboard after the first few days in the rack, especially if the slot above or below it is occupied by something else that runs warm, like a small switch or a PoE injector.

Philips Hue Bridge Pro: the mesh that still needs its own brain

Even with Home Assistant running the show, a lot of households keep a Hue Bridge Pro in the mix because Hue's own Zigbee mesh and firmware updates are handled independently of whatever hub is doing the automation logic. The Philips Hue Bridge Pro 10" Mini Rack Mount keeps it in the same 1U neighborhood as Green or Yellow, which matters for signal reasons as much as tidiness: Zigbee and Thread both do better with the coordinator and any bridges in open air rather than buried behind a stack of metal gear, so a rack slot with a clear front face is actually a better RF environment than a shelf wedged behind a monitor.

Ring Alarm Pro: the base station that wants to be near the panel

The Ring Alarm Pro base station is a 2U job rather than 1U, since it carries a built-in battery backup and a slightly larger chassis than the smart hubs above. The 10" Ring Alarm Pro Base Station Mini Rack Mount gives that battery and the internal electronics room to vent, which matters more here than on the hub-only devices since the base station is also acting as a cellular backup radio and local Z-Wave hub at the same time.

If the household's actual alarm panel or keypad lives somewhere else in the house, that is fine. The base station's job is network and cellular connectivity, not physical signage, so racking it in the closet with everything else and letting the keypads handle the user-facing side is the normal setup, not a compromise.

Battery backup is the other reason to give the Ring base station its own breathing room in the rack. A sealed lithium pack sitting against a warm neighbor for months at a time ages faster than one with clear air on at least one side, and replacing that battery down the line is a lot less annoying if the unit was racked with enough clearance to slide forward rather than wedged tight between two other devices.

Keeping the radios happy once everything is racked

Zigbee, Z-Wave, and Thread all run in the same general RF neighborhood as 2.4GHz Wi-Fi, and a rack packed with metal gear, switches, and patch panels is not a great radio environment even with the front face left open. If a device's mesh starts dropping nodes after a move into the rack, the fix is usually not more power but a cleaner line of sight: keep nothing dense directly in front of the Zigbee coordinator's own 1U or 2U slot, even if the rest of the rack is fully populated above and below it.

A steel rack frame and a solid door, if the cabinet has one, both attenuate RF more than an open wire shelf would. If the rack lives behind a closed door and the mesh was reliable before the move, that is usually a sign the door itself is the obstruction, not any one device's placement. A rack with a vented or mesh door is the easy fix; a few extra Zigbee repeaters elsewhere in the house is the fallback if the door cannot change.

Home Assistant Green and Yellow both talk to a lot of other things on the network, cameras, voice assistants, media players, and whatever automations tie them together, so the switch port feeding the hub deserves a little more thought than just plugging into whatever jack is free. A dedicated VLAN for IoT and smart home traffic, patched through to the same switch the hub lives next to, keeps a compromised smart plug or a misbehaving camera from having a clear path to the rest of the network. That segmentation has nothing to do with the mount itself, but it is far easier to set up correctly the first time a hub goes into the rack than to retrofit later, and a short patch cable from hub to switch, rather than a long one routed the scenic way, keeps the whole bundle easier to dress around the Zigbee coordinator's own clear-air requirement.

Wrap-up

Home Assistant Green, Yellow, a Hue Bridge Pro, and a Ring Alarm Pro base station all have good reasons to live in the rack once a smart home setup outgrows a shelf of loose adapters. Match the 1U or 2U slot to what each device actually needs to vent or broadcast, keep the power cabling as disciplined as the Ethernet, and the smart home stack ends up as tidy as the rest of the network closet.
