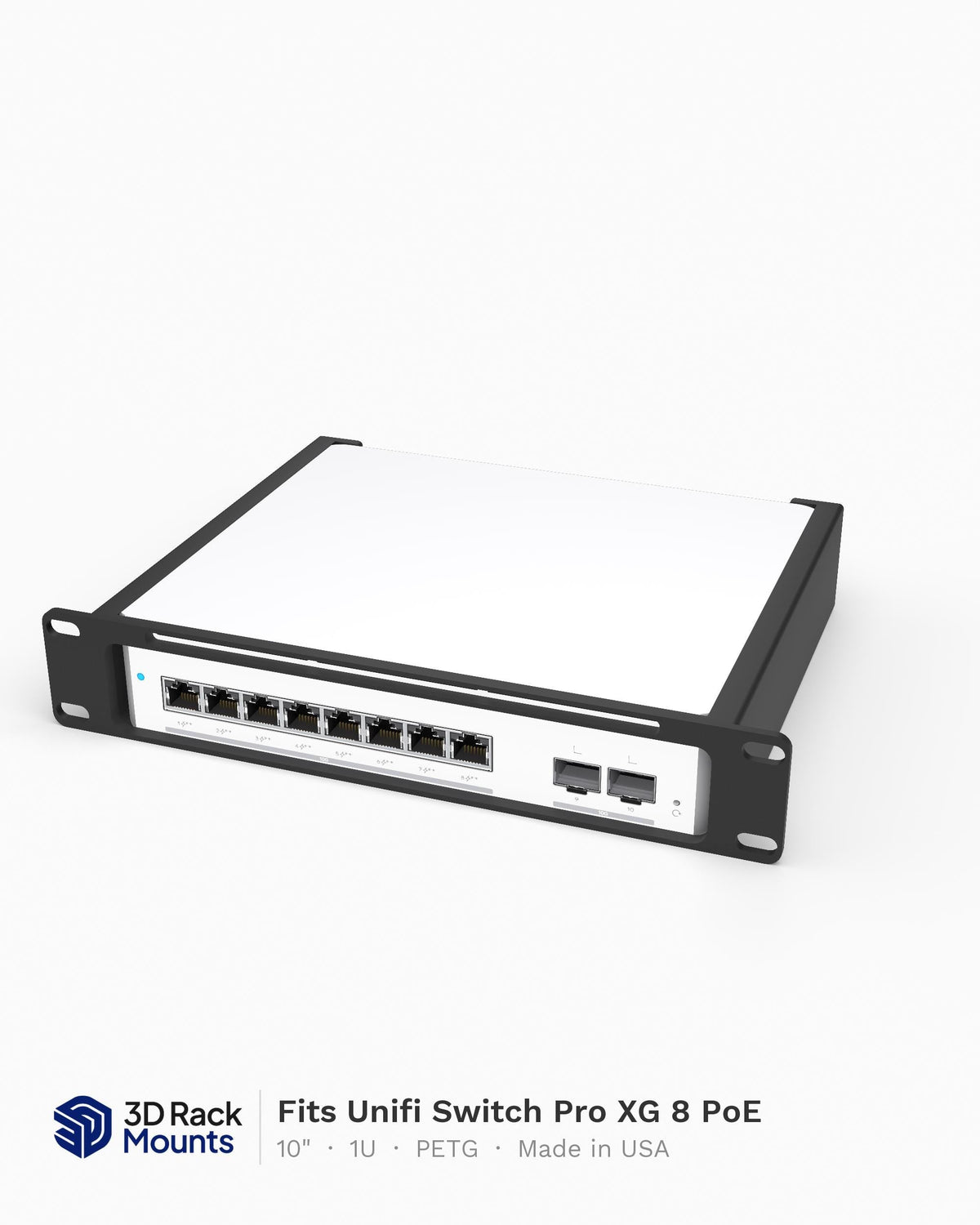

UniFi Switch Pro XG 8 PoE in a Rack: 10G PoE in 1U

The UniFi Switch Pro XG 8 PoE fills a specific gap in UniFi's lineup: eight ports of 10G PoE++ in a compact 1U chassis, aimed at anyone who's outgrown 2.5G and needs multi-gigabit throughput with power delivery on the same box. It sits above the Flex XG line on capability and below the larger Pro Max switches on port count, which makes it a common pick for a homelab that's standardized on a handful of 10G devices rather than a full server room's worth.

That gap is a real one in practice. A lot of homelabs jump straight from 1G to 2.5G and stop there, since 2.5G covers most Wi-Fi 6 and Wi-Fi 7 access points comfortably. The jump to 10G tends to happen later, once a NAS, a server, or a desktop workstation needs more throughput than 2.5G can deliver, and at that point PoE++ capability on the same switch is a convenience rather than the main draw.

The mount for this build:

Why the fan matters for mounting

Like most of the Pro-series UniFi switches, it ships with an active cooling fan, which changes the mounting conversation compared with the fanless Flex and Lite lines this blog covers often. Airflow and placement matter here in a way they don't for a passive switch.

It's worth being clear about where this switch sits in UniFi's current lineup before you buy one. UniFi sells several tiers of 10G-capable switches, and the Pro XG 8 PoE is positioned as the compact, PoE-focused option rather than the high port count aggregation switch some homelabs eventually want in the rack. If your plan is one switch to handle both edge devices and server aggregation, check the port count and SFP+ uplink situation against your actual topology before assuming this is the only switch you'll need.

A common pattern is to run this switch at the edge, feeding a handful of 10G-capable endpoints directly, with a separate aggregation switch handling uplinks between multiple edge switches and the core. If your homelab is still a single switch doing everything, that distinction doesn't matter yet, but it's worth knowing before you're three switches deep and retrofitting a topology you didn't plan for.

Unlike the fanless USW-Ultra or USW Flex 2.5G 8, the Switch Pro XG 8 PoE actively exhausts heat, and under a full PoE++ load across all eight ports that fan runs harder than most homelab switches ever need to. Our mount keeps the chassis vents clear on both intake and exhaust sides rather than boxing the switch into a tight cavity, which matters more here than it does for most of the switches we cover.

At 1U, roughly 44.45 mm under EIA-310-D, there's no extra vertical clearance built in beyond the standard cavity, so don't stack a solid blank or another actively cooled device directly above or below it if you can avoid it. A U of breathing room costs you nothing and keeps the fan from working harder than it needs to.

The chassis is also a bit heavier than a fanless switch of the same port count, mostly due to the heatsink and PoE power supply components packed into a compact 1U footprint. The mount accounts for that weight with support positioned under the chassis rather than relying purely on the front rail ears to carry the load, which matters more on an actively used switch than it would on something that just sits there drawing minimal power.

PoE++ budget planning

Eight ports of PoE++ capability sounds like a lot until you do the math on what you're actually powering. Add up the real draw of every access point, camera, or PoE device you plan to run off this switch and compare it against the switch's total PoE budget, not just the per-port maximum. Running several high-draw PoE++ devices at once can approach the switch's overall budget well before any single port hits its ceiling.

This matters more on a switch like this than on a basic PoE+ switch, since people buying PoE++ capability tend to be running higher-draw devices, like PTZ cameras or higher-power access points, that eat into the shared budget faster than a handful of simple IP cameras would.

Check the UniFi controller's power consumption display once everything is running rather than relying on manufacturer spec sheets for your planning. Real-world draw on PoE devices often sits a bit under the published maximum, and the controller will show you the actual number per port, which is a better guide for whether you have headroom for one more device than a spreadsheet built from datasheet numbers.

Leave yourself a buffer rather than planning to the exact edge of the budget. Firmware updates occasionally adjust how a device negotiates power, and a plan that assumed every watt of the published budget would be available can get uncomfortable the next time a camera or access point asks for slightly more than it used to.

10G and the rest of your network

A switch like this only pays for itself if something on the other end can use 10G. A NAS with a 10G NIC, a UniFi gateway with a matching uplink port, or a desktop with a 10G add-in card are the common reasons to own one. If your fastest device tops out at 2.5G, the 19" Unifi Switch Pro XG 8 PoE Rack Mount - 1U and its 10-inch counterpart are more switch than you need, and a USW Flex 2.5G 8 will save you money without leaving performance on the table.

For homelabs that have already standardized on 10G for a NAS and a couple of high-traffic devices, this switch is the natural next step up from a 2.5G-only setup, and the PoE++ capability means you're not giving up power delivery to get there.

It's also worth sanity-checking your cabling before assuming 10G will just work. Older in-wall Cat5e runs are usually fine for 2.5G but can struggle to hold a stable 10G link over longer distances, particularly if the run has any sharp bends or sits close to a power cable for part of its length. A short Cat6 or Cat6A patch cable between the switch and a nearby device is a safer bet than trusting an old in-wall run to deliver full speed.

10-inch or 19-inch

The 10-inch mini rack version fits a compact homelab stack where this switch is the centerpiece, paired with a gateway and maybe a small NAS in the same enclosure. Given the fan noise under load, a mini rack in a closet or utility space is a better fit than one sitting next to a desk.

The 19-inch version slots into a standard cabinet the same way any other 1U switch would, and it's the more common choice once you're running enough other 1U and 2U gear that a full-size rack already made sense before this switch entered the picture.

Whichever size you choose, leave the switch toward the middle of the rack's U positions rather than the very top or bottom if you have the choice. Heat rises, and a fan-cooled switch sitting directly above a pile of passive gear will run slightly warmer than one with open rack space both above and below it to help the airflow along.

Cabling and noise

Route your cables with enough slack to avoid blocking the side or rear vents, depending on which way this chassis exhausts. A cable bundle pressed against the vent defeats some of the purpose of giving the unit clearance in the first place.

If fan noise is a concern, the practical fix isn't the mount, it's where the rack lives. Moving the whole enclosure to a closet or a separate room solves the noise problem far more effectively than any amount of mounting cleverness, since the fan itself doesn't get quieter no matter how it's racked.

UniFi's controller also lets you keep an eye on fan speed and switch temperature over time, which is worth checking periodically rather than assuming everything stays steady. A fan that's gradually climbing to a higher baseline speed over several weeks, with no change in PoE load, is usually a sign of dust buildup at the intake rather than anything wrong with the switch itself.

Wrap-up

This is a switch for homelabs that have already committed to 10G somewhere in the stack and need PoE++ to go with it. Get the airflow right, budget your PoE draw against the whole switch rather than per port, and plan for the fan noise by placing the rack somewhere that noise doesn't matter rather than fighting it with the mount alone.

None of the mounting considerations here are unusual on their own. What makes this switch different from most of what we cover is the combination of active cooling and real PoE++ load in a compact footprint, and treating both of those seriously from the start saves you from troubleshooting a heat or power problem later that was really a placement problem from day one.
