Smart Home Hubs Belong in the Rack: Hue, Lutron, and the Rest

Smart home hubs are the last devices to make it into most racks, and the reason is usually aesthetic rather than technical. The router went in because it had ports. The switch went in because it had more ports. The Hue Bridge stayed on a bookshelf behind a plant because it is a small white puck with a status LED and nobody wanted to think about it. Then one day you trace a flaky Zigbee group back to a bridge that has been sitting on carpet, half-covered by a stack of mail, plugged into an outlet on a circuit that shares a breaker with the microwave.

Racking hubs solves the mess. It also introduces a problem that racking a switch does not: most of these devices are radios, and a rack is a metal box full of other radios. Getting this right means treating the hub as an RF device with an Ethernet port attached, not as a small computer that happens to have an antenna. Placement inside the rack, what sits above and below it, and whether the enclosure has a door all matter more than anything about the mount itself.

The mount for this build:

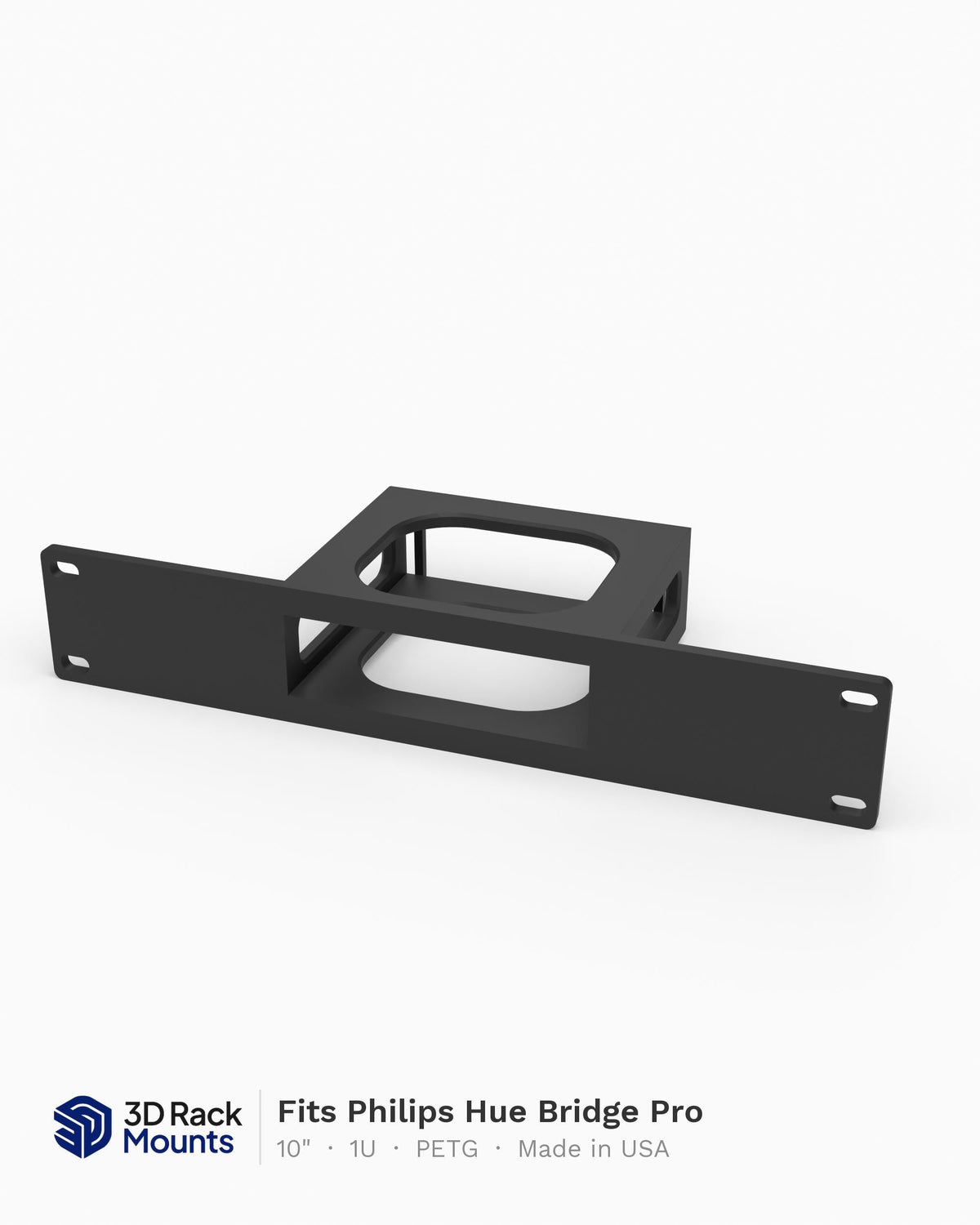

Philips Hue Bridge Pro 10" Mini Rack Mount - 1U

What is actually in these boxes

The hubs people rack fall into three broad categories, and the category determines how much you have to care about placement.

• Zigbee bridges — Philips Hue, Aeotec/SmartThings, Hubitat. Zigbee runs in the 2.4 GHz ISM band on 16 channels, at output powers measured in single-digit milliwatts. Low power, and it shares spectrum with every 2.4 GHz Wi-Fi network in the building.
• Sub-GHz bridges — Lutron Caseta and RA2 use Clear Connect at 434 MHz in North America; Z-Wave sits around 908 MHz. Lower frequency, better material penetration, far less crowded spectrum. These are the forgiving ones.
• Wired controllers — Home Assistant Green, a Pi running Home Assistant OS, an Omada or UniFi controller VM. No radio at all unless you add a USB stick. These can go anywhere in the rack, which is exactly why they should go in the spot with the worst RF.

That last point is the whole placement strategy in one sentence. You have a finite amount of good RF real estate in a rack, and devices that do not use radios should not occupy it.

The rack is a Faraday cage with opinions

A steel enclosure attenuates 2.4 GHz meaningfully. How much depends on construction: an open frame barely registers, a cabinet with a perforated steel door costs you something in the range of a few dB, and a cabinet with a solid steel or smoked-acrylic-in-a-metal-frame door can cost you 10 dB or more depending on aperture size relative to wavelength. At 2.4 GHz the wavelength is about 125 mm, so perforations and vent slots much smaller than that behave like a shield rather than a window.

Sub-GHz suffers less from the same enclosure, both because the wavelength is longer (roughly 690 mm at 434 MHz, so most apertures look transparent) and because the link budget has more slack to give. This is why Lutron installs survive being buried in a closet and Zigbee installs do not.

Practical consequences, in order of how much they matter:

• If your rack has a solid door and you rack a Zigbee bridge, expect to lose devices at the edge of the mesh. Mains-powered Zigbee bulbs and plugs act as routers and will paper over some of it, but a battery sensor at the far end of the house is the one that goes offline.
• Height helps. A hub mounted in the top 2U of a rack sees a better path to the rest of the house than one at ankle height, especially if the rack sits on a slab.
• Metal directly adjacent is worse than metal a few U away. A Zigbee bridge sandwiched between two steel-cased switches with no gap is the worst case in an otherwise fine rack.

The 10-inch cabinets most homelabs use are usually the good case here, since a lot of them ship with perforated or acrylic doors and the frames are lighter gauge than a full 19-inch enclosure. The Philips Hue Hub & Lutron Smart Bridge 10" 1U Rack Mount puts both hubs in the same 1U opening, which is convenient but also means both radios end up at the same height — worth thinking about if one of them is doing the heavy lifting.

Where in the rack each hub belongs

Assume a 12U 10-inch cabinet against an interior wall. A reasonable RF-aware layout, from the top down:

• Top 1-2U: the Zigbee bridge. Highest position, furthest from the floor and the mass of metal below.
• Next: the sub-GHz bridge. It does not need the best spot but it benefits from not being at the bottom either.
• Middle: switches, patch panel, router. All wired, all indifferent.
• Bottom: the wired controller, the UPS, the power strip, and anything with a transformer in it.

The Hue Bridge Pro is worth calling out separately because it changed the calculus. The original Bridge v2 was a 90 mm square puck; the Pro is larger, runs warmer, and does considerably more processing locally — it is a small computer with a Zigbee radio rather than a radio with a network stack. It still wants the high slot, but it also wants air, which the older bridge never really did.

Lutron's hubs are the opposite. The Smart Bridge and Smart Bridge Pro draw almost nothing, run cool, and at 434 MHz do not much care what you put them next to. If rack space is tight, this is the device that gets demoted. The 10" Lutron Smart Bridge & Smart Bridge Pro Mini Rack Mount - 1U with Keystone includes a keystone position, which is the right way to handle a device whose only cable is a single run of Cat5e — terminate the run at the panel, patch across the front, done.

Power, PoE, and the wall-wart problem

Almost every hub in this category ships with a low-current barrel-jack supply: 5 V at 1 A for a Hue Bridge, 5 V at 2 A or so for a Lutron Pro, 12 V for a few of the older Z-Wave controllers. None of that is difficult. The difficulty is that the supplies are physically awkward — oversized bricks with the transformer at the plug end, which means they hog outlet positions on a rack PDU or power strip and hang out of it at an angle.

Three ways to deal with it, in rough order of preference:

• Short extension leads. A 150 mm C13-to-outlet pigtail or a strip with spaced outlets costs almost nothing and lets the brick sit flat on a shelf instead of levering itself out of the socket.
• PoE splitters. If your switch already has PoE ports, a 802.3af splitter delivering 5 V at 2.4 A removes the brick and the outlet entirely. Budget roughly 6-7 W at the port for a hub plus splitter overhead, and check the barrel size and polarity before ordering — 5.5 x 2.1 mm center-positive is common but not universal.
• Consolidated multi-output supplies. Works, but you have now built a single point of failure for every hub in the rack, and the failure mode is "the whole house went dumb at once."

One gotcha specific to racking: none of these hubs have a power switch. Everything is unplug-to-reboot. Whatever you do with cabling, make sure you can reach the barrel jack without pulling the mount, or you will end up removing four screws every time a firmware update goes sideways.

Thermal reality, or the lack of one

These are low-power devices. A Hue Bridge is a couple of watts. A Lutron Pro is similar. A Home Assistant Green idles around 3-4 W and peaks somewhere near 10 W under load. In a rack that already contains a switch dissipating 15-20 W and a mini PC doing 25 W, the hubs are rounding error on your heat budget.

What they do care about is being buried. A hub with its vents pressed against the underside of the device above it will run 10-15 degrees C hotter than the same hub with 10 mm of air, and while that rarely kills anything outright, it is the difference between a bridge that runs for five years and one that starts dropping its Zigbee network on hot afternoons in year three. Mounts that leave the top of the device open — which is most 1U mounts for hubs, since the device is much shorter than 44.45 mm — handle this for free. Just do not stack a 1U hub directly beneath a mini PC exhausting upward.

The Home Assistant question

If you run Home Assistant, half of this post becomes optional. A Home Assistant Green or Yellow with a Zigbee coordinator stick can replace the Hue Bridge and the SmartThings hub outright, and Lutron integrates over the LAN through the Pro bridge's telnet or LEAP interface. One box, one Ethernet run, one 1U opening.

The catch is the coordinator stick. A USB Zigbee dongle plugged directly into a rack-mounted controller is now a radio inside a metal box, sitting next to a USB 3.0 port that radiates broadband noise right through the 2.4 GHz band. USB 3.0 interference with 2.4 GHz radios is well documented and entirely real. The fix is a USB extension cable of 500-1000 mm that gets the dongle out of the rack and away from the chassis — ugly, effective, and non-negotiable if you want a stable mesh. Mount the controller with the Home Assistant Green 10" Mini Rack Mount - 1U, then route the dongle out the back and up.

Migrating off vendor bridges is not free, either. Re-pairing a house worth of Zigbee bulbs is an evening you will not get back, and Hue's own app features (entertainment zones, adaptive lighting) do not survive the move. Plenty of people run both: Home Assistant as the brain, the Hue Bridge as a Zigbee segment it talks to over the network. In that arrangement both boxes end up in the rack anyway, and the bridge still wants the high slot.

Ten inch or nineteen

Hubs are small. A Hue Bridge is roughly 90 mm square; a Lutron Smart Bridge is similar; a Home Assistant Green is about 110 mm square. All of them disappear into a 19-inch opening with 300-plus millimeters of dead space beside them, which is why the 10-inch format has become the default for this class of device. A 10-inch rack is 254 mm wide with roughly 220 mm of usable interior, and a hub plus a keystone or two fills it properly.

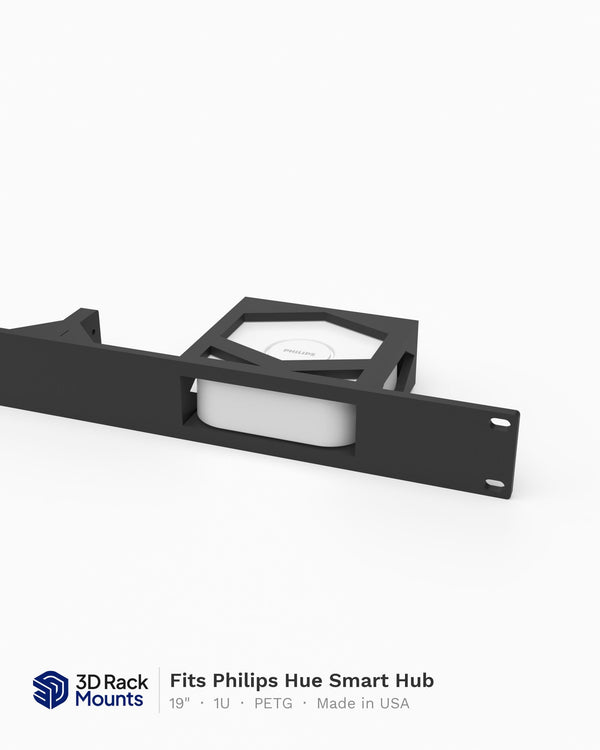

The case for 19-inch is that you already have one. If the hub is joining an existing 19-inch cabinet, a modular mount that lets you put two or three devices side by side in a single 1U is the only sensible approach — one hub alone in 19 inches wastes a rack unit you will want back later. The Philips Hue Smart Hub 19" 1U Rack Mount (Modular) exists for exactly that: put the bridge in one segment, a second hub or a keystone strip in the next, and the U earns its place.

The other argument for 19-inch is door construction, and it usually runs against you. Full-size cabinets tend to have heavier doors and denser perforation than 10-inch mini racks, which is the wrong direction for a 2.4 GHz radio. If your 19-inch cabinet has a solid door and you are about to rack a Zigbee bridge in it, run the mesh for a week with the door open, then close it and see what falls off. Better to learn that on purpose than in February when a leak sensor goes quiet.

Wrap-up

Racking a smart home hub is straightforward mechanically and slightly subtle electrically. The mechanical part is a 1U opening, a short Ethernet run, and somewhere sane to put the power brick. The subtle part is remembering that a Zigbee bridge is a low-power 2.4 GHz radio you are about to place inside a grounded steel box next to other radios: give it the top of the rack, give it air, keep USB 3.0 away from any coordinator dongle, and demote the sub-GHz and wired boxes to the bottom where the RF is worse and nobody notices. Do that and the hubs stop being the loose ends of the install and start being just another row in the rack.
