Rack-Mounting the ISP Box: Arris, Calix, Spectrum, and AT&T

Every homelab rack has one device that didn't get a vote: the ISP box. The modem, ONT, or gateway your provider handed you was designed to sit on a shelf near a coax outlet, sprout a wall wart, and be forgotten. It was not designed for EIA-310-D rack rails, and its manufacturer would be surprised to learn you own a rack at all. But if the rest of your network lives in a tidy 10-inch or 19-inch enclosure, leaving the demarcation device on the carpet next to it undoes half the point.

This guide covers how to get the common ISP hardware into the rack without breaking your service, your warranty, or your lease: Arris cable modems, Calix and Nokia fiber ONTs, Spectrum's rotating cast of gateways, and AT&T's BGW series. It also covers the parts that are easy to get wrong (the fiber bend, the coax, grounding) and what changes when the rack is in a small-business closet rather than at home.

The mount for this build:

Arris Surfboard S33 & S34 10" Mini Rack Mount - With Keystone 1U

Three different boxes wearing the word "modem"

"ISP equipment" covers three families that have almost nothing in common mechanically, and the racking approach differs for each.

• A cable modem is the DOCSIS box on a coax drop: the Arris Surfboard line and the Spectrum-supplied units. It is a radio that turns cable-plant RF into Ethernet. Most are tall, narrow towers cooled by convection up through the top, and they run warmer than people expect.
• A fiber ONT is the optical network terminal where the glass ends and Ethernet begins: Calix GigaPoint units, the Nokia G-010G-A and similar. They are small and run cool, and their dominating constraint is not heat but the fiber pigtail.
• A carrier gateway is the all-in-one: AT&T's BGW 320 and the gateways that combine a modem or ONT with a router and Wi-Fi. These are the largest and hottest, and the ones you most want to bridge, which changes where they should sit.

Shopping for a mount by brand name alone is how people end up with the wrong part. Know which of the three you have first.

Why the ISP box is the hardest device in the rack

Three things make provider equipment awkward to mount. First, you don't control the enclosure. ISPs swap hardware revisions without notice, so a mount sized for one plastic shell may not fit the replacement the tech leaves behind next year. Second, the cabling is unforgiving. Coax wants a proper service loop and a snug F-connector; fiber has a minimum bend radius that punishes tight rack-side routing. Third, these boxes are almost always passively cooled through vents that assume open air on a shelf, not a stack of neighbors above and below.

None of these are dealbreakers. They just mean the ISP device deserves a mount designed around its actual geometry and airflow, not a universal shelf and a zip tie. That's the approach every mount linked below takes: a device-specific tray or faceplate opening that holds the exact model, keeps the vents clear, and presents the ports where you can reach them.

Cable modems: the Arris Surfboard family

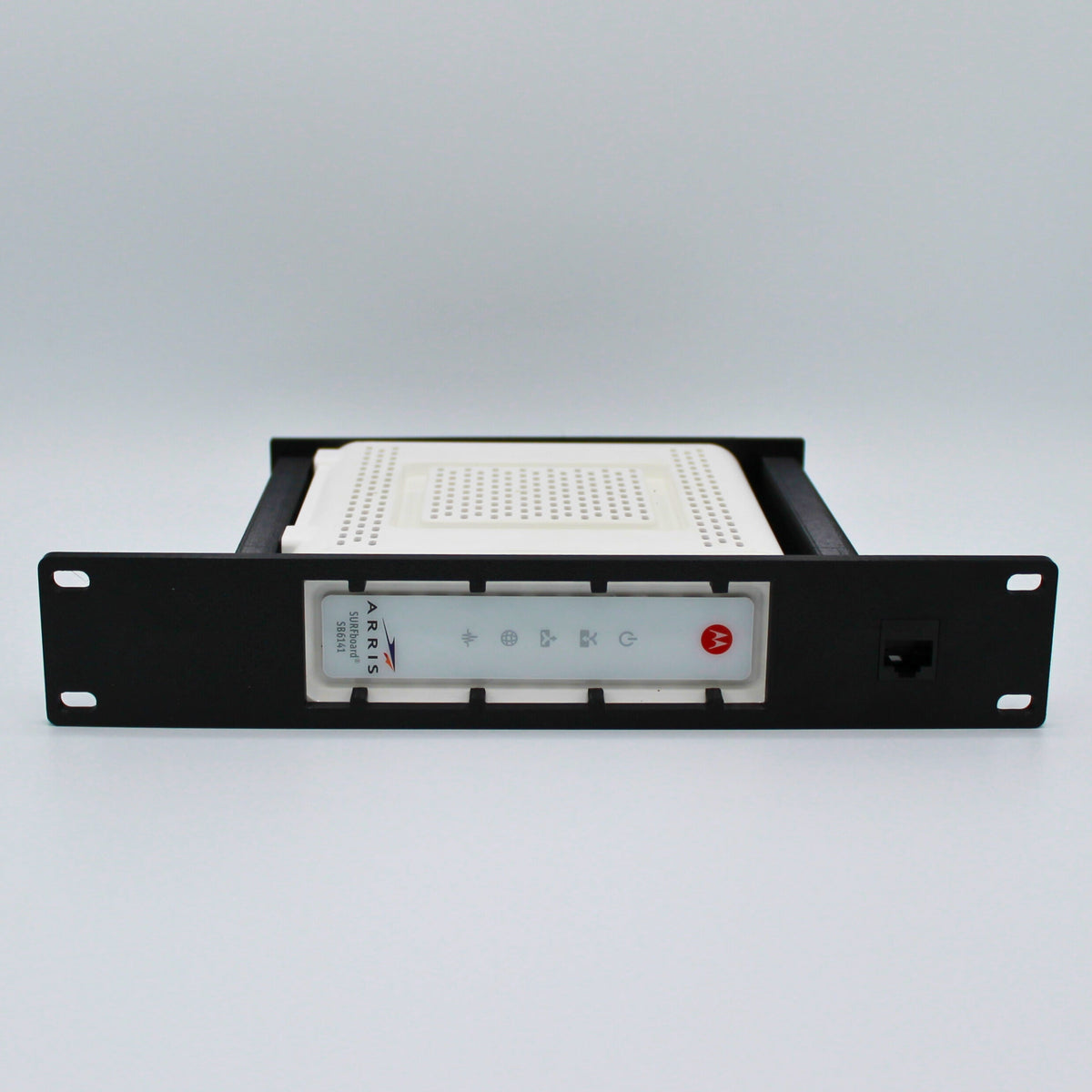

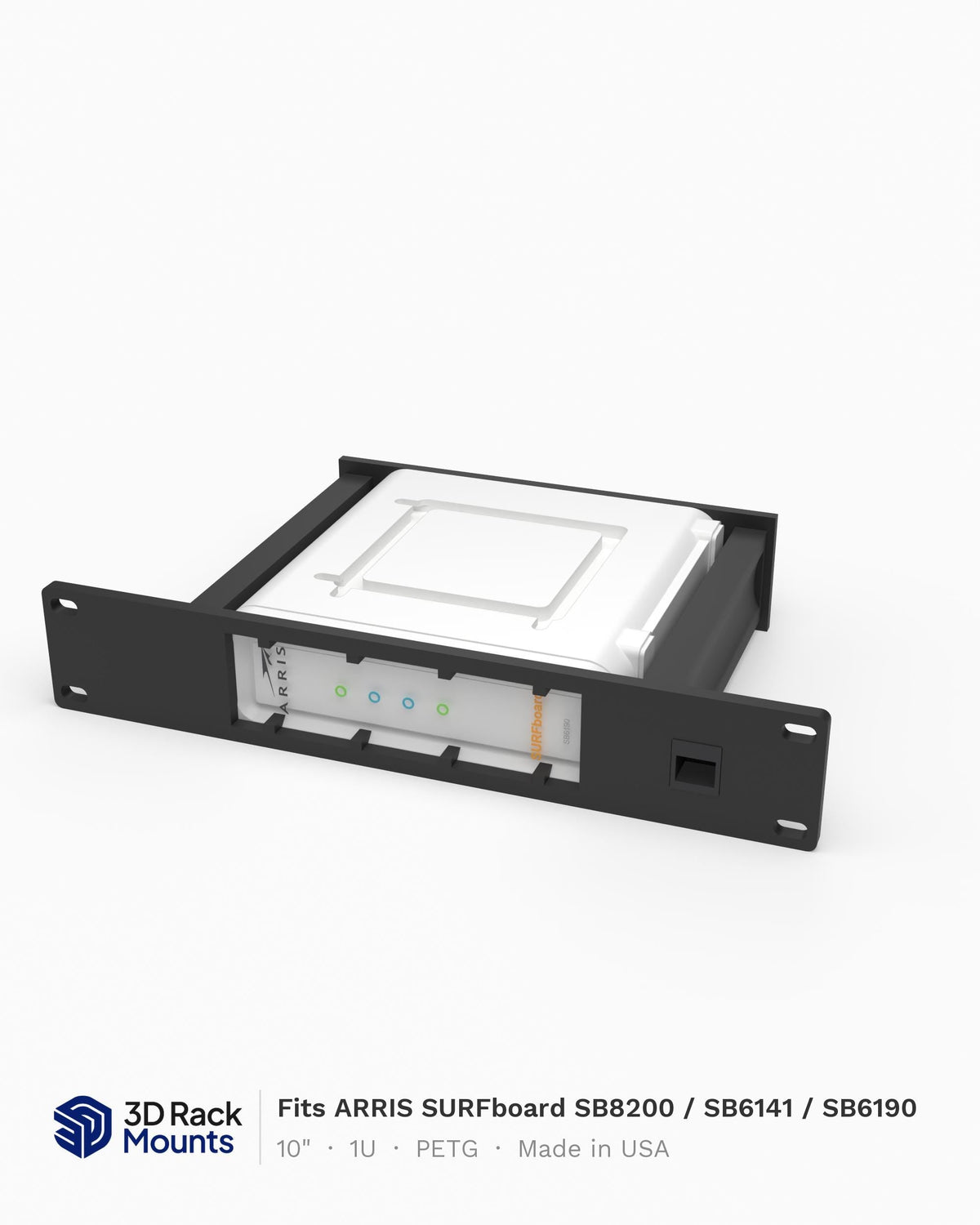

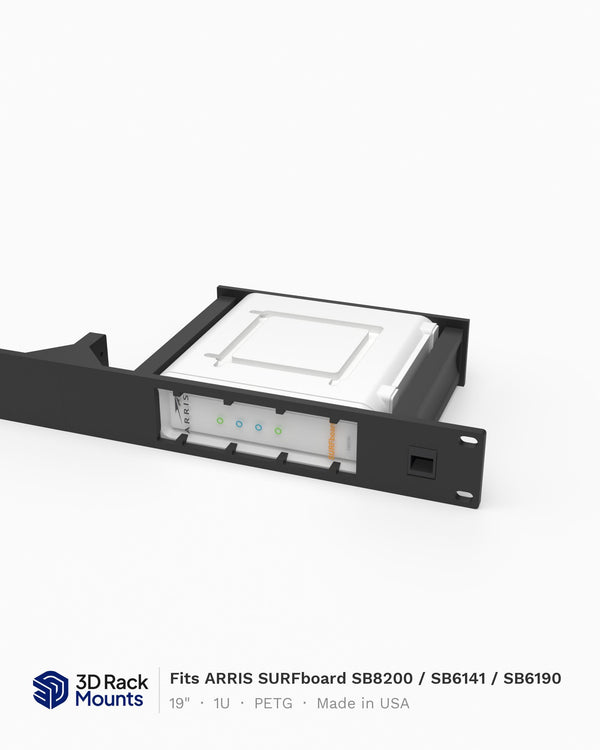

If you're on a DOCSIS cable plan and bought your own modem, odds are decent it's an Arris Surfboard. The SB8200 (DOCSIS 3.1) and the older SB6141 and SB6190 (DOCSIS 3.0) all share a vertical-tower form factor roughly 130 mm tall, a shape that tips over if a cat looks at it. The 10" Arris Surfboard Modem Mini Rack Mount - SB8200 / SB6141 /SB6190 Models holds these towers in a 10-inch mini rack with the vents unobstructed, and it ships with a keystone and an Ethernet cable, so the modem's rear port becomes a front-panel jack you can re-patch in seconds.

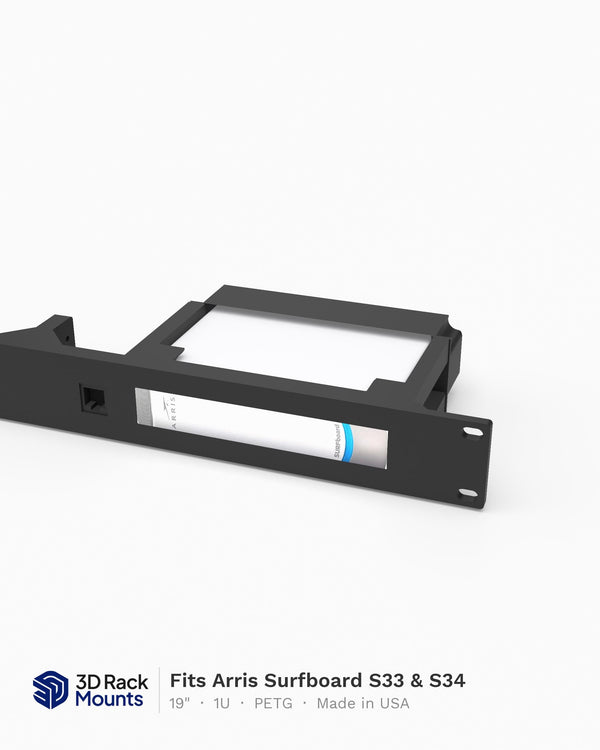

The newer S33 and S34 (DOCSIS 3.1 and 4.0 respectively) are slimmer towers with a 2.5G port on the S33 and a 10G port on the S34, which is exactly why they end up in racks: once your modem hands off at 2.5G or faster, you want it patched straight into a multi-gig switch, not dangling on a 3-meter patch lead across the room. The Arris Surfboard S33 & S34 10" Mini Rack Mount - With Keystone 1U adds a keystone pass-through next to the modem bay, so the coax feed terminates cleanly at the rack face instead of snaking through the side of the enclosure.

Coax and the F-connector

Cable modems bring a problem fiber and Ethernet do not: a stiff, threaded connector on a cable with real memory in it. RG-6 has a minimum bend radius of its own, roughly ten times the cable diameter, so around 65 mm. Violating it deforms the dielectric and shows up as degraded upstream levels and intermittent drops, often worse when it rains. Your modem's signal page will show it, if you ever look.

• Leave a service loop. If the drop comes down from above, leave a loop of at least a hand's width before the connector rather than a straight pull.
• Finger-tight plus a quarter turn. Over-torquing deforms the connector and flexes the modem's board over time.
• Isolate the wall drop. A keystone F-81 barrel at the rack face, as on the S33/S34 mount, separates the stiff wall run from a short, flexible modem-side jumper, so the cable's spring force does not walk the modem out of position.
• Test without the splitter. If a splitter feeds anything other than the modem and your speeds disappoint, a 2-way splitter costs around 3.5 dB per leg, which on a marginal drop is the difference between a stable connection and a flapping one.

Fiber ONTs: Calix, Nokia, and the bend-radius problem

Fiber customers get an ONT, the box that converts the provider's PON fiber to Ethernet. Many regional and municipal fiber ISPs deploy Calix hardware, and the GigaPoint series is a common indoor unit. The 10" Calix GP1101X GigaPoint Modem Mini Rack Mount - 1U puts this small ONT in a single 1U slot of a 10-inch rack, which is about all the space it deserves. Other carriers use the Nokia G-010G-A, an even smaller unit, which the 10" Nokia G-010G-A Fiber ONT Mini Rack Mount - 1U holds the same way. Neither ONT needs restraining for its weight. The point of the mount is to give the fiber a defined path.

The fiber itself is the part to respect. A kink does not break cleanly. The ONT's receive level drifts toward the bottom of its window, and the connection works until it rains, or the temperature changes, or months pass. Then you are chasing an intermittent fault that looks like an ISP problem and is really a tight bend behind your rack. The practical rules:

• No bend tighter than a soda can. Bend-insensitive fiber is more forgiving, but the fiber already in your wall may not be bend-insensitive, and you cannot tell by looking.
• Hook-and-loop, never zip ties. You cannot feel when a zip tie has crushed a fiber core.
• Keep the installer's service loop. The coiled slack is what a future tech uses when a connector goes bad. Coil it wide, never cut it, never pull it taut to look tidy.
• Mount the ONT near where the fiber enters. Low in the rack if the fiber comes up from the floor, high if it comes down from the ceiling.

One more ONT note: these devices are often powered by small wall warts with barrel connectors that fall out if you breathe on them. Once the ONT is rack-mounted, dress the DC lead with enough slack that a nudged cable bundle can't unseat it, and label the wall wart at the power strip. Six months from now you will not remember which anonymous black brick feeds the demarc.

Spectrum gateways: mounting a moving target

Spectrum (Charter) issues a rotating set of modems and combined gateways from several manufacturers depending on region and tier. They share a general profile: a roughly book-sized plastic shell with top and side venting. The 10" Spectrum Modem 2U Rack Mount captures the common Spectrum shells in 2U (88.9 mm) of a 10-inch rack. That is not the mount being generous. These are larger, warmer boxes than a Surfboard, and forcing one into 1U would press its vents against a panel.

Because Spectrum hardware turns over, check the model on the sticker before assuming fit, and when Spectrum swaps your unit, check again. If Spectrum's gateway is running in router mode, get it into bridge mode before you rack it, so your own firewall does the actual work and the ISP box becomes a dumb media converter. A bridged gateway also runs cooler, which matters in an enclosed rack.

AT&T Fiber: the BGW320 and the gateway you can't remove

AT&T Fiber customers know the deal: the BGW320 (and its BGW210 predecessor) is a combined ONT and gateway, and AT&T requires it to stay in the path. There is no pure bridge mode, only IP Passthrough. Since you can't get rid of it, the next best thing is to mount it properly. The AT&T/Arris BGW 320 ONT Router 19" Rack Mount 3U w/Keystone gives the BGW320 a full 3U (133.35 mm) in a 19-inch rack with keystone openings alongside, and 3U is not generous: it's what the unit actually needs. The BGW320 is a tall device that runs warm under load, and its venting assumes vertical orientation with free air above.

The keystone slots earn their place here. Terminating the LAN handoff at a keystone jack on the mount face means the passthrough cable to your firewall is a short, replaceable patch lead between two fixed points, and when AT&T eventually swaps the gateway, your structured cabling doesn't change.

Configuration note: put the BGW320 in IP Passthrough pointed at your firewall's MAC, disable its Wi-Fi radios, and let it do nothing but terminate the PON. Once a gateway is bridged or in passthrough it has exactly two connections, the service drop in and one Ethernet out, so it belongs at whichever end of the rack the drop enters. If your carrier will not let you bridge (some keep their gateway in the path for voice or TV service), its radios stay live, so do not bury it at the bottom of a sealed metal cabinet.

Heat, or: the shelf assumption

Every device in this post is passively cooled, and every one of them was thermally validated by its manufacturer sitting alone on a shelf. Racks change the math. Three rules keep you out of trouble. Keep the designed orientation: if the device vents top-to-bottom as a vertical tower, a purpose-built mount keeps that convection path working, where a flat universal shelf often does not. Leave the vent faces open: don't butt a solid panel or another device's exhaust against them. And in an enclosed cabinet, give the ISP box a slot away from the genuinely hot hardware; a mini PC dumping 40 W of exhaust below a plastic modem shell will age it fast.

If you want a sign to watch, DOCSIS modems that run hot tend to drop and re-range on the cable plant, which looks to you like the internet cutting out for thirty seconds a couple of times an evening. A cheap stick-on thermometer or a glance at the modem's logs after the first warm week is worth the minute it takes.

Grounding, surges, and the UPS

Coax enters your building from outside, which makes it a path for surge energy that the Ethernet inside your rack is not. The coax drop should be bonded to the building's grounding system at the point of entry. That is a code requirement and the installer's job, but it is also the thing most likely to have been skipped on an older install. Before you spend an afternoon on cable management, look at where the drop enters and confirm there is a ground block bonded back to the electrical service ground. If there is not, that is a call to your ISP or an electrician.

Fiber carries no surge path, one of the quiet advantages of an ONT handoff, though the ONT's power supply still wants protection. And if your rack has a UPS, put the ISP box on it. A firewall that rides through a power blip is not much use if the modem behind it cold-boots and spends ninety seconds re-ranging.

In a small-business closet

The same hardware shows up in client network closets, where the reasons to rack it are operational rather than aesthetic. Someone else will service this closet, maybe another tech, maybe you in two years having forgotten every decision you made today. A mounted, labeled modem is one any tech can service without a phone call. A few habits pay for themselves:

• Label the circuit on the front. The ISP account number, the circuit ID, and the support phone number, facing out. When the circuit drops, the person in the closet should not have to log into anything to know who to call.
• Keep the modem at the edge of the rack with slack in both the service drop and the Ethernet, so it can slide forward for a swap without disconnecting anything upstream.
• Photograph the finished closet. A dated photo in the client's documentation is worth an hour of description, and when the ISP swaps hardware and leaves a mess, it shows whose mess it is.
• Know where the demarc is. On fiber, the ONT is generally the boundary between the carrier's responsibility and yours. Knowing that line keeps a downtime call from turning into an argument about whose fault it is.

The lease and the truck roll

Two boring practicalities. If you rent, everything above works without drilling into structure: the mounts hold the device in the rack, and the rack itself can be freestanding. Keep the ISP's original feet and stand in a labeled bag; when you move out or the ISP swaps hardware, you hand back a stock unit. Second, when a tech visits, a mount that presents the ports and status LEDs at the rack face makes the visit short. Techs care that they can see sync lights and reach connectors, and a rack-mounted modem with visible LEDs is an easier service call than one buried on a closet floor.

Wrap-up

The ISP box is the one device you didn't choose, but it's also the root of the whole network, and it deserves better than the floor. Match a mount to the exact model: the Surfboard towers and S33/S34 slot into 1U of a 10-inch rack, Calix and Nokia ONTs need barely any space at all, Spectrum's shells want an honest 2U, and AT&T's BGW320 takes a real 3U in a 19-inch rack. Respect the coax loop and the fiber bend radius, check the ground, keep the vents clear, and bridge or passthrough the gateway so it does as little as possible. Then the least glamorous device in the rack becomes the one you never think about again.
