Rack-Mount Patch Panels with Keystone Breakouts (Homelab)

A keystone patch panel is the one patch-panel-shaped object a homelab actually benefits from owning. The fixed punch-down panel — twenty-four ports of factory-wired Cat6 that a typical homelab fills maybe a fifth of — is office riser gear cosplaying as homelab gear, and it spends most of its life as an expensive blanking panel. A keystone panel is the opposite animal: an empty 1U frame with a row of rectangular openings, and you snap in only the jacks you need, in only the types you need, terminating each one as a run actually shows up. This post is about when that panel earns its rack unit, how to populate it without overbuying, and how to wire and label it so it still makes sense to you a year from now.

The premise worth stating up front is that a homelab's cabling needs are lumpy and slow-growing. A fixed panel asks you to commit to a port count and a cable category on day one; a keystone panel lets you add a jack the week the cable appears, and lets that jack be whatever that cable happens to be — Cat6, Cat6A, or a coupler — without the rest of the panel caring.

What a keystone patch panel actually is

Strip away the marketing and a keystone panel is a piece of sheet plastic or metal, 1U tall, with a row of identical rectangular cutouts. Each cutout accepts a keystone module: the industry-standard snap-in footprint, roughly 14.5 by 16 mm, that has been the interconnect standard for structured cabling for decades. The panel itself is dumb. It does no switching, carries no power, and has no electronics. Its entire job is to hold jacks at the front of the rack in a straight, labeled line, and to give the cable behind each jack a fixed anchor so it stops getting flexed.

That dumbness is the feature. Because the panel only holds standard keystone openings, every jack decision is deferred to the moment you make a run. A punch-down Cat6 jack, a tool-less Cat6A jack, a feed-through RJ45 coupler for a cable you do not want to re-terminate, even the occasional non-Ethernet keystone like an F-connector for a coax drop — they all snap into the same opening. The panel does not know or care which you chose, and you can mix all of them in the same 1U.

Contrast that with a fixed panel, where the jacks are permanent, all one category, and all present whether you use them or not. On a fixed 24-port Cat6 panel, if a single run needs Cat6A you are out of luck, and the nineteen ports you are not using are still there collecting dust and taking up the space behind the panel that your airflow wanted.

Why keystone wins in a homelab specifically

The case for keystone over a fixed panel gets stronger the smaller and more improvised your cabling is, which describes almost every homelab. Three advantages carry it.

The first is pay-as-you-grow population. You buy the panel once and buy jacks a handful at a time, terminating each as its run materializes. A four-run homelab runs four jacks and leaves the rest of the openings empty (or blanked); a year later when two more drops get pulled, you add two jacks. There is no forklift moment where you swap an outgrown panel — you only ever paid for the openings you filled.

The second is mixed media in one row. Homelab cabling is rarely uniform: a couple of Cat6 runs to older drops, a Cat6A run to the spot where a 10G camera or multi-gig AP will land someday, and at least one pre-made cable you would rather couple than cut. Keystone lets all of those live side by side; a fixed panel forces a single category and punch-down-only termination on everything.

The third is repairability. When you botch a punch-down — and you will botch one — you pop the single offending keystone out and redo that jack, not the whole panel. A worn jack is a one-dollar replacement, not a panel swap. The keystone standard has outlived several generations of network gear precisely because the failure unit is one small replaceable module.

The 12-port, 1U bracket in a 10-inch rack

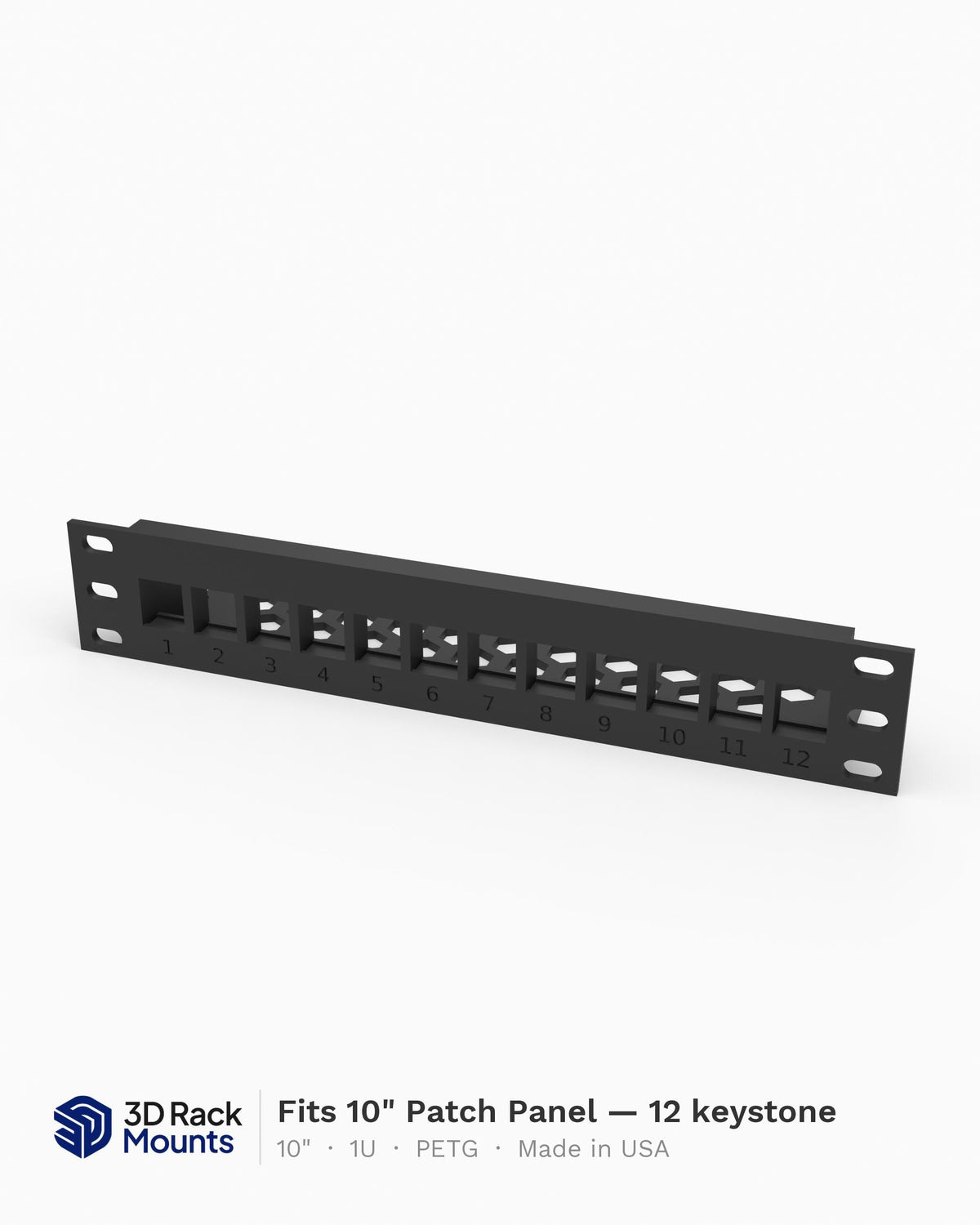

For a 10-inch homelab rack, the panel that fits this whole argument is the 10" Rack Mount Patch Panel - 12 Keystone. It is a single rack unit — 44.45 mm tall, per EIA-310-D, like every other 1U — carrying a dense single row of twelve keystone openings across the roughly 254 mm face of a 10-inch rail. Twelve is a deliberately homelab-shaped number: enough breakout positions that you will not run out during the normal life of a small rack, few enough that the panel stays in the compact 10-inch format instead of forcing you up to a 19-inch cabinet.

Why twelve and not twenty-four? Because port count on a keystone panel should track how many cables genuinely leave or enter the cabinet, and in a homelab that number is small. Count your real terminations: the wall runs, the drops to other rooms, the uplink out of the rack. Most homelabs land somewhere between four and eight, which leaves the 12-keystone panel with comfortable headroom rather than a wall of empty ports. If you are consistently filling all twelve and wanting more, that is a real signal — more on that at the end — but most racks never get there.

The one dimension worth a sanity check before you buy is depth behind the panel. Twelve jacks in a 10-inch-wide U is a tight row, and Cat6A keystones in particular are chunky — larger jack bodies, stiffer and fatter cable than Cat6. Make sure the space behind the panel can absorb the service loop of a dozen stiff cables without crushing anyone's bend radius. In a shallow 10-inch cabinet this is the constraint that bites, not the width.

Populating it: choosing the right jacks

Once the 12-keystone panel is mounted, the interesting decisions are all about which modules go into it. Three choices come up per jack.

Punch-down versus tool-less. A traditional punch-down keystone terminates each conductor into an IDC (insulation-displacement contact) slot with a punch-down tool — the 110 or Krone blade you already own if you have done any structured cabling. Tool-less jacks trade a couple of dollars per jack for not needing the tool and for a slightly faster termination. For a homelab doing a handful of jacks, either is fine; punch-down is cheaper and, once you have the rhythm, not meaningfully slower.

Category. Match the jack to the cable and the ambition, not to the rest of the panel. A Cat6 jack on a Cat6 run to a gigabit drop is correct and cheaper. Reserve Cat6A jacks for the runs where you actually intend to push multi-gig or 10G someday — they cost more, they are bulkier behind the panel, and putting one on a run that will never exceed a gigabit buys you nothing but tighter cable management. Mixing categories across the twelve ports is expected, not a compromise.

Pass-through couplers. When a cable arrives with factory-molded RJ45 ends — a pre-made patch cable pressed into a room-to-room run, say — you do not have to cut and punch it. A feed-through keystone (a female-to-female RJ45 coupler in keystone form) lets you land it at the panel by plugging it in from behind. It is a small electrical compromise versus a proper punch-down, so keep couplers for low-stakes runs and punch down the ones that matter — but a coupler or two saves you from re-terminating a perfectly good cable.

Termination details that decide whether it lasts

Three habits separate a panel that ages well from one you rewire in anger later. First, respect bend radius: the working rule for twisted-pair is a bend no tighter than four times the cable's outer diameter, which is on the order of an inch for Cat6 and a little more for the fatter Cat6A. The service loop behind a dense 12-port panel is exactly where people violate this by cramming, and a kinked cable behind the jack undoes the performance you paid for in cable.

Second, pick one wiring scheme and never deviate. T568A and T568B differ only in which pair lands on which pins, and either works, but a panel with some jacks punched to A and some to B is a debugging trap that will cost someone an afternoon. In the US, T568B is the common default; pick it, write it on the panel, and punch every jack the same way.

Third, keep the in-wall solid-core cable terminated once and never patched. Solid-core conductors fatigue and break when repeatedly flexed; the whole point of landing them on the panel is that they get punched down once and then only ever meet a stranded patch cable on the front face. If you find yourself unplugging and replugging a keystone that has solid-core behind it, you are flexing the run itself — move the churn to the patch side.

Wiring and labeling patterns that survive

The physical discipline is simple and worth stating because it is what keeps the panel legible. Behind the panel: solid-core wall runs punched down once, dressed with a small service loop, strain-relieved so the weight of the bundle never hangs on the IDC contacts. In front of the panel: short stranded patch cables jumping from each populated keystone to a switch port. Everything that enters or leaves the cabinet lands on the front face of the panel, and every change you make for the rest of the rack's life happens with a front-side patch cable you can flex all day.

Labeling is the part homelabbers skip and regret. You do not need the full formality of the TIA-606 labeling standard that an MSP would impose on a client site, but you do need the two things that standard is really about: a unique identifier per port, and a record of what that identifier means. In practice, number the twelve keystone positions, label each populated jack with its number and destination ("3 — office wall"), and keep a one-line-per-port note somewhere you will find it — a text file, a photo of the panel, a card taped inside the cabinet door. The version of you troubleshooting at 11 p.m. six months from now is the customer for that label, and that person has forgotten everything.

Leave the unused openings blanked rather than gaping. Blank keystone inserts are pennies, they keep dust out of the empty positions, and on a 12-port panel that starts life half-populated they make the difference between a panel that looks intentional and one that looks abandoned.

Where this panel fits, and where it stops making sense

In the rack, the 12-keystone panel sits at the top of the cabling section, feeds down to a switch a U or two below, and becomes the fixed reference point the rest of the rack patches against. Pair it with whatever switch your port count and PoE needs demand; the panel is passive and switch-agnostic, handing you twelve labeled front-of-rack landings to jump from. And because people ask: PoE passes straight through a properly punched keystone — the jack lands all eight conductors, so PoE, PoE+, and PoE++ ride through fine. The panel is never the power bottleneck; your switch budget is.

The pattern has a floor and a ceiling. Below the floor — two or three runs, plus a desire to collapse patching and switching into one slot — a dedicated panel is more than you need, and a small switch with a couple of built-in keystone breakouts does the job in one U. Above the ceiling — a dozen-plus in-wall solid-core runs — you have graduated to a fixed, higher-count panel and probably a 19-inch rack to hang it in, where the terminate-once economics finally win.

Between those two is a wide band that covers most homelabs for most of their life, and in that band the keystone panel is the right tool: modular enough to grow into, honest about only charging you for the jacks you populate, and repairable one module at a time when you inevitably need to.

Wrap-up

A homelab does not need the 24-port punch-down panel it thinks a "real" rack has; it needs a modular frame that holds a handful of the right jacks in a labeled row and lets that set grow one keystone at a time. The 10" Rack Mount Patch Panel - 12 Keystone is that frame for a 10-inch rack — twelve openings, 1U, populated on your schedule with whatever mix of Cat6, Cat6A, and couplers your runs actually call for.

Buy jacks a few at a time, match each to its cable rather than to the panel, punch everything to one wiring scheme, label the ports the day you terminate them, and blank the rest. Do that and the panel becomes the one fixed, legible thing in the rack that you never have to think about again — which is exactly what a patch panel is supposed to be.
