Minisforum MS-01, MS-A2, MS-R1: Mini Workstation in a 10-Inch Rack

The Minisforum MS-01 did something unusual for a mini PC: it talked a lot of homelabbers out of buying used enterprise servers. Dual 10G SFP+, a real PCIe slot, three NVMe drives, and a high-wattage mobile CPU in a box the size of a thick paperback is a specification sheet that reads like a 1U server someone shrank in the wash. The MS-A2 followed with AMD silicon and more cores, and the MS-R1 rounds out the family as the newest sibling. All three share one inconvenient trait for anyone who wants a tidy rack: they are a little too tall to lie down in a 1U slot, and a little too capable to leave sitting on a shelf.

This is a guide to putting them in a rack properly: what the machines are, which ones share a mount (and which one does not), why they land at 2U instead of 1U, how the networking and the heat shape your build, and the mounting details a spec sheet never mentions.

The mount for this build:

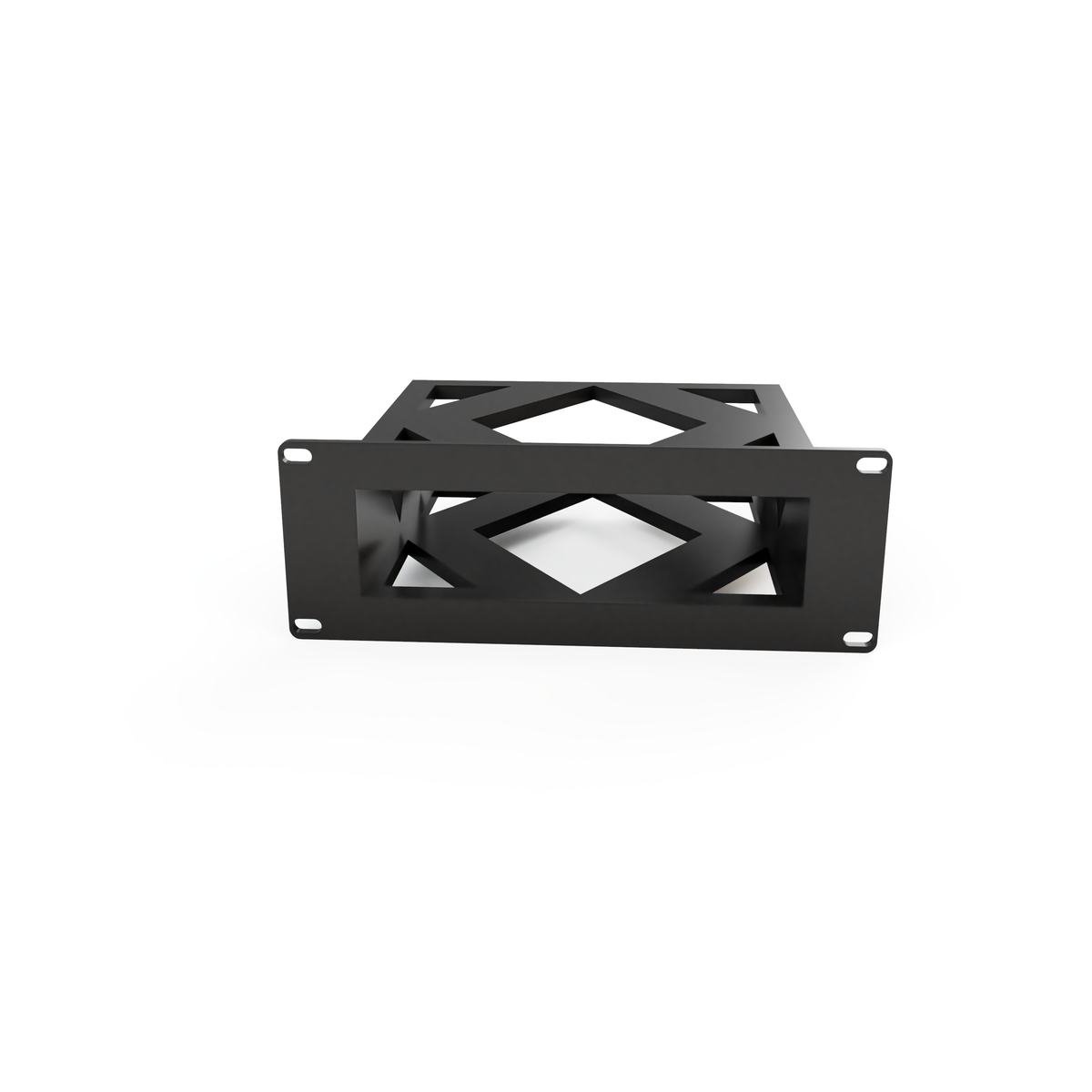

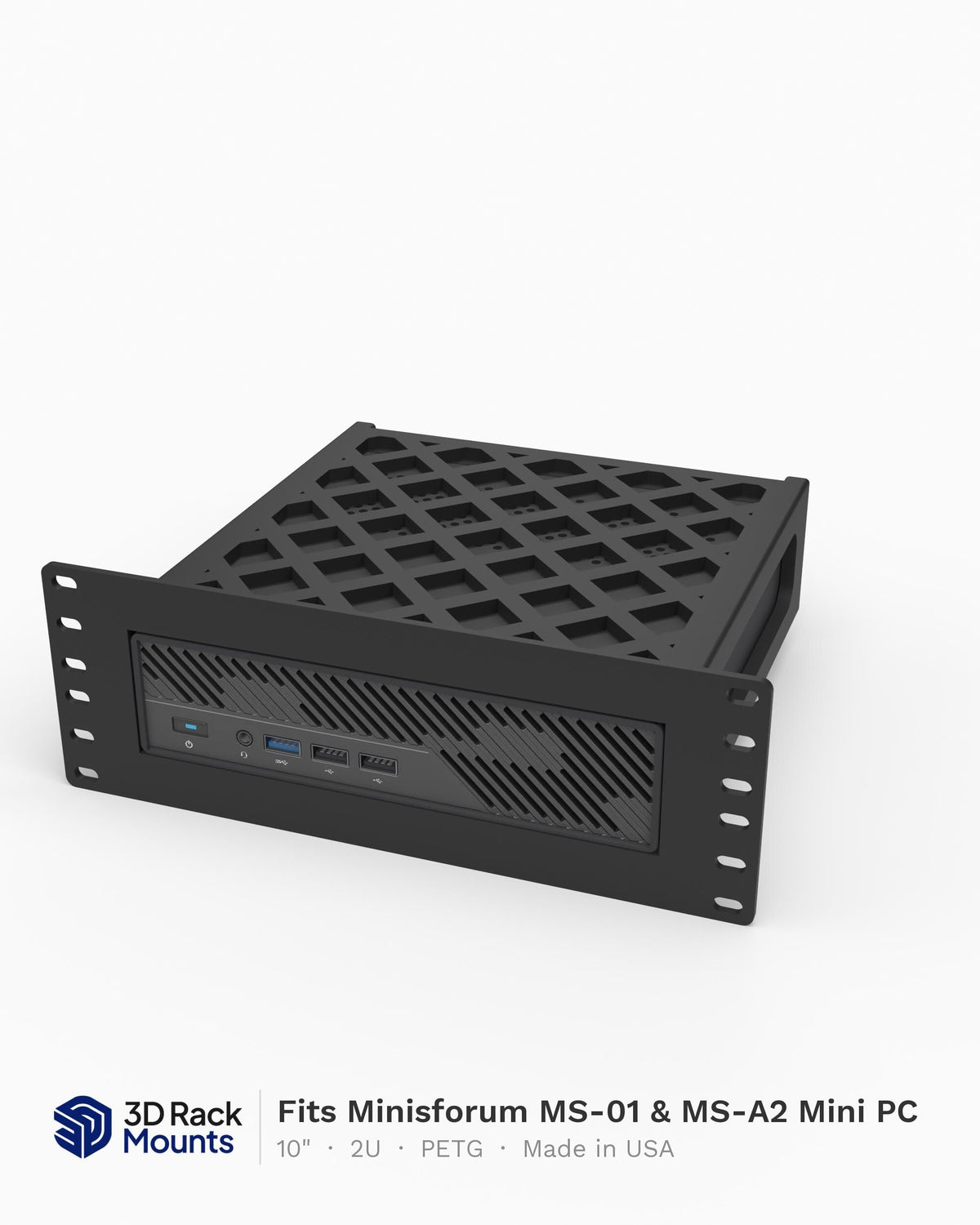

10" Minisforum MS-01, MS-A2 & MS-R1 Mini Rack Mount - 2U

What the MS-01, MS-A2, and MS-R1 actually are

Minisforum's MS line is best understood as mini workstations rather than mini PCs. Where a typical mini PC solders down a low-power laptop chip and gives you a couple of USB ports, the MS series carries a high-wattage CPU, multiple NVMe slots, an expansion slot, and networking that belongs on a rack switch.

The MS-01 is the one that started the trend. It pairs an Intel Core H-series processor (the i9-13900H and i5-12600H were the common configurations) with two SFP+ cages for 10-gigabit networking, two 2.5-gigabit copper ports, USB4, and three M.2 NVMe slots, one of which doubles as a U.2 connector. It also carries a physical PCIe slot, which is the feature that pulls it out of mini-PC territory entirely: you can seat a low-profile card in it. In a homelab that means a machine that can be a Proxmox node, a virtualized firewall with real 10G interfaces, or a small all-flash storage box, without the power draw or the noise of a rack server.

The MS-A2 keeps the same idea and swaps the engine. It runs an AMD Ryzen processor with substantially more cores than the Intel part, which makes it the pick when you want raw compute for virtualization or compilation rather than the MS-01's networking-heavy balance. It keeps the dual SFP+, the 2.5GbE pair and the expansion slot, so the external story is familiar even though the silicon inside is a different world.

The MS-R1 is the newest of the three, and the reason a bracket built for this family lists all three model numbers. What matters for mounting is that it shares the external chassis footprint of its siblings, so a single mount holds any of them. Whatever you populate the rack with today, the same 10" Minisforum MS-01, MS-A2 & MS-R1 Mini Rack Mount - 2U carries it, and a mixed set racks as a matched row.

The MS-A1 is the odd one out

There is a fourth MS machine, and it is the one that catches people who buy on model name. The MS-A1 traded the SFP+ cages for an AM5 socket. It takes a desktop Ryzen, which means you choose your own thermal envelope, and networking drops to dual 2.5GbE. It is a good machine with a real upgrade path, but it does not share the MS-01 chassis.

From a rack standpoint the grouping is simple: the MS-01, MS-A2 and MS-R1 share a footprint and share a mount; the MS-A1 has its own. That is why the MS-A1 gets a separate part, the 19" Minisforum MS-A1 Rack Mount - 2U Height. Check which group your machine is in before you order, because a mount for the other group is close, and close does not close.

The real decision between them is whether you need 10G optics on the board. If your switch has SFP+ ports and you want a fast uplink to a NAS, the MS-01 and MS-A2 give you two of them without spending the one PCIe slot on a network card. If your network is 2.5GbE end to end, which for most homelabs it is, the SFP+ cages are two ports you will never populate, and the MS-A1's socket gives you a machine you can put a better CPU into in three years.

Why they are a 2U device, not 1U

Here is the reason these do not go in a 1U slot, and it is worth understanding rather than taking on faith. A 1U opening under EIA-310-D is 44.45 mm tall. The MS chassis is roughly 48 mm tall on its shortest dimension, a hair over an inch and a half, which already exceeds a 1U opening before you account for the mount itself, for airflow, or for the rubber feet. So even laid on its broadest face, the machine cannot fit the 44.45 mm that 1U gives you.

That is why the mount is a 2U part. Two rack units give you 88.9 mm of vertical opening, and inside that the chassis sits with room for the bracket structure and for air to move around it. It is not padding for its own sake: the geometry genuinely does not close in 1U. If you have been trying to work out whether you can squeeze one of these into a single rack line, this is your answer. You cannot, and the Minisforum MS-01 / MS-A2 / MS-R1 2U mount is sized to the reality rather than to the wish.

The upside of spending 2U is that these machines run hot enough to want the breathing room anyway, which lands us on the two things that actually decide whether this build is any good: networking and heat.

The networking is the whole point

You do not buy an MS-01 for the CPU. You buy it because it has two SFP+ 10G interfaces on a device that draws a fraction of what a 10G-equipped server would, and that changes what a small rack can do.

• Dual 10G SFP+. Two SFP+ cages mean you can run a 10G uplink to your switch and still have a second 10G port for storage traffic, a direct link to a NAS, or a LAG. In a homelab with a single 10G-capable switch, an MS-01 is often the first device that actually saturates it.
• Dual 2.5GbE. The two copper 2.5-gigabit ports are separate from the SFP+ cages, so a virtualized router build can put WAN and LAN on copper and keep the SFP+ pair for a fast internal path. That is four physical NICs before you touch the expansion slot.
• The PCIe slot. A low-profile expansion slot lets you add whatever the four onboard NICs do not cover: more networking, an HBA, or an accelerator. It is the single feature that most separates the MS family from every other box this size.

The practical consequence for your rack is cabling. A machine with two SFP+ direct-attach cables, two Ethernet runs, and a power lead has five stiff cables leaving its rear face, and SFP+ DAC in particular has a bend radius that does not forgive a cramped rack. Mounting the unit so that rear face is presented at the side you patch from is not optional here; it is the difference between a rack you can service and a knot you fight. A mount like the 10" Minisforum MS-01, MS-A2 & MS-R1 mini rack mount puts the busy I/O face where you can reach it, which matters more on this device than on almost anything else you will rack.

One more note on SFP+ modules: 10GBASE-T copper modules run hot, often several watts each, right at the back of the chassis. In a rack, prefer DAC or fiber over copper SFP+ where you have the choice, purely on thermal grounds.

Thermal headroom in a rack

The MS series runs hot by mini-PC standards, and it does so on purpose. A high-wattage CPU under sustained virtualization load, two 10G transceivers that are themselves warm, and three NVMe drives in a small volume add up to a device that moves real heat through a small fan. That is fine on a desk with open air on every side. In a rack it needs thought.

The good news is that 2U of opening gives the machine more room than its own chassis height, so it is not sealed against a neighbor the way a 1U-crammed device would be. The things to watch:

• Keep the bottom intake clear. The MS-01 pulls air in low and exhausts out the rear. Sitting it flat on a solid shelf blocks that intake, and it is the most common way people make an MS-01 run hot and then blame the CPU. If your mount does not hold the chassis off the tray, leave a vented unit below it.
• Do not stack heat directly above or below it. Leave the slot above the MS breathing to room air, or put something passive there. A NAS or a PoE switch directly underneath vents its heat straight into the MS intake.
• Mind the SFP+ transceivers. Optical and active-copper 10G modules add heat right at the rear of the unit. They are rated for it, but a rack with no airflow lets that heat pool exactly where the ports live. This is a point in favor of an open-front mount over a sealed cabinet.
• Watch the cabinet, not just the box. A sealed cabinet with an MS-class machine inside will climb in temperature until the fan ramps and the quiet you wanted evaporates. A mesh or louvered door and a single low-speed exhaust fan high in the cabinet do more for sustained temperatures than anything you can adjust on the machine itself.
• On an MS-A1, set a power limit. Because the MS-A1 takes a socketed desktop Ryzen, it is the one where you choose the heat. A high-wattage chip in a 48 mm chassis in an enclosed rack asks a lot of a small cooler. A package power limit around 65 W in the BIOS costs very little real-world throughput and gives you a machine that does not thermally oscillate.

None of this is exotic. It is the discipline any dense device wants, just with more at stake, because the MS packs more watts into less space than the mini PCs it otherwise resembles.

Mounting them cleanly: the details the spec sheet omits

Two things about mounting these are worth knowing before you order anything, because both have caught people out.

The first is the rubber feet. The MS chassis ships with rubber feet on its base, and those feet have to come off for the machine to seat correctly in the bracket. This is not a defect in the mount; it is the few millimeters of foot height standing between the chassis and a flush fit. Peel or unscrew them before you mount, keep them in a labeled bag in case the machine ever goes back on a desk, and the unit drops into the Minisforum 2U rack mount the way it should. It is the single most common first-time surprise with this build.

The second is material. These brackets are printed in PETG rather than a lower-temperature filament like PLA, specifically because the device runs warm and a rack is a warm place to begin with. PETG holds its shape at the sustained temperatures near a hard-working MS far better than PLA, which can soften and sag in exactly the conditions this build creates. It is a deliberate material choice, and it is the reason a plastic bracket is a reasonable thing to trust a several-hundred-dollar machine to.

A few more practical notes:

• Rack screws are not included. The mount holds the machine; fastening the mount to your rails is on you. A 10-inch rack typically wants M6, or whatever thread your particular cabinet uses, so have the right screws and cage nuts on hand before mounting day.
• Plan the power brick. Like most mini workstations, the MS runs from an external power supply, and that brick needs a home behind the rack. Decide where it lives before you mount, so it is not left swinging on its own cable.
• Do everything inside the chassis first. RAM, every NVMe slot, the PCIe card and BIOS settings should all happen on the bench, followed by a burn-in under sustained load. Getting back into the chassis means unracking it, and you will not want to do that twice.

Get those right (feet off, correct screws, a plan for the brick, the chassis fully populated) and the 10" Minisforum MS-01, MS-A2 & MS-R1 2U mount turns an awkwardly hot, cable-heavy box into something that looks like it was meant to be in the rack.

10-inch or 19-inch

The MS chassis is roughly 196 mm wide, and that number decides it. A 10-inch rack gives a single MS machine a home with a small margin on each side, which is exactly what the 10-inch mount is built around, and it suits a desktop 6U or 8U mini cabinet.

A 19-inch rack is wide enough for two MS machines side by side in the same 2U. That is the layout a lot of people end up wanting once they notice that one virtualization host means the whole household now depends on one machine. If a two-node cluster is even vaguely in your future, the 19" Minisforum MS-01, MS-A2 & MS-R1 Rack Mount - 2U saves you redoing the mount later.

Which of the three to buy

The three models overlap enough that the 10-inch Minisforum 2U bracket does not care which you choose, but your workload should.

• MS-01 is the networking specialist. If your reason for buying is the dual SFP+ 10G and the PCIe slot (a virtualized firewall, a fast storage node, anything where interfaces matter more than core count) the MS-01 is still the reference design, and the used and discounted supply is deep.
• MS-A2 is the compute pick. The AMD core count pulls ahead when the job is packing VMs and containers, or anything that scales with threads, and it keeps the fast networking and expansion slot, so you give up little to gain the cores.
• MS-R1 is the newest option, and worth checking current specifications against your needs at purchase time rather than assuming it maps exactly onto either sibling. What is certain is that it shares the footprint, so the bracket decision is already made for you.

Whichever you land on, the mounting story is identical, and a mixed fleet (an MS-01 doing firewall duty next to an MS-A2 doing compute) racks as a uniform row on identical brackets. If you want an MS-A1 instead, it gets its own mount, as above.

Wrap-up

The MS-01, MS-A2, and MS-R1 are what happens when a mini PC grows up into a workstation: real 10G networking, an expansion slot, and enough compute to run the services you used to need a server for, in a box that stays quiet enough for a room you live in. The price of all that capability is a chassis that runs warm and refuses to fit a 1U slot, which is just the geometry being honest with you.

Give it the 2U it needs, keep the intake clear, take the rubber feet off before you mount, and present the busy rear face where you can reach the cables. Do that and the machine that talked you out of a server racks neatly into the small one you actually wanted.
