Dell Optiplex Micro Homelab Build (3000/5000/7000 Series)

A three-node Proxmox cluster is the project that turns a homelab from a single box you are afraid to reboot into something that survives a reboot. You want quorum, you want to live-migrate a VM off a host before you patch it, and you want all of that without a rack of power-hungry servers or a fan wall that drowns out the room. Used Dell Optiplex Micros are one of the cleanest ways to get there. They are cheap, they are everywhere on the secondhand market, they take real desktop CPUs, and three of them fit across the front of a 10-inch rack in a single slot. This is a build guide for doing exactly that: what the Optiplex Micro is, why it clusters well, which generation to buy, how to mount three of them cleanly, and the BIOS settings that will waste your afternoon if nobody warns you.

What the Optiplex Micro actually is

Dell's Micro Form Factor, or MFF, is the smallest chassis in the Optiplex line. It is a slab roughly 36 mm thick and around 180 mm on its longer sides, which puts it in the same size class as a hardcover book standing on edge. Inside that volume Dell fits a socketed desktop CPU on an LGA board, two SODIMM slots for DDR4, an M.2 NVMe slot, a second M.2 for WLAN, and on most models an internal 2.5-inch SATA bay. It runs from an external power brick, typically a 65 W or 130 W barrel-jack adapter depending on the CPU it shipped with.

The detail that matters for a homelab is the socket. Unlike many mini PCs that solder the processor down, the Optiplex Micro uses a standard LGA socket and accepts Dell's supported list of 35 W and 65 W desktop chips. That means a cheap base unit can be upgraded later with a faster CPU pulled from another machine, and it means the silicon inside is a real desktop part rather than a thermally throttled laptop one. For a cluster you are going to lean on, that is the difference between a node that holds its clocks under sustained load and one that sags. It also means the chassis you rack today is one you can re-spec for years, which is why a generation-agnostic mount like the Dell Optiplex Mini 1U rack mount outlives any single CPU you put behind it.

Why three Micros make a good cluster

Proxmox wants an odd number of nodes so the cluster can hold quorum when one drops, and three is the smallest number that gives you that. Three Optiplex Micros, each with a couple of cores to spare and 32 to 64 GB of RAM, comfortably run a homelab's worth of services with one node's worth of headroom held in reserve for migrations and failures.

The case for the Micro specifically, over a tower or a single larger box, comes down to a few things:

• Power and noise. Each node idles in the single-digit-to-low-teens watts and runs from a small fan that, at idle, is close to silent. Three of them together draw less at idle than one mid-tower with a discrete GPU, and they make far less noise than a 1U server ever will.
• Real failure domains. Three physical machines mean you can pull the power on one and watch the cluster keep running. A single host with three VMs pretending to be a cluster teaches you the software but not the recovery, and recovery is the part worth practicing.
• Cheap, incremental scaling. Buy one to learn on, add two when you are ready to cluster, and upgrade RAM or the CPU on each as prices and needs change. The secondhand supply is deep enough that matching three identical units is easy.
• They mount in one rack slot. Three Micros stand side by side across a 10-inch rack opening, which means an entire cluster lives in a single 1U line instead of sprawling across a shelf. The 10" Dell Optiplex Mini Rack Mount Fits 3000/5000/7000 Micro Series - 1U is built around that exact layout.

None of this is glamorous, and that is the appeal. A Micro cluster is the boring, reliable substrate you run everything else on top of.

Which generation: 3000, 5000, or 7000

Dell splits the Optiplex Micro line into three tiers, and the same bracket fits all three because the chassis footprint is shared across them. The numbers map to position in the range, not to a single fixed spec, so what you actually want to read is the model and CPU generation behind the badge.

• 3000 series. The value tier. Fewer BIOS options, often shipped with lower-end T-series or i3/i5 parts, and sometimes a single populated SODIMM slot. Fine as a quorum node or a lightweight worker, and usually the cheapest way to add a third box. Check that the unit has both memory slots accessible and an M.2 slot, because the very lowest configs can be sparse.
• 5000 series. The middle ground, and often the sweet spot for a homelab. You generally get the fuller BIOS, both SODIMM slots, the M.2 NVMe slot, and the internal 2.5-inch bay. CPUs land in the i5 range, which is plenty for a node running a handful of VMs and containers.
• 7000 series. The top tier, with the best-supported CPU list, including 65 W i7 desktop parts on the generations that allow them, and the most complete feature set. If you want one strong node to pin your heavier VMs to, a 7000 is where to spend.

Across all three, the generation of the chip matters more than the tier number. A 7060, 7070, or 7080 Micro corresponds to 8th, 9th, and 10th-generation Intel respectively, and a newer generation buys you more cores, better power efficiency, and longer relevance. For a 2026 build, aim for the newest generation your budget allows rather than the highest tier number, and do not pay a premium for a 7000 badge wrapped around an old CPU. Whatever mix you land on, the Dell Optiplex Mini 10" rack mount holds the 3000, 5000, and 7000 chassis interchangeably, so a mixed-generation cluster still racks as a matched set.

RAM, storage, and the network reality

Each Micro takes two DDR4 SODIMMs. Most homelabbers land on 32 GB per node as the comfortable default and 64 GB as the ceiling the platform supports, which is generous for a three-node cluster. Memory is the first upgrade worth making, because RAM is what you run out of long before cores on a virtualization host.

Storage is where the Micro is a little tight, and it is worth planning before you buy. You have one M.2 NVMe slot and, on the 5000 and 7000 units, one internal 2.5-inch SATA bay. That is enough for a boot drive plus a data disk per node, which suits a Ceph-light or ZFS-replication setup where each node carries its own storage. What you do not have is room for a pile of disks, so if your plan involves serious shared storage, that lives on a separate NAS and the Micros are compute.

The other constraint is networking. The Optiplex Micro ships with a single onboard gigabit NIC. For a basic cluster that is workable, but the cluster, migration, and storage-replication traffic all share that one link, and gigabit is the ceiling. Some units offer an optional flex-bay module that can add a second port; otherwise a USB or M.2-based NIC is the homelab workaround. Plan your switch ports accordingly, and remember that whatever you uplink to needs to be reachable from the front of the rack, which is half the reason the cluster wants a proper bracket rather than a shelf. A mount like the 10" Dell Optiplex Mini Rack Mount keeps that single NIC and its uplink at the front where you can actually trace them.

Mounting three of them in a 10-inch rack

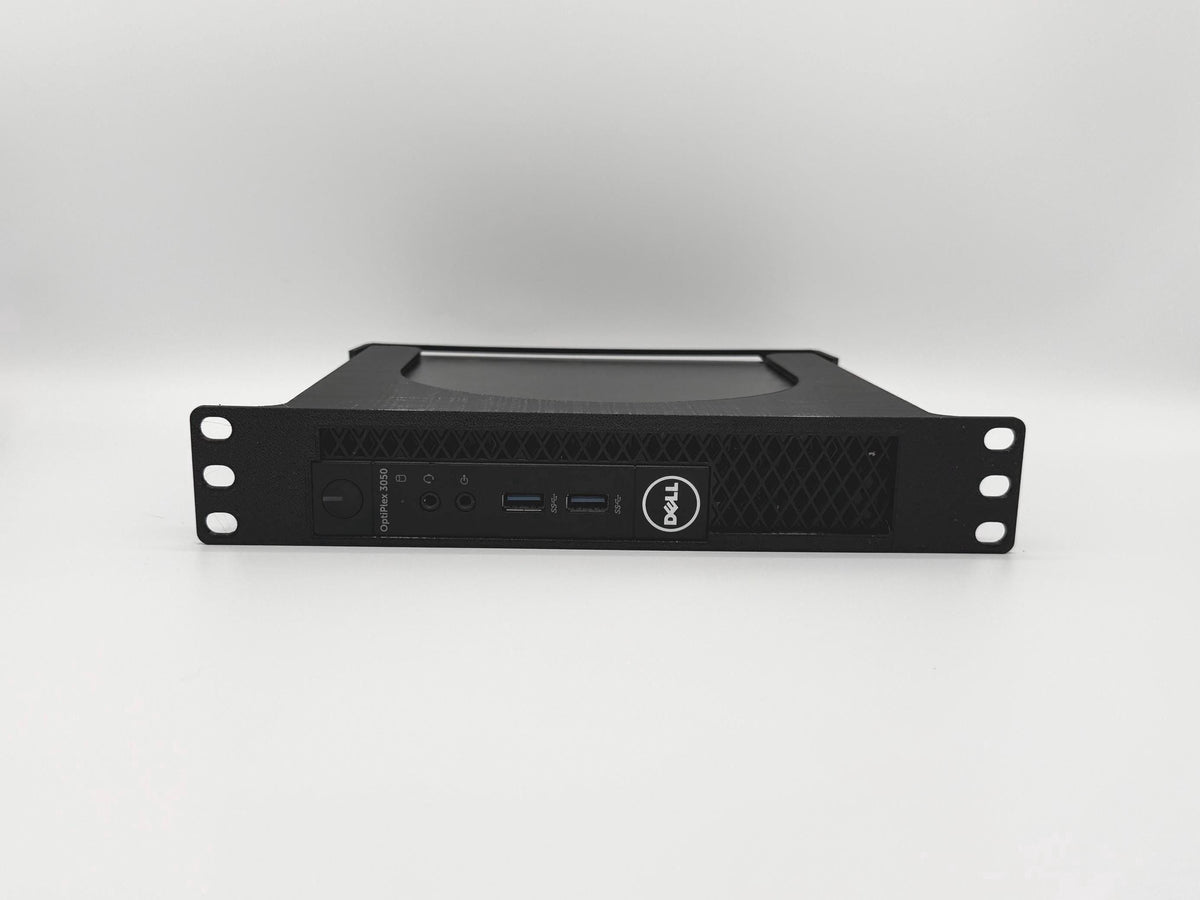

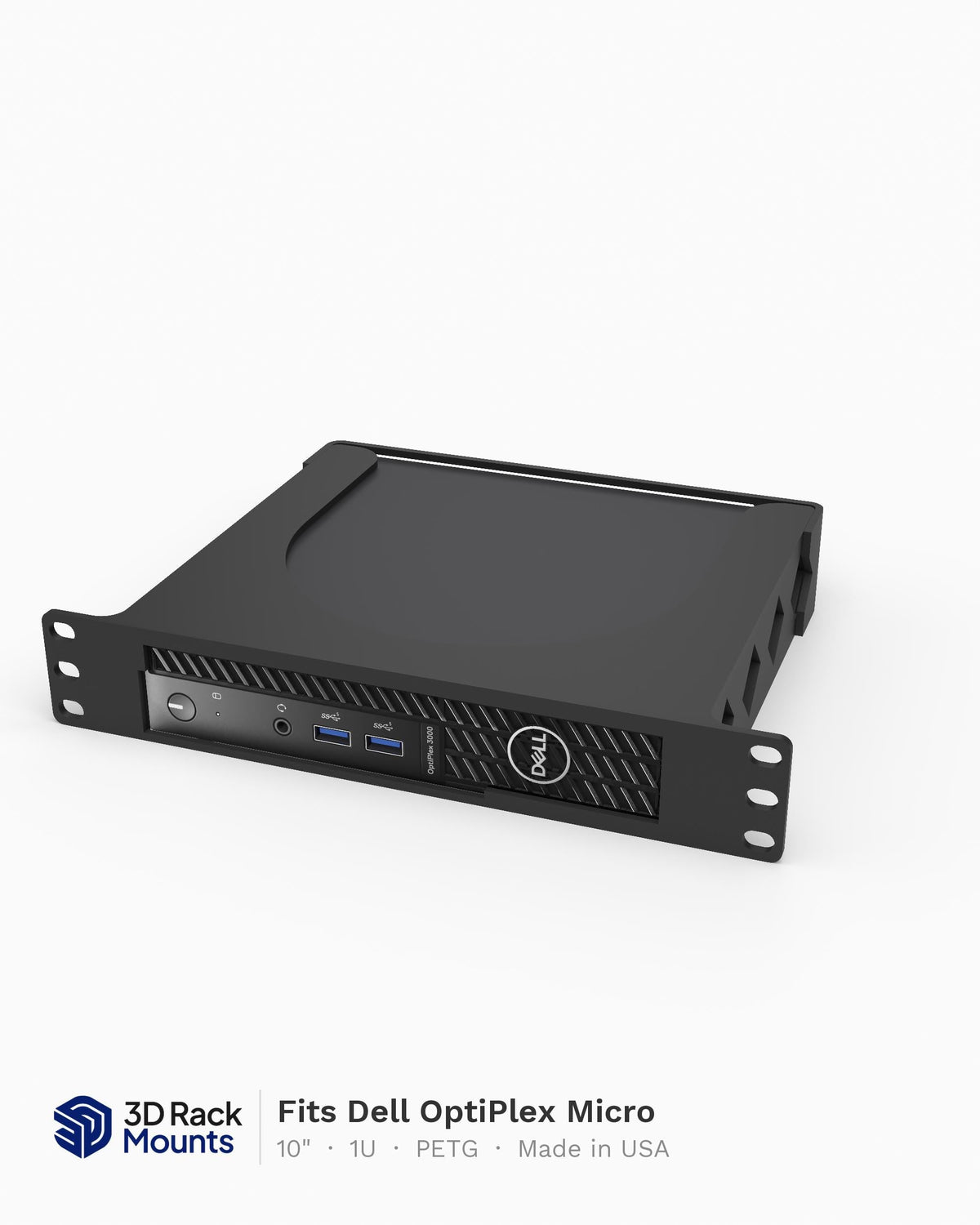

A 10-inch rack has an internal mounting width that lines up neatly with three Micros stood on their edges side by side, which is the whole trick. A 1U opening is 44.45 mm tall under the EIA-310-D standard, and the Micro at roughly 36 mm thick stands within that height when laid on its broad face, so a row of three sits flush at the front plane of a single 1U slot. The 10" Dell Optiplex Mini Rack Mount is designed around that geometry, carrying the cluster across one rack line with the rear I/O of each unit presented where you can reach it.

A few practical notes once you have the bracket:

• Orient for the ports you touch. The Micro puts its Ethernet, USB, video, and power on the rear face. Mount so that face lands at the side of the rack you patch from, because a cluster node you reconfigure often is one you do not want to unseat to reach a cable.
• Power bricks are the hidden bulk. Three Micros mean three barrel-jack adapters, and those bricks are larger than the computers. Plan where they live before you mount, whether that is a shelf below, a cable tray, or velcro to a rail, because three loose bricks behind the rack undo the tidiness the bracket bought you.
• Label the nodes at the front. In a cluster, node1, node2, and node3 look identical. A small label on each at the rack face saves you tracing a cable to work out which box you are about to power down. The Optiplex Mini 1U bracket presents all three faces in a row, so a label strip across the front is all it takes.

Cooling notes

The Optiplex Micro has a single blower-style fan and a small heatsink, tuned by Dell for a closed office desk, not a packed rack. Individually each node sheds heat fine. The thing to watch is three of them in a row, each exhausting warm air, with the units to either side breathing it back in. The fix is mundane: leave the front of the bracket open to room air rather than burying the row behind a solid panel, and do not stack a hot device directly above with no gap.

In a 10-inch cabinet the bigger risk is the cabinet, not the Micros. A sealed enclosure with three nodes, a switch, and no vent will climb in temperature until the fans ramp and the room you put the rack in to stay quiet stops being quiet. If the cluster lives in a closed cabinet, a single low-speed exhaust fan up high does more for the whole stack than fussing over any one node. The Micros themselves will hold their clocks as long as their intake air is not already warm, and standing them in a row on the Optiplex Mini 10" bracket rather than stacking them flat gives each node its own slice of front-panel air.

BIOS gotchas

A few Dell-specific settings reliably trip people up on the first cluster build, and all of them live in the BIOS:

• Virtualization is not always on. Intel VT-x and VT-d are the toggles Proxmox needs for full virtualization and PCI passthrough. On many used units they are disabled or partly disabled from whatever the previous owner did. Turn both on before you wonder why a VM will not start.
• AC Recovery / Power After Failure. By default a Micro may stay off after a power loss, which is the wrong behavior for a headless cluster node. Set it to power on, or stay on, so the node rejoins the cluster on its own after an outage.
• Deep Sleep and USB wake. Deep Sleep control can interfere with wake-on-LAN and remote power-on. If you plan to wake nodes over the network, disable Deep Sleep so the NIC stays alert.
• Secure Boot and boot order. Proxmox installs cleanly, but Secure Boot and a misremembered boot order will send you back to a black screen. Set the NVMe boot device explicitly and decide on Secure Boot before you install rather than after.

Set these once on each node, save a photo of the screens, and the next time you add or reimage a box you are not rediscovering them from scratch.

Wrap-up

Three used Optiplex Micros are about as much cluster as most homelabs ever need: socketed desktop CPUs, room for 32 to 64 GB of RAM each, real failure domains you can pull the plug on, and a power and noise budget that disappears into a quiet room. Buy the newest generation your budget reaches, settle the BIOS toggles before you install, and keep the storage and networking limits in view.

Then rack them like the unit they are. A row of three identical boxes balanced on a shelf is a cable-trace puzzle waiting to happen, and a single 1U bracket that lines all three up at the front of a 10-inch rack turns a pile of mini PCs into a cluster you can actually service.
