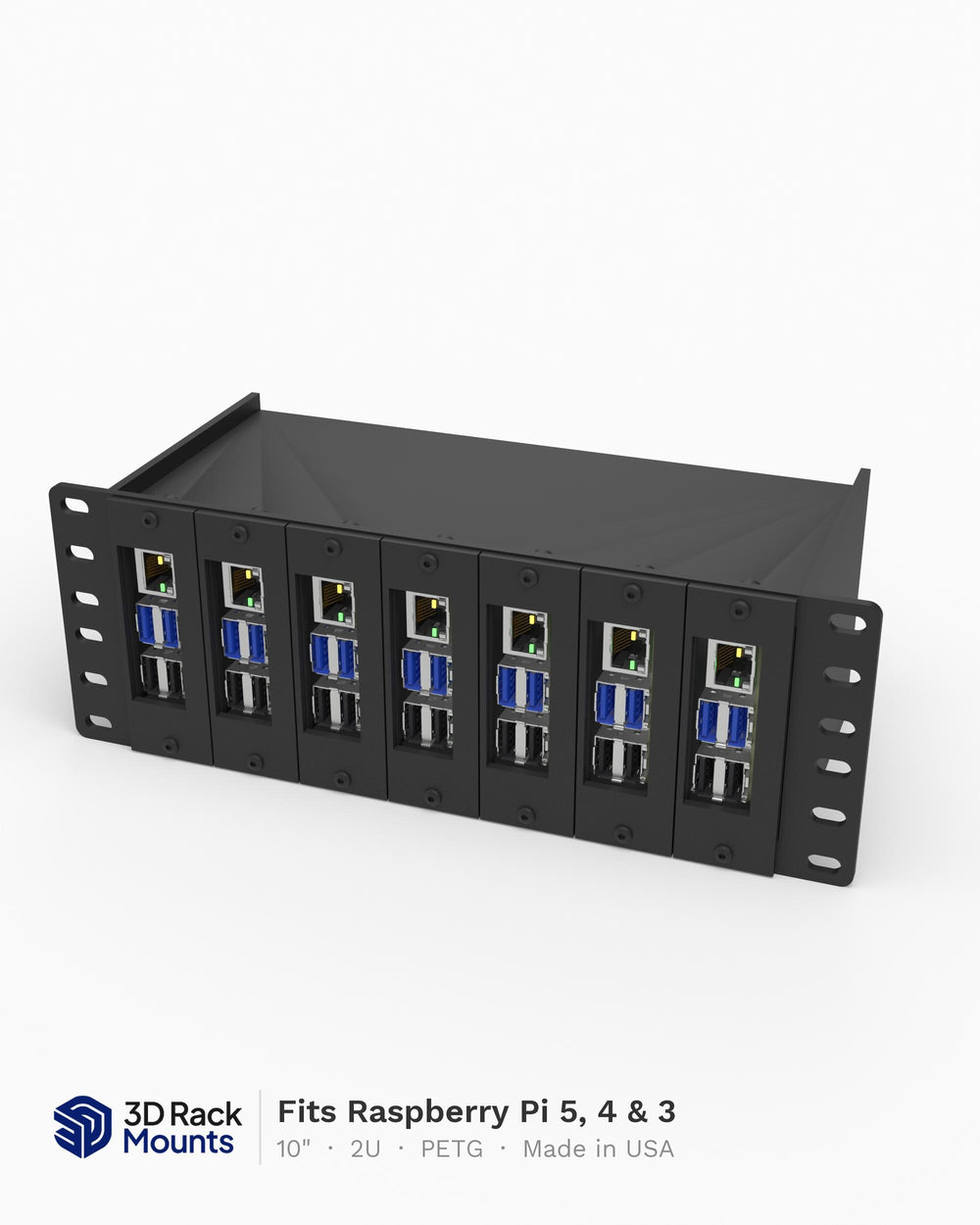

10" Raspberry Pi Vertical Sled Rack Mount - 1 to 7 Pis - 2U

Holds up to seven Raspberry Pis on edge in a 10" rack at 2U. Each Pi screws onto its own sled, the sled slides into the cage and two screws hold it in, so you can pull one Pi without touching the others.

CONFIGURATIONS

• Pick how many Pi sleds you want, 1 to 7. Any empty slots ship with blank sleds so the front looks finished.
• Extra Pi sleds and blank sleds are listed separately in my shop for when you add Pis later.

FITS

• Raspberry Pi 5
• Raspberry Pi 4 Model B
• Raspberry Pi 3 Model B and 3 Model B+

⚠️ Before you order and install:

• The power and HDMI ports face down through the open bottom of the cage, so power each Pi with a right-angle USB-C cable. A straight plug sticks out below the mount.
• PoE HATs don't fit at this spacing. Coolers and heatsinks do.

WHAT YOU GET

• The printed cage and seven sleds (your Pi sleds plus blanks for the rest), 4 M2.5 screws for each Pi and 2 M3 screws for each sled.
• Rack screws are not included. Use whatever your rack takes.

MATERIAL
PETG, not PLA. It holds its shape in a warm rack where PLA starts to soften.

A 19" version for 6 or 12 Pis is also listed in my shop. 💬 For any custom design requests please message me.
