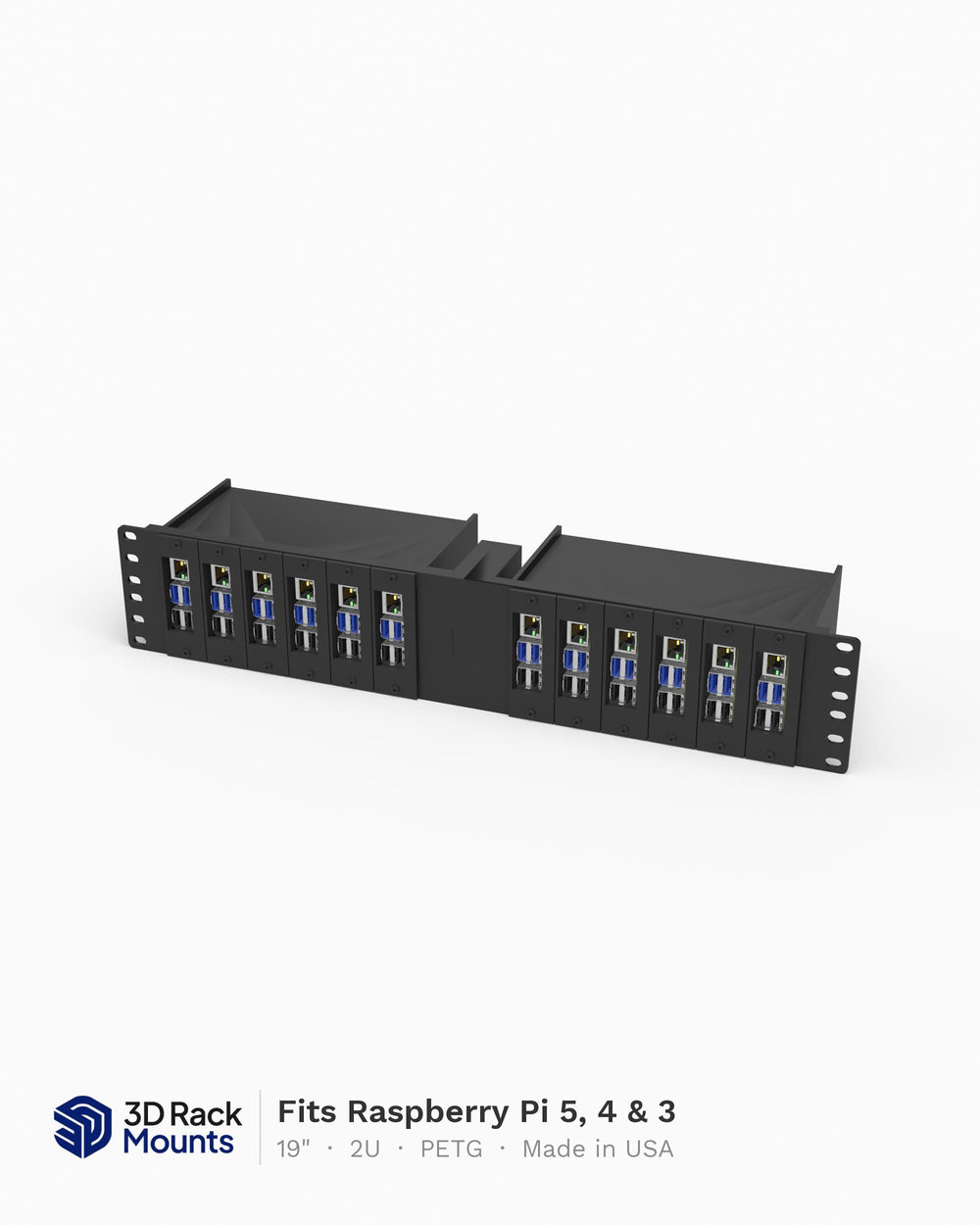

19" Raspberry Pi Vertical Sled Rack Mount - 6 or 12 Pis - 2U (Modular)

Holds 6 or 12 Raspberry Pis on edge in a 19" rack at 2U. Each Pi screws onto its own sled, the sled slides into the cage and two screws hold it in, so you can pull one Pi without touching the others.

CONFIGURATIONS

• 6 slots: one cage half plus a blank half. Fills the full 19" row. Pick the side of the rack and 1 to 6 Pi sleds.
• 12 slots: a cage on both halves. Pick 7 to 12 Pi sleds.
• Empty slots ship with blank sleds so the front looks finished. Extra Pi sleds and blank sleds are listed separately in my shop.

FITS

• Raspberry Pi 5
• Raspberry Pi 4 Model B
• Raspberry Pi 3 Model B and 3 Model B+

⚠️ Before you order and install:

• The power and HDMI ports face down through the open bottom of the cage, so power each Pi with a right-angle USB-C cable. A straight plug sticks out below the mount.
• PoE HATs don't fit at this spacing. Coolers and heatsinks do.

WHAT YOU GET

• The printed halves and the hardware to join them, your sleds (Pi sleds plus blanks for the rest), 4 M2.5 screws for each Pi and 2 M3 screws for each sled.
• Rack screws are not included. Use whatever your rack takes.

MODULAR
The halves are part of my Modular Series, so a half swaps for any other 2U Modular Series mount later. Pieces pair within the same U height.

MATERIAL
PETG, not PLA. It holds its shape in a warm rack where PLA starts to soften.

A 10" version for up to 7 Pis is also listed in my shop. 💬 For any custom design requests please message me.
