The two most common switches in a UniFi homelab are the USW-Lite-8 PoE and the USW-Lite-16 PoE. They sit at the bottom of the lineup, they fit in any cabinet, and they're cheap enough to be impulse buys. The question that comes up every week in homelab forums is straightforward: which one should I get? The honest answer depends on three things — port count today, PoE budget, and which size rack you've already committed to. This post walks through all three, then covers the bracket choice for both 10-inch and 19-inch racks.
What you're choosing between
Both switches are gigabit-only, fanless, managed switches in a 1U-tall metal box. The Lite-8 PoE has 8 RJ45 ports, four of which can deliver PoE+ (802.3at). The Lite-16 PoE has 16 RJ45 ports, eight of which can deliver PoE+. Both are silent under normal load. Both run a generation behind the rest of UniFi (no 2.5 GbE, no SFP), so they're best thought of as edge or downlink switches, not core gear.
The catch — and the thing most homelab buyers find out the wrong way — is the PoE budget. The Lite-8 PoE budgets 52 W of PoE across its four PoE ports. The Lite-16 PoE budgets 45 W of PoE across its eight PoE ports. The bigger switch has fewer watts to spread, even though it has twice as many PoE ports. That's not a typo; that's a hardware choice on Ubiquiti's part to keep the Lite line cheap and fanless. If you're powering more than two PoE+ access points, neither switch is the right answer, and you should be looking at the Pro Max 16 PoE or USW-Ultra-class hardware instead.
For typical homelab loads — two or three U6-Lite or AC-Lite APs, a doorbell camera, maybe a Flex Mini powered downstream — both switches are plausible. The choice comes down to port count and form factor.
The port-count math that catches people
A homelab grows. Every homelabber has the experience of "I'll just need 8 ports" and finding themselves at 12 within six months. A typical 10-inch homelab rack hits the following port count over a couple of years:
- 1 uplink to the gateway
- 1 to the wireless AP in the closet ceiling above the rack
- 1 to a downstairs AP
- 2 to a mini-PC cluster (a Proxmox node, a NAS)
- 1 to a TV streamer
- 1 to a printer
- 1 to a hardwired desktop
That's 8. The Lite-8 PoE is full at the day-zero install. Adding any new device — a new mini PC, a backup NAS, a cluster expansion — means buying a downstream switch or replacing the Lite-8 entirely.
The Lite-16 PoE gives you doubling room, which is worth real money. Replacing a switch is a 30-minute job during which the network is down; planning around the eventual replacement is annoying; the price gap between Lite-8 and Lite-16 is small enough (typically about $50 USD as of 2026) that the larger switch usually pays for itself the first time you'd otherwise be reaching for a Flex Mini to break out a few extra ports.
When the Lite-8 is actually the right answer
Three real cases where the smaller switch wins:
- Tiny 6U or 8U rack with no room to grow. If the cabinet physically can't fit more devices, a 16-port switch is overkill. The Lite-8 wins on space.
- You're using the Lite as a downlink, not a core. If you have a Pro switch upstream and you just need 4 more ports near a TV or a workshop, the Lite-8 is the lighter choice.
- The Lite-16 is sold out and you need a switch tonight. This happens more than you'd expect.
For everything else — and that's roughly 70% of homelab installs — the Lite-16 is the right default. The 10" Unifi USW-Lite-8 PoE Mini Rack Mount - 1U is the bracket if you've decided the smaller switch is your fit; details below.
Mounting in a 10-inch rack
A 10-inch rack has a usable interior of about 200 mm (just under 8 inches). The Lite-8 PoE chassis is roughly 6 inches wide; the Lite-16 PoE is wider but still well under 10 inches. Both fit in a 10-inch cabinet, but neither comes with mounting hardware that fits 10-inch rails. The Lite-series switches ship with 19-inch ears and a desktop-orientation rubber-foot kit, neither of which is what you want for a small homelab rack.

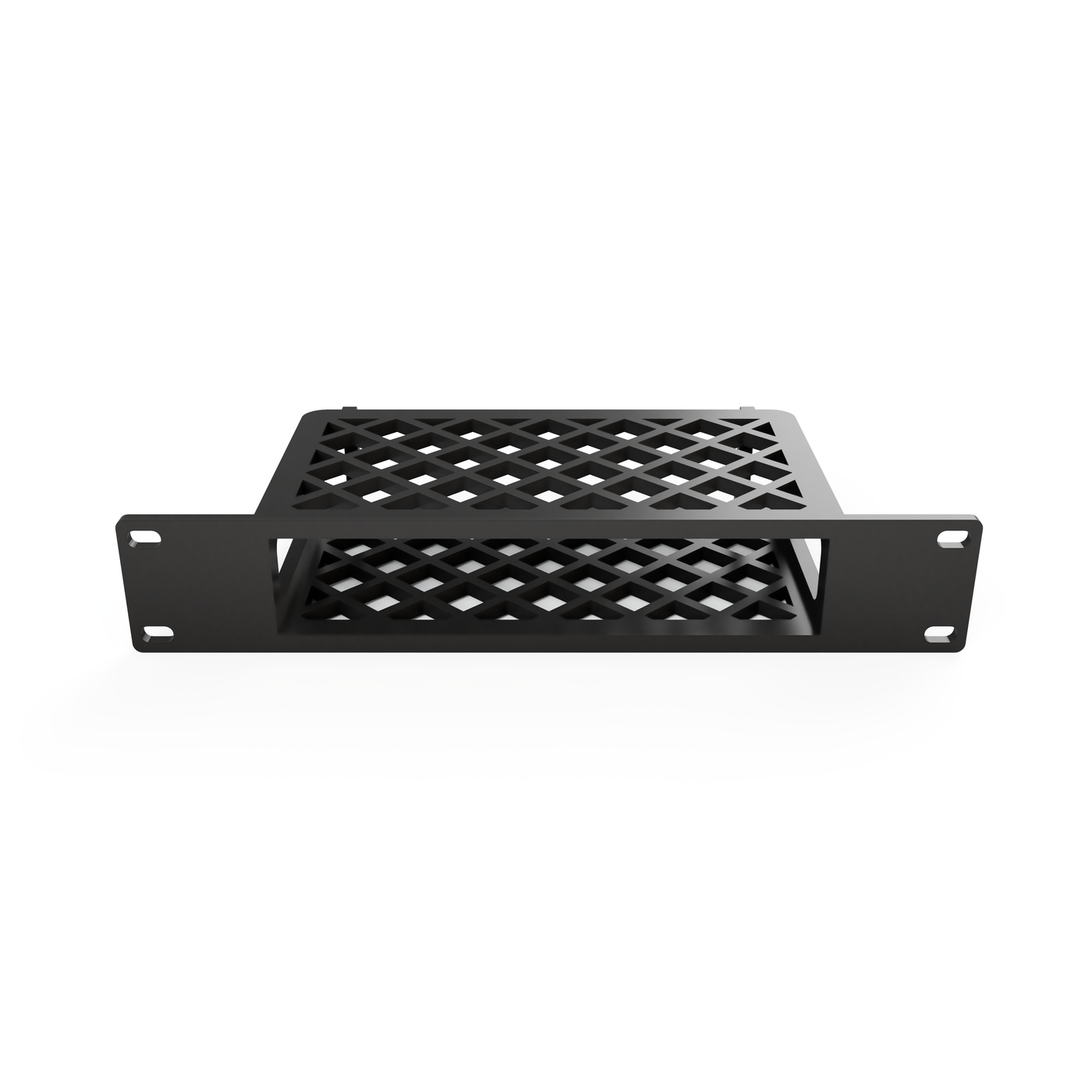

For the smaller switch, the 10" Unifi USW-Lite-8 PoE Mini Rack Mount - 1U holds the chassis in 1U with the front face flush. Cable bend radius works well — the 1U slot above can hold a patch panel or a vented blank without crowding the switch.
For the 16-port version, the Unifi USW Lite 16 PoE 10" Mini Rack Mount - 1U is the equivalent — 1U high, sized for the wider Lite-16 chassis. The Lite-16 takes up most of the 200 mm interior, but it does fit. Worth noting: the depth of the Lite-16 PoE chassis is slightly greater than the Lite-8, so make sure your 10-inch cabinet has at least 250 mm of usable depth before committing.
The biggest gotcha when mounting either of these switches in a 10-inch rack is the power brick. Both Lites use external power adapters, not internal supplies. The brick has to live somewhere — on a 1U shelf, velcroed to the side wall of the cabinet, or strapped to the bracket. Plan a 1U slot for the bricks, especially if you have multiple Lite-class switches stacked.
Mounting in a 19-inch rack
The 19-inch case is where the Lite-16 PoE pulls ahead. Ubiquiti's stock 19-inch ears for the Lite-16 are usable but ugly — the chassis is much narrower than 19 inches, leaving the switch floating in the middle of the bracket with two big rectangles of empty space on either side. The result looks half-finished compared to the rest of the rack.

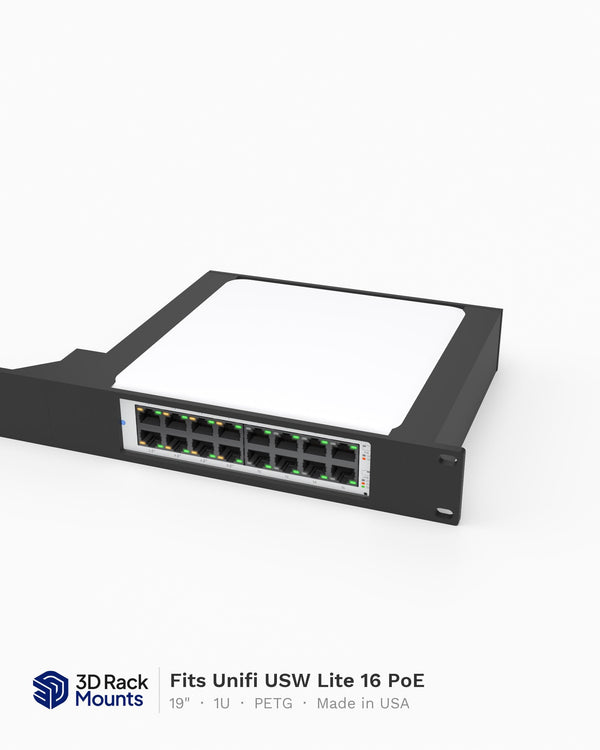

The cleaner approach is the Unifi USW Lite 16 PoE Rack Mount - 19" 1U, which fills the full 19-inch width with a printed face and gives you the option of integrating keystone breakouts or a small label panel into the empty space. If you're mounting the switch in a server-room-style 19-inch rack alongside a Pro Max 24 PoE or a UDM Pro, this dressed-up bracket makes the rack look intentional rather than cobbled.
For the Lite-8 in a 19-inch rack, you have similar issues — the switch is small relative to the rail width — but realistically, anyone mounting a Lite-8 in a 19-inch rack already has a Pro switch elsewhere and is using the Lite-8 as a downlink in a basement or office. In that case, function beats form, and a generic 1U shelf is fine.
PoE budget worked example
Take a homelab with three U6-Lite access points (rated 13 W each, typical draw 8 W) and one G3 Instant doorbell camera (3 W). Total PoE load: about 27 W on the conservative side, 42 W if every AP is hammering its radios at peak.
- Lite-8 PoE: 27 W consumed against a 52 W budget. Headroom for one more PoE device.
- Lite-16 PoE: 27 W consumed against a 45 W budget. Tighter, but still working.
Now add a fourth U6-Lite AP, a UVC-G4 Instant camera, and a Flex Mini powered over PoE. Real-world draw climbs to about 50 W.
- Lite-8 PoE: full. The fourth AP won't power up — the switch will refuse to enable PoE on the port. You'll need an injector or a different switch.
- Lite-16 PoE: also effectively full. You can plug everything in, but you'll see the switch shedding load on PoE class request, which manifests as a port that won't come up under heavy Wi-Fi traffic.
For a homelab heading north of three PoE devices, neither Lite is the right switch. Step up to a Pro Max 16 or USW-Lite-Plus-class hardware, depending on what's available in your region. Power-budget headroom matters more than total ports here.
Picking the rack format first
A meta-decision worth making explicit: if you haven't bought your rack yet, the choice of switch should follow the rack, not lead it. A 10-inch homelab rack is the right call for a quiet bedroom or a closet under the stairs. A 19-inch rack makes sense if you have a basement and a future plan that includes a 1U server, a NAS in 4U, or a UDM Pro Max. The Unifi USW Lite 16 PoE 10" Mini Rack Mount - 1U handles the 10-inch case; the Unifi USW Lite 16 PoE Rack Mount - 19" 1U handles the 19-inch one. Both fit the same switch; the difference is rail width and finish.
If you're already committed to 10-inch and you're choosing between the two switches, default to the Lite-16 unless you're physically out of cabinet space. The extra ports are cheap insurance.
Wrap-up
The headline answer is straightforward: most homelabs are better off with the Lite-16 PoE, even if today's port count fits in 8. The exceptions are tight cabinets, secondary downlink roles, and supply shortages. Match the switch to the rack you have, mount it cleanly with the right 1U bracket, and don't over-think the PoE budget — for a typical homelab with two or three APs, both switches are working hardware.
The bracket choice depends on rack format: the 10" Unifi USW-Lite-8 PoE Mini Rack Mount - 1U for the smaller switch, the Unifi USW Lite 16 PoE 10" Mini Rack Mount - 1U for the bigger one in a 10-inch rack, and the Unifi USW Lite 16 PoE Rack Mount - 19" 1U for the 19-inch case.
