A 12U homelab is the awkward middle. It is large enough to hold a real stack — a gateway, a switch or two, a couple of mini PCs, a NAS, a patch panel — but small enough that a proper rack PDU feels like overkill, both in money and in the 1U or 2U it would eat. So most 12U homelabs run on power strips: a surge strip zip-tied to a rail, or a couple of them, with wall warts and laptop-style bricks hanging off the back. That works electrically. The problem is that the back of the rack becomes a tangle, the door stops closing, and airflow turns into a maze. This post is about routing power and Ethernet in a 12U cabinet when you have decided, reasonably, that a rack PDU is not worth it yet.
Why the back of a small rack gets bad so fast
A 12U cabinet, whether 10-inch or 19-inch, has very little depth behind the rails for cable routing. A typical 10-inch wall cabinet gives you somewhere around 280 to 300 mm of internal depth, and once a device and its mounting bracket are in, you might have 40 to 60 mm of clear space behind it before you hit the back panel or the door. Every cable, every brick, and every bend radius has to live in that gap.
The thing that makes it worse than a big rack is the power supplies. In a full-size rack everything is IEC-corded and an inch deep at the inlet. In a homelab, half the devices ship with external bricks: the mini PC, the gateway, the switch that is not PoE-powered, the NAS sometimes. Each brick is a fist-sized object with a captive cable on each end, and there is nowhere graceful for it to go. Left alone, the bricks pile into the bottom of the cabinet and pull the whole bundle into a knot. The single biggest improvement you can make is deciding where the bricks live before you decide anything else.
Power: making peace with the bricks
Without a PDU, your power distribution is one or more surge-protected strips. The goal is to mount them deliberately rather than letting them float. Two patterns work in a 12U cabinet.
- Vertical strip on the rear rail or side wall. A slim strip mounted vertically along a rear rail or the inside side wall keeps the outlets facing into the cabinet and gets the strip out of the airflow path. Many strips have keyhole slots on the back; a pair of screws into the rail, or heavy-duty hook-and-loop, holds them. Vertical mounting means each device's cord drops to the nearest outlet instead of crossing the whole rack to reach a horizontal strip at the bottom.

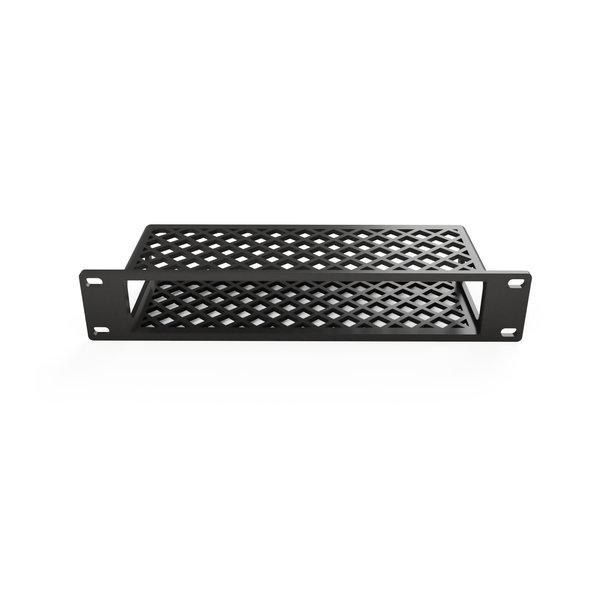

- Shelf-mounted strip plus a brick shelf. If you have a spare U, a vented shelf at the bottom holding the strip and the bricks turns the worst part of the problem into a contained one. The bricks sit on the shelf, their low-voltage cables run up to the devices, and the mains cords stay short. It costs a U, but a 12U rack that is not full can usually spare one, and it is the difference between a tidy cabinet and a bird's nest.
A few rules keep the power side sane regardless of pattern:
- Separate the bricks from the data path. Run mains and low-voltage power down one side of the cabinet and Ethernet down the other. Mixing them is what produces the undifferentiated tangle. It also keeps you from yanking a network cable when you are fishing for a power cord.
- Leave a service loop, but only one. Each device wants a little slack so you can slide it out without unplugging it. One small loop per cable is service-friendly; three loops per cable is how the cabinet fills up. Coil the excess once, secure it, move on.
- Total up the load before you trust one strip. A 12U homelab rarely exceeds a few hundred watts — a UniFi switch, a couple of mini PCs at 15 to 35 W each, a NAS spinning two or three drives. That is comfortably inside a single 15 A strip's headroom. But add a hungry mini workstation or a small UPS charging, and you want to know your number. Add the rated draw of everything; if you are past about 1,000 W on a 15 A/120 V circuit you are pushing the 80 percent continuous-load guideline and should split across two circuits, not just two strips.
Ethernet: the patch layer is where tidiness is won
The data side is more forgiving than power because the cables are uniform and bend predictably, but it is also where a homelab most often over-buys cable length. The fix is a deliberate patch layer. Even without a full patch panel, terminating your in-wall or inter-device runs at one horizontal location and patching short cables from there gives you a single place where the cabling is organized, instead of twenty different-length cables crossing the cabinet at twenty different angles.
Concretely:
- Buy patch cables to length, or make them. The single most effective Ethernet tidiness move in a small rack is owning cables in 0.15 m, 0.3 m, and 0.5 m lengths. A 2 m patch cable between two devices 200 mm apart is 1.8 m of cable that has to go somewhere, and where it goes is into the tangle. If you crimp your own, you cut to fit; if you buy, keep a small stock of short lengths.
- Use a horizontal lacing bar or cable-management bar. A 1U lacing bar between your switch and your patch point gives the bundle something to anchor to so the weight is not hanging off the switch ports. In a 10-inch rack a simple bar or even a 3D-printed comb does the same job.
- Route across, then down. Cables should leave a device horizontally to the nearest vertical path, then run vertically. Diagonal runs across the open cabinet are what make a rack look chaotic and what block airflow. Pick a side for the vertical path and keep everything on it.
- Colour-code at least the uplinks. You do not need a full colour scheme in a homelab, but making your uplinks and your one or two "do not unplug this" cables a distinct colour saves a bad evening later.
Keeping airflow alive in the tangle
Cable management in a small cabinet is not only cosmetic; it is thermal. The rear gap where all the cables live is also the path that warm air wants to take out of the cabinet, or that a rear fan is trying to pull through. A dense mat of cables and bricks across the back of a 10-inch cabinet is a surprisingly effective insulator and baffle. Two devices that each run fine on a bench can cook each other in a cabinet whose airflow has been quietly strangled by the wiring.
The practical defenses are simple. Keep the bundle to one side so the other side stays open as an air path. Do not pile bricks directly under a device that breathes from the bottom, which most fanless mini PCs do. If you run a cabinet fan, make sure the cable bundle is not sitting directly in front of its intake or exhaust. And leave the blanking panels in: an open U above a hot device lets warm air recirculate to the intake instead of leaving the cabinet, and the cables threading through that open gap make the recirculation worse.
The zip-tie trap
A specific warning, because everyone does it once. Zip ties are cheap, permanent, and tempting, and a rack bundled entirely with zip ties looks tidy on day one and becomes miserable the first time you add a device. Every change means cutting and replacing ties, and the temptation is to skip that and just stuff the new cable through, which is how the tidy rack reverts to a tangle within a few moves. Hook-and-loop straps cost slightly more and open in a second. Use them for anything you will ever touch again, and save the zip ties for the few permanent bundles that genuinely never change. Reusable beats tidy-once every time in a homelab that grows.
A working layout for a 12U cabinet
Pulling it together, a 12U homelab that stays manageable without a PDU tends to look like this from top to bottom: gateway and any 1U network gear up top where the uplinks enter; switch directly below so patch runs are short; a lacing bar or patch point in the middle as the one organized cabling location; compute (mini PCs, NAS) below that; and a vented shelf at the bottom holding the power strip and the brick herd. Power runs down one side, Ethernet down the other, both anchored to the rail rather than hanging from ports. Blanking panels fill the empty U slots so airflow goes where you want it.
None of this requires a rack PDU. It requires deciding where power lives, terminating the data at one place, buying short patch cables, and using straps you can open. The PDU is a nice upgrade for the day the rack grows past 12U or you want per-outlet switching and monitoring. Until then, the difference between a homelab you dread opening and one you do not is mostly a shelf, a side convention, and a stack of 0.3 m patch cables.
Wrap-up
A 12U rack is small enough that good habits matter more than good equipment. Route power and data on opposite sides, give the bricks a shelf instead of the cabinet floor, terminate the Ethernet at one tidy patch point, and strap with hook-and-loop so the next change is painless.
Do that and the rack stays serviceable as it grows, the door keeps closing, and the air keeps moving — all without spending a U or a hundred dollars on a PDU you do not need yet.
