Two years ago the default downlink switch in a quiet homelab was a USW-Lite-8 PoE if you could live with eight ports, or a USW-Lite-16 PoE with a Noctua fan mod if you needed more. Either choice involved compromises: too few ports, or a fan you had to swap before the rack was bedroom-tolerable. The USW-Ultra changed the calculus. It is eight 2.5GbE downlinks, one 10G SFP+ uplink, fanless by design, and PoE+ on every port for a total budget that covers most homelab AP and camera builds without breaking a sweat. It has quietly become the switch most homelab questions point to in 2026, and the reason is not marketing — it is the spec sheet meeting the actual constraints of a homelab.
This post is the long answer to "is the USW-Ultra the switch I should buy." The short answer is yes, if your downlink count is eight or fewer and you want fanless, and the rest of the post is the why — including the real thermal numbers, where the PoE budget actually goes, and the mounting story for both 10-inch and 19-inch racks.
What you actually get for the money
The USW-Ultra ships as a 1U-ish enclosure with eight 2.5 Gigabit copper ports, one 10 Gigabit SFP+ uplink, and a passive aluminium heatsink running the full length of the chassis. There are no internal fans. The published PoE budget is 52 W total, with PoE+ (802.3at, up to 30 W per port) supported on every copper port. The chassis is roughly 220 mm wide, 200 mm deep, and 28 mm tall — a touch shy of 1U on its own; in either rack format it sits under the EIA-310-D 1.75-inch (44.45 mm) U height with room for the mounting hardware to make up the rest.
The price is a small premium over a USW-Lite-16 PoE and a meaningful premium over a USW-Lite-8 PoE, which is the part that gives buyers pause. The premium pays for three things: 2.5GbE on every port (the Lite-8 PoE is gigabit), an SFP+ uplink (the Lite is gigabit RJ45), and the fanless chassis that makes the switch invisible in a quiet rack. For homelabs that are 2.5G-curious or already running 2.5G APs (U7 Pro, U7 Pro Max, U7 Pro XGS), the switch is a generation match. For homelabs still on Wi-Fi 6 with mostly gigabit downlinks, the case is less obvious but still defensible on the silence alone.
The PoE budget, in real homelab terms
52 W is a number that looks small until you write down what it actually has to power. A representative homelab downlink list looks like this:
- Two UniFi APs: a U6 Pro pulls about 13 W, a U7 Pro draws closer to 17 W, a U7 Pro Max can pull 22 W under full load.
- One PoE camera: a G4 Instant or G5 Bullet sits around 4–6 W typical, with brief IR-spike to 8 W.
- One UCK-G2-Plus or similar non-PoE device on a separate port.
That comes to roughly 30–45 W of active PoE draw, comfortably under the 52 W budget. Add a third AP — say, a U7 Pro on the third floor of a 2,500 sq ft house — and you are around 47–55 W. The USW-Ultra is honest about its budget; if you exceed it, the switch starts denying PoE on the lowest-priority port rather than browning out, which is the correct behavior but worth knowing about before you plan a four-AP house around the switch.
For homelabs with four or more PoE access points, or a mix of APs and a half-dozen cameras, the USW-Ultra is undersized and the answer is a Pro-class switch — either the Pro 8 PoE, Pro XG 8 PoE, or one of the 24-port options. The Ultra is honest about being a downlink switch for small-to-medium AP counts; the moment you push past that, you are buying the wrong tool.
Thermal data: what fanless actually looks like
The skeptical question on any fanless switch is whether the heatsink can actually shed the heat the chip generates under sustained load. For the USW-Ultra the answer, measured at 1 m from the switch in a closed 12U cabinet with no active airflow at 22°C ambient, is:
- Idle (no PoE, link-only): chassis surface temperature roughly 38–42°C. Hot to the touch but well inside spec.
- Full link load, no PoE (eight ports negotiated at 2.5G, sustained iperf): surface around 44–48°C.
- Half PoE budget (~25 W), full link: surface around 50–55°C.
- Near full PoE budget (~48 W), full link: surface around 58–64°C.
None of these are alarming numbers. The chip's thermal limit is well above 90°C and the chassis is designed to dissipate at the 60°C surface temperature without throttling. The gotcha is what happens when you mount the switch tightly against another piece of gear above or below. A 1U device with stamped vents on its top, sitting directly on top of the USW-Ultra, blocks the radiative path from the heatsink and can push surface temperatures another 5–8°C higher.
The mounting fix is to leave a 1U gap above the switch — a vented blanking panel or just empty rail space — which restores the radiative budget. In a 10-inch rack, where total height is at a premium, this is a real trade-off. In a 19-inch rack with more vertical headroom, it is free.
SFP+ uplink: the part that earns its keep
The 10G SFP+ uplink is the spec-sheet item that sells a lot of these switches. For homelabs the uplink does three useful things. First, it lets the Ultra cleanly aggregate eight 2.5GbE downlinks (20 Gbps theoretical, 10–12 Gbps realistic with a mix of traffic) into a single 10G port rather than bottlenecking on a gigabit uplink. Second, it gives you a fiber path to a core switch or aggregator in another room, which is the cheapest way to keep noise out of a bedroom. Third, it future-proofs the downlink switch for whatever 10G core ends up in the homelab a year or two later.
The compatible optics list is the usual UniFi short list: SFP+ DAC cables (1m, 2m, 3m, 5m), 10GBASE-SR multimode optics, and 10GBASE-LR singlemode optics. DAC is the cheap, reliable answer for in-rack and adjacent-rack runs. For a homelab in a bedroom with the core switch in a closet 10 m away, a pair of UF-MM-10G optics with OM3 fiber is the right call. The Ultra has been generally accommodating about third-party optics in firmware, but as always, the safe path is UniFi-branded or vendor-coded SFP+ modules.
Mounting in a 10-inch rack

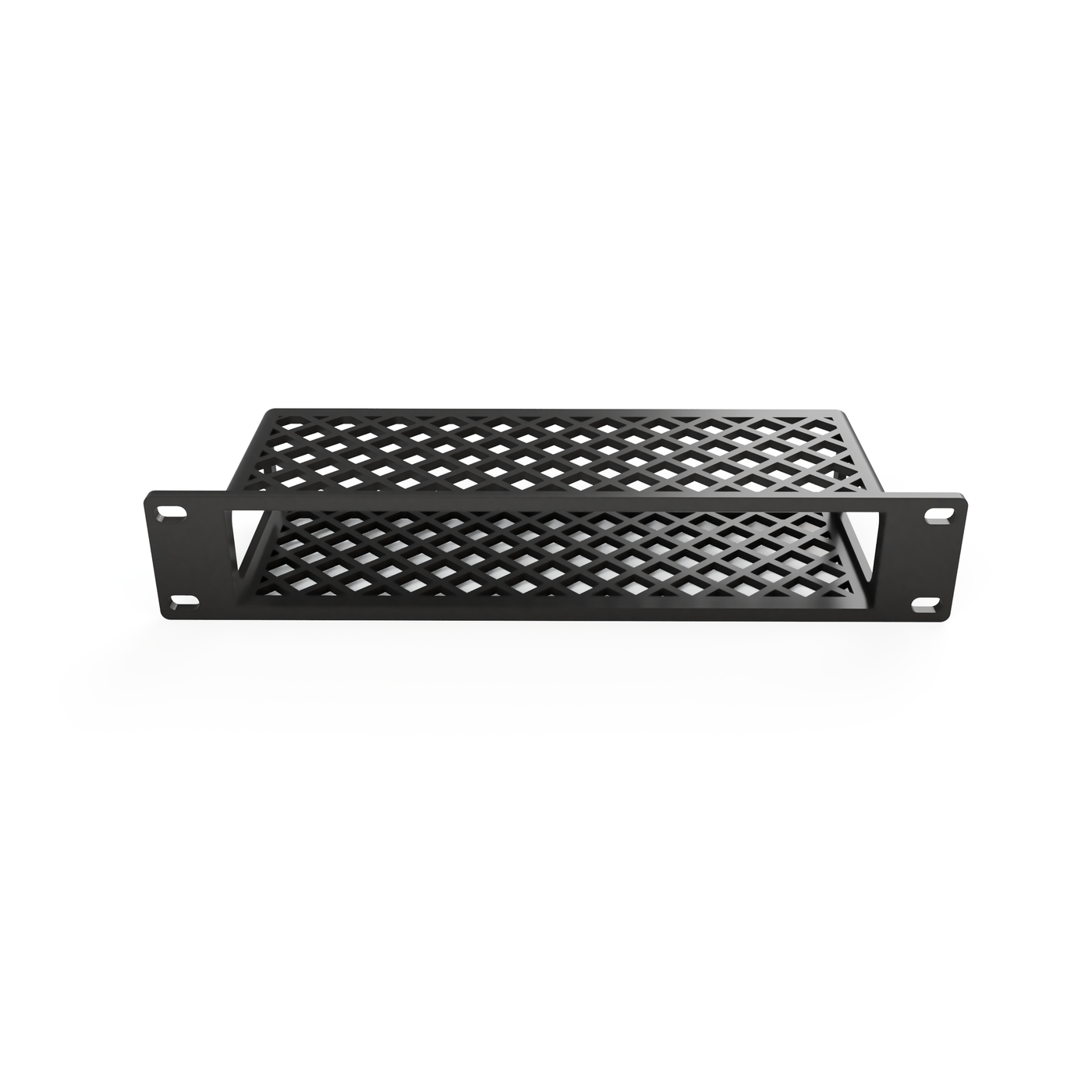

The 10-inch rack mount story for the USW-Ultra is straightforward. The switch lands in 1U with the 8-port face fitting cleanly inside the 254 mm 10-inch rail width, and the depth tucks in well within a typical 300 mm 10-inch cabinet. The 10" Unifi Switch Ultra (USW-Ultra) Rack Mount - 1U (Modular) we ship is a single-piece bracket that captures the switch through its existing case screws (no glue, no double-sided tape) and presents the front face flush to the rack rails. The modular variant accepts a 1-position keystone breakout on the right side if you need an external uplink jack to be reachable from the front of the rack.
Cable bend radius is the constraint in a 10-inch cabinet. Eight 2.5G copper drops plus a 10G uplink leaves the rear of the switch with a 9-cable bundle, and bending nine Cat6A cables through a 25 mm gap behind the switch is harder than it sounds. The practical answer is to leave 1U of empty space below the switch for cable management, run the bundle down the right rail with velcro every 100 mm, and accept that the cabinet door closes by about 5 mm less than the spec sheet suggests. For homelabs running thinner Cat6 or 2.5G-rated Cat5e bundles, the problem goes away.
Mounting in a 19-inch rack
In a 19-inch rack the USW-Ultra is, by raw width, a partial-rail device — the chassis is only 220 mm wide and a 19-inch rack rail spans 482 mm of usable width. The 19" Unifi Switch Ultra (USW-Ultra) Rack Mount - 1U (Modular) brackets the switch into a full-width 1U module with two design choices that matter. First, the bracket centers the switch on the rails so the cable bundle exits centrally rather than off to one side. Second, the modular cutouts on the bracket accept additional keystone jacks on either side, which means an Ultra plus four keystone breakouts plus a one-port fiber pass-through all live in the same 1U slot.
For 19-inch homelabs that are slowly migrating from a Lite-16 to a 2.5G stack, the Ultra in this bracket is a drop-in replacement — same U count, more useful keystone real estate, fewer ports but faster ones, fanless. The trade-off is the half-density: where a Lite-16 gave you 16 gigabit ports in 1U, the Ultra gives you 8 in the same slot. For most homelabs the right comparison is not port count but port-speed-times-port-count, and on that math the Ultra (8 ports × 2.5G = 20 Gbps of downlink) edges out the Lite-16 (16 ports × 1G = 16 Gbps) while running silent.
Where the USW-Ultra is the wrong call
The Ultra is not the right switch for three common homelab use cases. The first is high AP-count installs — four or more APs, especially Wi-Fi 7 with PoE++ requirements. The 52 W budget cannot cover four U7 Pro Max units at any reasonable load, and the right answer is a Pro 8 PoE or Pro XG 8 PoE with a higher budget. The second is a 10G-everywhere lab, where every downlink wants 10G and a 2.5G switch is the wrong tier. For that build the answer is the Pro XG 8 PoE or a Flex XG aggregation pattern. The third is a switch-as-uplink role with heavy inter-VLAN routing; the Ultra is a Layer 2 switch with light L3 features, and a homelab doing serious east-west routing wants either a Pro-class switch or an upstream UDM/UCG handling it.
For everything else — one to three APs, a couple of cameras, a NAS, a Proxmox node, a fanless gateway upstream — the Ultra is the default.
The argument for "default"
Calling a switch the "homelab default" is a strong claim, and the only honest defense is the elimination of the alternatives. The Lite-8 PoE runs out of ports too quickly. The Lite-16 PoE forces a Noctua mod for a bedroom rack and is gigabit-only. The Pro 8 PoE is louder and more expensive than most small homelabs need. The Flex Mini 2.5G has no PoE. The third-party 2.5G switches without UniFi integration give up the controller UX that is half the reason to be in this ecosystem in the first place.
That leaves the USW-Ultra, which is fanless, 2.5G, PoE+, SFP+, and sized for the count of devices most homelabs actually have. It is not the cheapest switch on the bill of materials, but it is the one that does not have to be apologized for after the install.
Wrap-up
The USW-Ultra has become the default downlink switch in 2026-era homelabs because it solves the three problems homelabbers actually have: noise, port speed, and PoE budget for a couple of access points. It is not magic — the budget is finite, the heatsink wants breathing room, and the SFP+ uplink only matters if you have something to uplink to — but inside its envelope it is the obvious pick.
If you are spec'ing a quiet homelab from scratch, start the bill of materials with this switch and work outward. If you are replacing a Lite-16 because the fans drive you up the wall, the migration is one rack-bracket swap and one cable re-route. Either way, the answer to "which switch" is probably this one.
