The original UniFi Express — the little cube that was equal parts gateway, single access point, and stripped-down controller — was the device that let a lot of people get into the UniFi ecosystem without buying a Dream Machine. The Express 7 is the Wi-Fi 7 sequel to that idea, and it carries the same premise forward: one small box that routes, broadcasts, and runs the Network application, sized for a person who wants the UniFi experience without a full stack. This post is the long look at what the Express 7 actually does, where it sits in the gateway lineup, and how to put it in a rack without it looking like an afterthought sitting on a shelf.
The short version: the Express 7 is a gateway-plus-AP combo with a Wi-Fi 7 radio and a built-in console, and it is genuinely good at being the only UniFi device in a small deployment. The rest of this post is the longer version, including the part where a combined gateway-and-AP creates a specific mounting problem that a rack actually solves better than a shelf does.
What the Express 7 actually is
The Express 7 is three devices in one enclosure. It is a router and gateway, terminating your WAN and handing out DHCP, NAT, firewall, and VLANs. It is a Wi-Fi 7 access point, broadcasting the SSIDs you configure. And it runs a built-in UniFi OS console with the Network application, so you do not need a separate Cloud Key or Dream Machine to manage it — the controller lives on the device itself.
That tri-purpose design is the whole point. For a small apartment, a one-bedroom homelab, or a person standing up their first UniFi network, the Express 7 covers gateway, Wi-Fi, and controller in a single purchase and a single power draw. It will also adopt and manage a modest number of additional UniFi devices — a switch and an extra access point or two — which is where the homelab interest comes from. It is not a Dream Machine Pro with a 3.5-inch drive bay and a 24-port switch built in; it is the entry tier, and it is honest about that.
The chassis is a compact upright unit — roughly the footprint of a paperback standing on end, a touch under 150 mm tall and well under 100 mm on its other dimensions. The vertical form factor matters for two reasons: it is designed to radiate Wi-Fi outward from a desktop or shelf, and it is exactly the shape that does not naturally belong on a horizontal rack rail. We will come back to that.
Wi-Fi 7 in this form factor
The headline upgrade over the original Express is the radio. The Express 7 carries a Wi-Fi 7 (802.11be) radio where the original Express was Wi-Fi 6. In practice, for a homelab, the Wi-Fi 7 features that matter are the wider channels and the improved efficiency in a dense-client environment more than the theoretical peak throughput — very few homelab clients will saturate a Wi-Fi 7 link, but the airtime efficiency is a real, felt improvement when twenty IoT devices, three phones, and a laptop are all sharing the air.
Here is the gotcha, and it is the same gotcha the original Express had: the Express 7 is a gateway and an access point in the same box, which means the antenna wants to be out in the room and the gateway wants to be near your WAN handoff. Those two goals frequently conflict. If your modem and the rest of your gear live in a closet or a rack, putting the Express 7 there too means the Wi-Fi radio is now broadcasting from inside a metal cabinet, which is roughly the worst place you can put an antenna. This is the central tension of any gateway-AP combo, and it dictates how you think about mounting it.
There are two honest answers. The first is to accept the Express 7 as your gateway and controller, mount it in the rack for tidiness and power — the 10-inch Express 7 mount is built for exactly this role — and run separate dedicated access points — which the Express 7 will happily adopt and manage — for actual coverage. The second is to keep the Express 7 out in the living space as a combined unit and accept that it is not a rack device at all. Most homelabbers who care enough to read a rack-mount blog land on the first answer, and that is the build this post is written for.
Ports, throughput, and the console
The Express 7 moves the wired ports up to 2.5 Gigabit, with a 2.5GbE WAN and a 2.5GbE LAN port — a meaningful step up from the gigabit ports on the original Express, and a match for the multi-gig service tiers that are increasingly common. That single LAN port is the constraint to plan around: the Express 7 is not a switch, so the one downstream port is your uplink to whatever switch fans out the rest of the network. In a homelab that switch is frequently a fanless 2.5G unit, and the 2.5GbE LAN port keeps the gateway from being the bottleneck in that handoff.
The built-in console runs the Network application directly. For a small deployment this is the entire management story — you adopt the device, you get the familiar UniFi interface, and you never think about where the controller is running because it is running on the gateway. The limitation to know about is device count and feature depth: the Express tier runs a focused subset of UniFi OS, not the full multi-application console of a Dream Machine, and it is sized for a small device count. Push past a handful of managed devices, or want Protect and a stack of cameras, and you have outgrown the Express 7 — which is the correct outcome, not a flaw.
Mounting in a 10-inch rack
This is where the upright form factor stops being a Wi-Fi advantage and becomes a mounting puzzle. The Express 7 is a tall, narrow box with no rack ears, no mounting flanges, and a vertical orientation that does not lie flat against a horizontal rail. Setting it loose on a rack shelf works, but it wastes vertical space and leaves the device free to slide around every time you touch a cable.

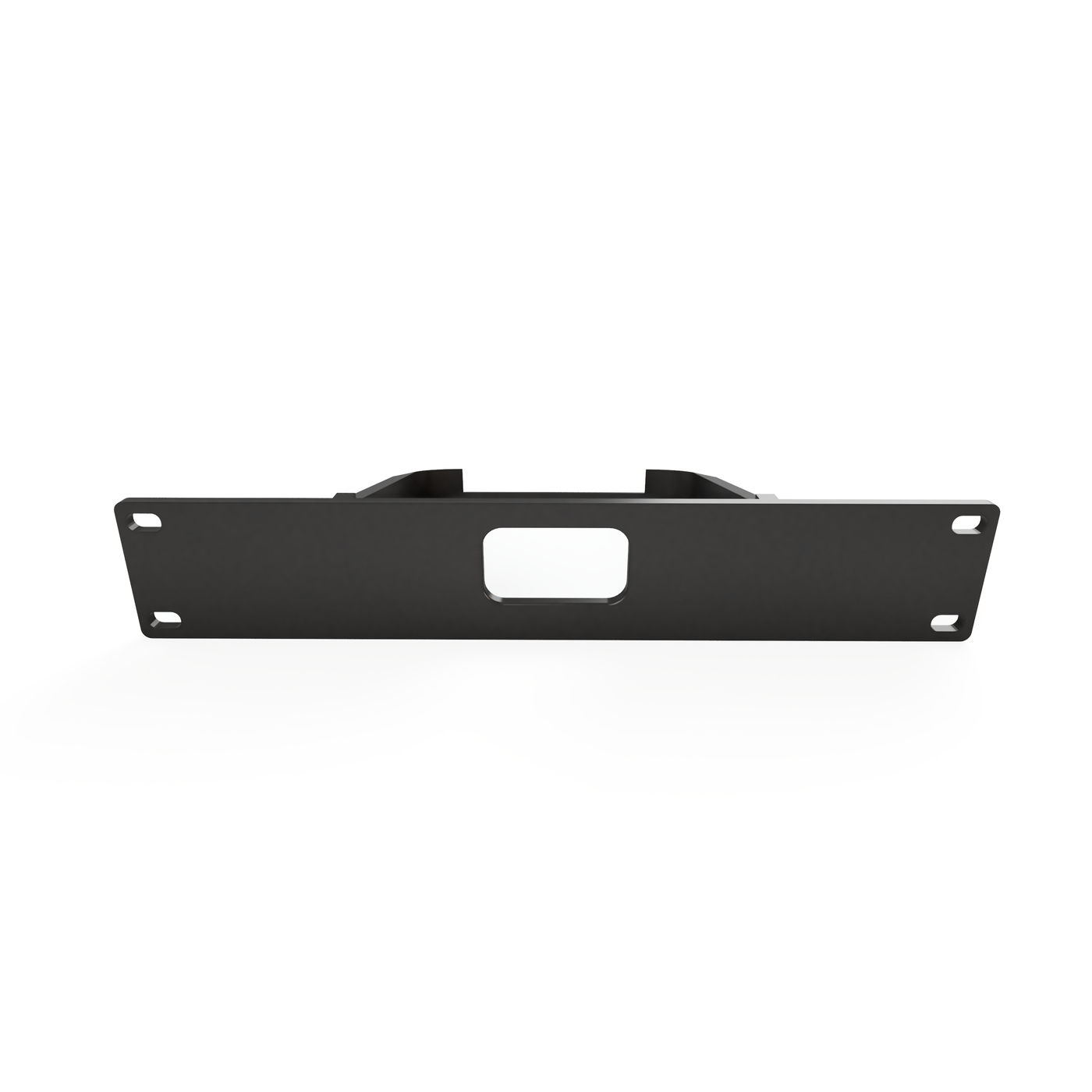

The cleaner answer is a purpose-cut bracket. The Unifi Express 7 10" Mini Rack Mount - 1U captures the Express 7 in a 1U cradle sized to the exact chassis, presenting the device to the front of a 254 mm 10-inch rail in a single U of height. The bracket holds the unit by its body rather than relying on adhesive, so it comes back out cleanly when you eventually upgrade. Because the Express 7 is shallow, it tucks well inside a typical 300 mm 10-inch cabinet with room behind it for the two 2.5GbE drops and the power lead to make their bends.
If you are running the Express 7 as a gateway-and-controller in the rack with separate APs out in the rooms, the 10-inch mount is the natural home for it — it sits in 1U next to your switch and your modem mount and disappears into the build. If you are trying to use the Express 7 as your only AP and also rack it, the bracket will hold it fine, but reread the Wi-Fi gotcha above before you commit to broadcasting from inside the cabinet.
Mounting in a 19-inch rack
In a 19-inch rack the Express 7 is, by width, a tiny tenant — the chassis occupies a fraction of the 482 mm usable rail span. The Unifi Express 7 19" Rack Mount - 1U (Modular) brackets the device into a full-width 1U module, and because most of that U is empty space, the modular cutouts earn their keep here. You can pair the Express 7 with keystone breakouts in the same slot — a WAN pass-through jack, a couple of LAN keystones — so the gateway and its front-panel patching live in a single rack unit rather than spread across two.
For a 19-inch homelab the modular bracket also lets you center the device so the cable exit is sensible, and the empty rail space on either side gives the upright chassis room to breathe rather than sitting boxed in. The Express 7 does not run hot the way a PoE switch does, but it is still a sealed gateway with a radio inside, and a little airflow around it never hurts. The 19-inch modular Express 7 mount gives it that room for free in a way the height-constrained 10-inch format cannot.
Where the Express 7 is the wrong call
The Express 7 is the wrong device for three common homelab situations. The first is any build that already has a dedicated gateway — a UCG-Ultra, a UCG-Max, a Dream Machine of any flavor. In that case the routing job is done, and what you want from a Wi-Fi 7 device is a pure access point, not another gateway-AP combo whose router half you will never use.
The second is a high-device-count lab. The Express tier manages a small number of UniFi devices and runs a focused console; the moment you are adopting a half-dozen switches, several APs, and a camera stack, you want a Cloud Key Gen2 Plus or a Dream Machine running the full UniFi OS. The third is a multi-gig-everywhere build — if your WAN is faster than 2.5G or you need link aggregation on the LAN side, the single 2.5GbE downlink is a hard ceiling, and a higher-tier gateway is the answer.
For everything inside that envelope — a small network, one to a few managed devices, a person who wants UniFi without a stack — the Express 7 is a clean, capable, and genuinely small piece of the build. Mounted in a rack as a gateway with separate APs handling coverage — whether on the 10-inch mount or the full-width 19-inch modular mount — it is close to ideal.
Wrap-up
The Express 7 is the entry point to Wi-Fi 7 in the UniFi world, and it is unusually good at being the only device a small network needs. The catch is the one every gateway-AP combo shares: the radio wants to be in the room and the gateway wants to be in the rack, and you have to pick which job you are optimizing for. Rack the Express 7 as a gateway and controller, hand the coverage job to dedicated APs, and the combo design becomes an advantage rather than a compromise.
If you are putting one in a rack, the 10-inch Express 7 mount handles the height-constrained build and the 19-inch modular version handles the full-size rack with keystone breakouts in the same slot. Either way, the upright little box that was never shaped for a rail ends up looking like it belonged there all along.
