UniFi Cloud Gateway Ultra and Max in a 10-Inch Rack

The UniFi Cloud Gateway Ultra (UCG-Ultra) and Cloud Gateway Max (UCG-Max) are the gateways most homelabbers move to once the Express runs out of throughput. They're a clear step up — better routing performance, more memory, native UniFi OS — and they share a chassis, so the rack-mount question is the same for both: do they actually fit in a 10-inch rack?

Short answer: yes, but it's tight. Here's the long answer.

The form-factor reality

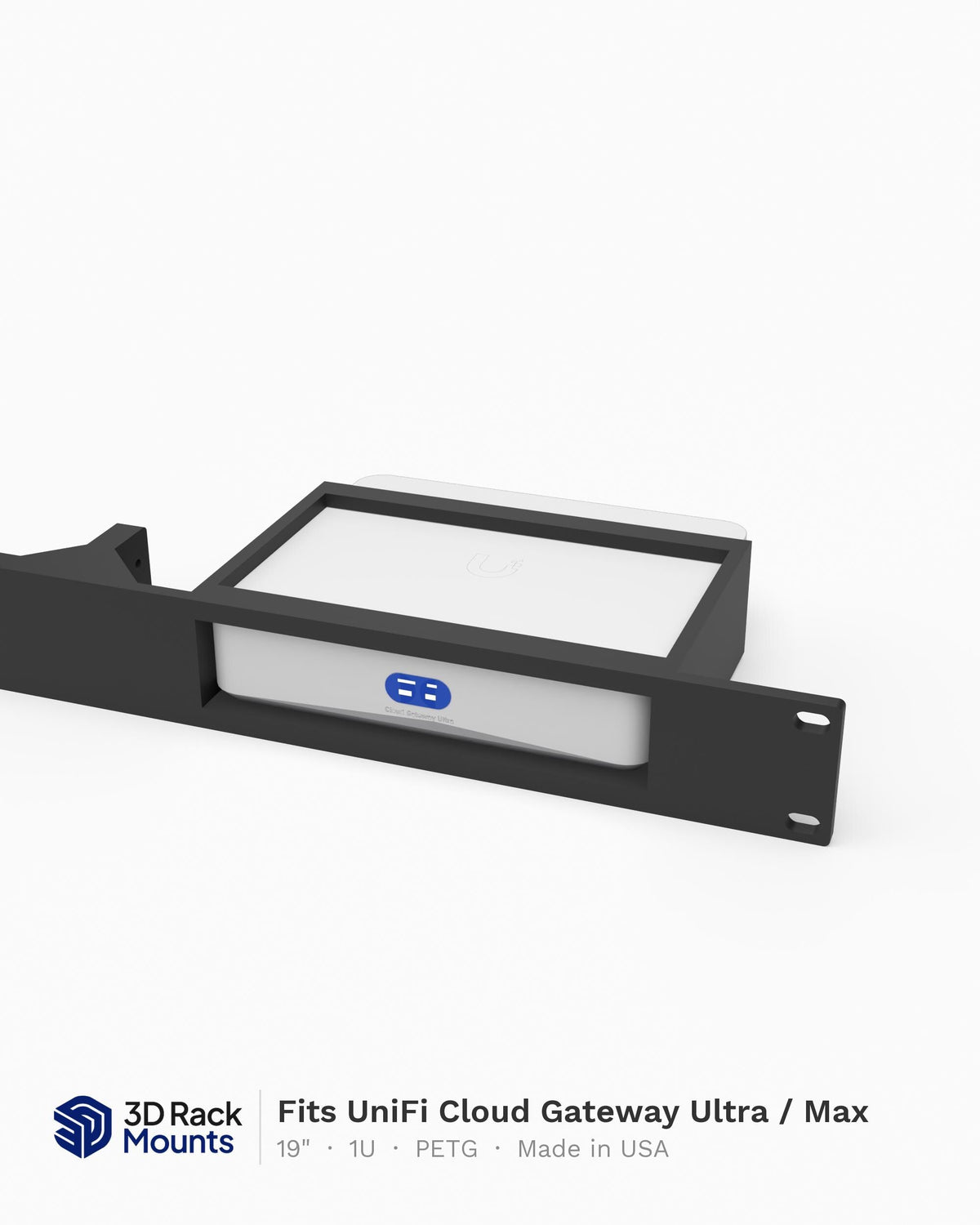

A 10-inch cabinet has 254 mm of mounting width and roughly 200–210 mm of usable interior between rails. The UCG-Ultra and UCG-Max chassis is wider than the original Express but narrower than a 19-inch device — call it "small but not tiny." With our 19" Cloud Gateway Ultra/Max modular mount you get a clean 1U, but for 10" you're going to pay closer attention to two things:

• Cabinet depth. A lot of budget 10-inch cabinets are only 180–220 mm deep internally. The Ultra/Max chassis is around 130 mm deep, but you also need bend radius behind the WAN port — that's another 30–40 mm on top. If your cabinet is at the shallow end of the range, the rear panel will hit the back wall before you can get a patch cable in cleanly.
• Side clearance to the rails. A 10-inch cabinet's interior width varies — 200 mm in the cheaper imports, 215 mm in better ones. The UCG-Ultra is right at the edge for the cheapest cabinets. If you're shopping new, look for "215 mm interior width" or better in the spec sheet.

If you're already on a 10-inch rack and your gateway is on the upgrade list, measure your cabinet first. If it's a 250 mm-deep unit with 215 mm interior width, the Ultra fits without drama. If it's the slim "10-inch wall mount" you bought on Amazon for $80, the Express family is a better target — see the 10" UniFi Express & Gateway Lite mount with 2 keystones for the tier below.

Why the Ultra/Max instead of the Express

If your ISP plan is under 300 Mbps and you don't have IDS/IPS turned on, the Express is fine. The reasons to step up to the Ultra or Max:

• Symmetric gigabit and beyond. The Express family caps out lower than the Ultra/Max for IPS-on traffic. If you're on a fiber plan above 500 Mbps and want IDS turned on, the Ultra/Max stops being a luxury.
• More PoE-aware ports for 2.5G uplinks. The Ultra has a 2.5G WAN port and 2.5G LAN ports, useful for chaining a USW-Ultra or Flex 2.5G 8 below it.
• NVR-class memory. If you're running UniFi Protect on the gateway itself (not a separate NVR), the Ultra/Max has the headroom; the Express runs out fast.
• Fanless. Both Ultra and Max are passively cooled, which matters if your rack lives in a bedroom.

Mounting in 10": three approaches

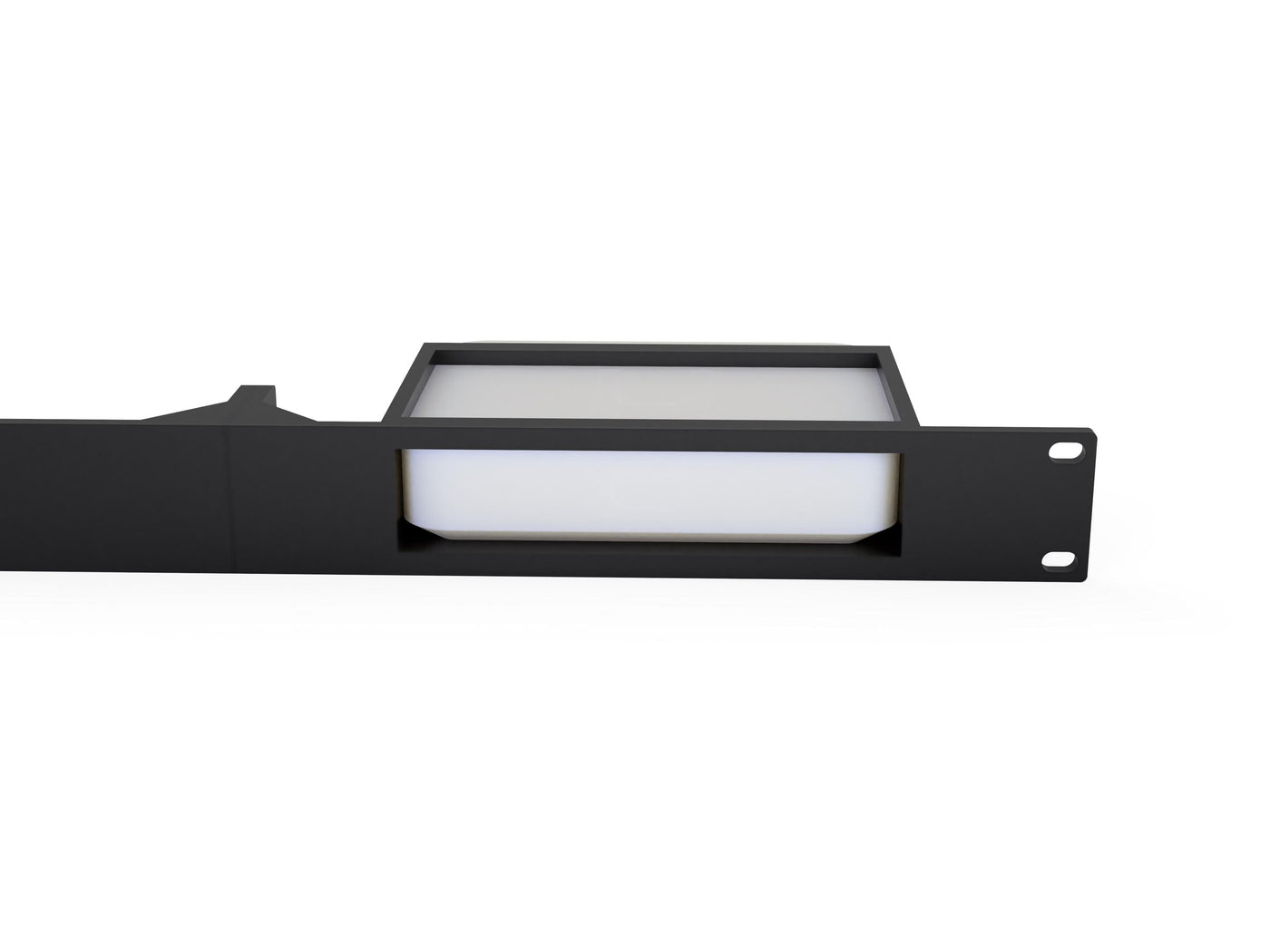

Approach 1 — straight 1U bracket

The cleanest pattern: a 1U bracket sized for the Ultra/Max chassis, occupying a single U slot. Cable routing exits the back of the rack as normal. Pro: tidy. Con: the 1U above and below should be left empty or vented to give the chassis air, since it's running passive.

Approach 2 — vented bracket with stacked Cloud Key

If you're running a Cloud Key Gen 2 Plus alongside the Ultra (e.g., for Protect with separate storage), the Cloud Key fits in the same 1U if mounted on the side of the Ultra/Max chassis. We don't ship a combined bracket for this pair yet — it's on the list — but a vented 1U above the Ultra holds a stacked Cloud Key cleanly with a bit of velcro.

Approach 3 — when in doubt, go 19"

If your build sheet has the Ultra/Max plus more than two other rack devices, you're probably going to outgrow a 12U 10-inch cabinet within a year. By the time you're three pieces in (Ultra/Max + USW-Lite-16 + Cloud Key), the cost of a small 19-inch wall cabinet is about $80–$120 above the equivalent 10-inch — not free, but not the dealbreaker it once was. Use the 19" Cloud Gateway Ultra/Max modular mount and start filling 1U slots with proper rack gear.

Cooling and cable practice

The Ultra/Max stays cool by spec, but enclosed in a 12U cabinet with a USW-Ultra and a Lite-16 PoE running 12 PoE+ ports, the cabinet's internal air temperature can climb to 35–40 °C on a warm day. That's still inside the gateway's operating range, but it shortens capacitor life. Keep the cabinet's vents clear, leave at least one vented blank panel between heat-producing devices, and don't blank-panel the entire front.

For cabling: the Ultra's WAN and LAN ports are on the back. Use 0.5 m or 1 m patch cables — the 3 m cables that come in the box turn a 10-inch cabinet's back into spaghetti. Run power from a horizontal PDU at the bottom 1U; vertical PDUs don't fit in most 10" cabinets.

The 10" UCG-Ultra build sheet (sample)

A workable 8U 10-inch build that includes the Ultra:

• 1U — UCG-Ultra in a 10" 1U bracket
• 1U — vented blank (heat gap above the gateway)
• 1U — USW-Ultra fanless switch for the core
• 1U — USW-Lite-8 PoE for AP power
• 1U — vented blank
• 1U — horizontal PDU (6 outlets)
• 2U — expansion (future SFF host or a UPS shelf)

Total active draw at idle: ~25 W. Under PoE+ load with two APs and a few cameras: ~80 W. A 750 VA UPS gives you ~30 minutes of runtime.

When the Cloud Gateway Fiber is the better answer

If your ISP hands you fiber and a separate ONT, consider the Cloud Gateway Fiber instead — its SFP+ port lets you take the fiber directly, eliminating the ONT/router pair. We've got a 10" Cloud Gateway Fiber mount for that case. The UCG-Fiber is a slightly different chassis and the bracket is sized for it specifically.

Wrap-up

The UCG-Ultra and UCG-Max do fit in a 10-inch rack — but only just. Measure your cabinet's interior depth and width before you commit. If you're at the entry-level cabinet tier, the Express family is the better fit; if you've got a proper 215 mm-wide / 250 mm-deep cabinet, the Ultra slides in cleanly. And if your build is heading toward more than four rack devices, the 19-inch frame is going to win on total cost-of-ownership within the year.
