If UniFi is the homelab default for SDN-style network management, Omada is the quieter alternative that keeps showing up in budget-conscious builds. TP-Link has been iterating Omada for long enough now that the lineup is coherent: a software-defined controller (free, self-hosted, or cloud), a family of gateway routers, a stack of switches that scale from 8 ports up, and a Wi-Fi 6/7 AP catalog that overlaps neatly with UniFi's. What Omada has never had — and what UniFi has always had, even imperfectly — is a deliberate rack-mount story. Most Omada gear ships in desktop chassis sized like SOHO equipment. Putting it in a 10-inch homelab cabinet means accepting some compromises and printing or buying a bracket for nearly every device.
This post walks through the three categories of Omada hardware homelabbers actually deploy — gateways, access points, and switches — and what each one needs to live cleanly in a 10-inch rack. The constraints are real but solvable, and the result, if you do it carefully, is a network stack that runs at roughly half the cost of an equivalent UniFi build.
Why Omada Shows Up in Homelabs
The honest pitch for Omada in 2026 is that it offers most of the centralized-controller experience for less money. The controller is free if you self-host. The hardware is generally a tier cheaper than the UniFi equivalent at the same port count. The gateway and switch firmware are mature, with VLANs, ACLs, port mirroring, and the small set of features homelabbers actually use. What you give up is the polish — the dashboard is a step behind UniFi's, the mobile app is not a daily-driver experience, and integrations with third-party tooling are thinner.
For a homelab where the goal is "give me a managed network without the UniFi tax," Omada is a defensible answer. For a homelab where you want to learn enterprise patterns, UniFi's Network application maps more directly onto what you'll see in commercial deployments. Either way, the rack is the rack — once the cables are punched down and the patch panel is wired, you are choosing controllers more than you are choosing a fundamentally different topology.
ER605 / ER7206: The Gateway Question
The Omada gateway lineup that matters for a homelab is short. The ER605 is the entry-level: a desktop SOHO router with one gigabit WAN and four gigabit LAN, no fans, and a footprint roughly 100 mm by 100 mm. The ER7206 is the next step up — a rackmount-form-factor SafeStream gateway with one gigabit WAN, multiple WAN/LAN ports, and a small fan. The ER8411 is the upper tier with multi-WAN and 10G uplinks, and is genuinely a small-business product more than a homelab one.
For a 10-inch rack, the ER605 is the natural fit. It is small enough that a 1U bracket holds it comfortably with room for a keystone breakout or two beside it. The chassis is plastic, which means it does not need ventilation gaps the way the Gold-class Firewallas do, and the heat dissipation at idle is barely measurable. The single drawback of the ER605 is that you cannot push it past gigabit — there is no 2.5G uplink path on the box itself. If your ISP is gigabit or below, this is fine. If you have 2 Gbps fiber, you'll be running into the WAN port's ceiling.

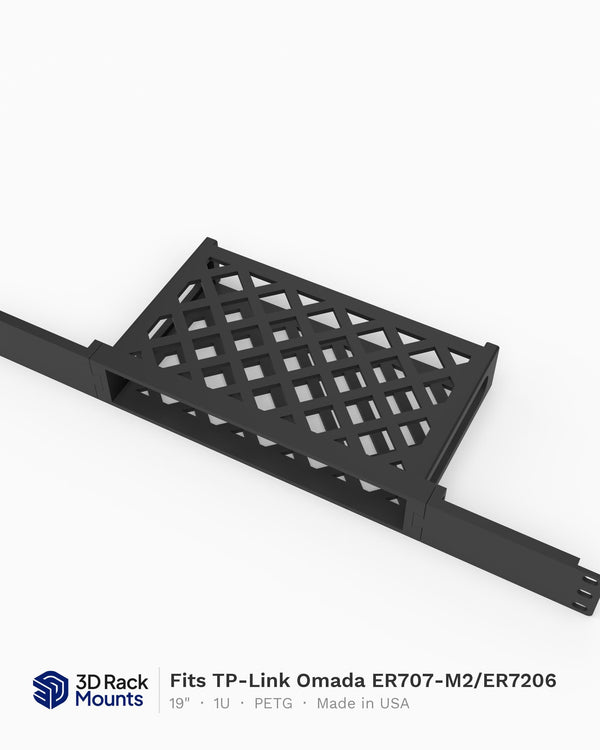

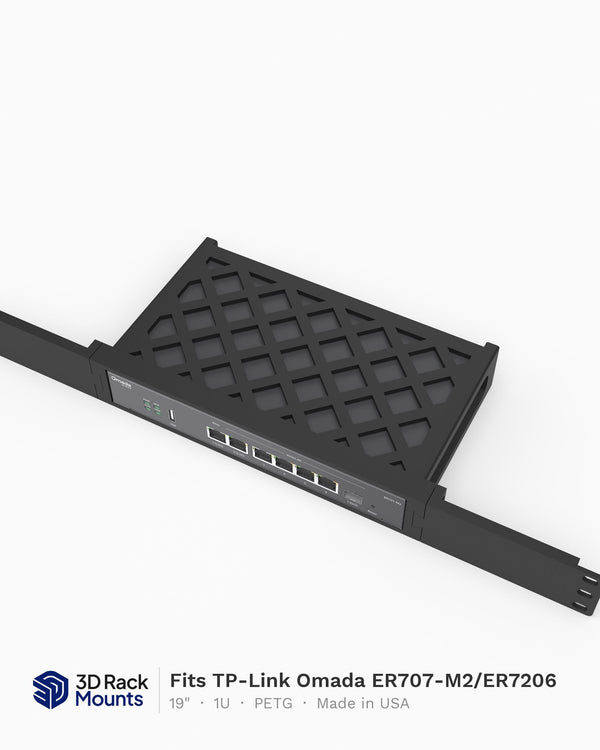

The ER7206 is technically a 19-inch product (the chassis includes flange ears for a standard rack). Putting it in a 10-inch cabinet requires a non-standard bracket and is not really worth the carpentry — at that size the device is competing with full UniFi gateways anyway, and the appeal of Omada in a 10-inch rack is the lower price-per-port at the small end. Most homelabbers running an ER7206 also have a 19-inch rack to put it in.
EAP620 / EAP670 / EAP690: Access Points That Don't Live in the Rack
This section is about access points, which is a slightly funny inclusion in a "rack" post — because the right place for an Omada AP is the ceiling, not the cabinet. The EAP620 HD (Wi-Fi 6, 2x2), EAP670 (Wi-Fi 6, 4x4), and EAP690E HD (Wi-Fi 6E, 4x4) are all designed for ceiling or wall mount and PoE+ injection. Putting one in a rack is a sign something has gone wrong with your physical install, but it does happen — temporary deployments, short-term offices, and lab benchmarking setups.
If you do need to mount an Omada AP in a rack, the constraint is that the EAP series radiates omnidirectionally and was designed assuming 2–3 meters of clear space below it. Mounted in a closed cabinet, you will see Wi-Fi coverage drop dramatically the moment you close the door. The cabinet is a Faraday cage approximation; an antenna inside it is doing nothing useful for the room outside.
The right answer is to terminate the AP's PoE drop in the rack — at a switch port — and run the cable out to a ceiling location. Use the PoE+ port budget on your Omada switch (more on that below) and do not be tempted to "save a cable run" by putting the AP at the top of the rack. It will not work the way you want.
The Omada Switch Family
This is where Omada gets interesting for a 10-inch rack, because TP-Link has been quietly building out a "Jetstream" switch lineup that hits a lot of homelab price points. The relevant models for a 10-inch build:
- TL-SG2008P — 8-port gigabit, 4 of which are PoE+, ~62 W total PoE budget. Desktop chassis, fanless, around 200 mm wide. Just barely too wide for a strict 10-inch rack interior, which means you need a bracket that hangs the switch slightly past the rails or a sled-style mount.
- TL-SG2210P / TL-SG2210MP — 8 ports gigabit plus 2 SFP, the MP variant adding 8 PoE+ ports with a larger budget. These are typically rackmount-form-factor 19-inch units and are not a clean fit for a 10-inch cabinet.
- TL-SG2218P — 16 PoE+ ports plus 2 SFP, 19-inch chassis with a single fan. Outside the 10-inch envelope.
- TL-SG3210XHP-M2 — Multi-gig PoE++, 19-inch only. Worth knowing about for the homelabber who outgrows the 10-inch and moves up.
Practically: in a 10-inch rack the switch you are mounting is almost always either the TL-SG2008P or one of the smaller fanless gigabit Easy Smart units (TL-SG108E, TL-SG116E). The Easy Smart units are not Omada-managed — they have their own web UI — but they are cheap and silent, and they fit the bill for a homelab where the controller is doing most of the policy work upstream of the switch.
The TL-SG2008P specifically is the most Omada-aware switch that physically fits a 10-inch rack with an off-the-shelf bracket. The PoE+ ports give you four AP drops with margin, the 2.5G-class throughput is gigabit-capped (per the chip), and the controller integration is full. The fanless design means it can sit anywhere in the cabinet without a thermal calculation. The mounting plane is the bottom of the chassis, with rubber feet, so any bracket that holds it in 1U needs to either capture the chassis from the sides or under-mount it on a sled.
Cooling, Noise, and the Realities of Closed Cabinets
Most Omada gear in a 10-inch rack is fanless. The ER605 has no fan. The TL-SG2008P has no fan. The Easy Smart switches are passive. This is good news for noise but it places the thermal burden on the cabinet itself. In a sealed 10-inch enclosure with 30–40 W of dissipation across the network gear, interior temperatures climb 8–12 °C above room ambient within an hour of cold start. Run that ambient at 24 °C and your interior hits 32–36 °C — uncomfortable for the gear, not failure-zone but not where you want to live.
The fix is one of three things. Add a small 80 mm or 92 mm cabinet fan to the top of the enclosure on a thermostatically controlled circuit (most 10-inch cabinets have prepared cutouts for this). Run vented blanking panels on the unused U slots so that the chimney effect of warm air rising actually has somewhere to escape. Or leave the cabinet door cracked permanently — which works thermally and ruins the noise floor for any device that isn't fanless.
For a pure-Omada 10-inch homelab the math usually works without active cooling, because the total dissipation is so low. The moment you add a non-Omada heat source — a mini PC, an SFF NAS, a UPS — that calculus changes.
Cable Management and Patching Patterns
Omada gear has the same SOHO cable problem as Firewalla: ports clustered tightly on one face of a desktop chassis. The ER605 has its WAN on the right and four LAN ports stacked beside it. The TL-SG2008P has eight ports in a single row. Neither one was designed assuming 1.5-meter Cat6 jumpers terminating into a structured cabling plant. In a 10-inch rack, the practical patch pattern is:
- Patch panel at the top. The 12-keystone-style patch panel at the top of the rack collects every wall drop. Below it, a 1U slot for the gateway. Below that, the switch.
- Short jumpers between panel and switch. 0.3 m or 0.5 m Cat6 jumpers between the patch panel and the switch. Color-code by purpose (orange for WAN handoff, blue for LAN trunks, green for AP drops), not by physical port number.
- One uplink between switch and gateway. Use one switch port as the trunk back to the ER605's LAN side. If you are running multi-VLAN, this is your tagged trunk. The other seven switch ports are for downlinks.
- Strain-relief at every port-dense bracket. The TL-SG2008P weighs about 0.7 kg. The combined weight of eight Cat6 patch cables hanging off it, with no strain relief, will eventually pull the switch off any sled mount that depends on rubber feet for grip.
One thing that bites Omada users specifically: the LED layout on the ER605 and TL-SG2008P is on the same edge as the ports. If you orient the device with ports facing outward — which is what you want for patching — you get the LEDs on the front of your rack, which is also what you want for diagnostic glance-checks. So far so good. But the labels for which LED maps to which port are tiny silkscreen, and they are upside-down relative to the way the device is rack-mounted in most brackets. The device chassis assumes a desktop orientation; the rack mount inverts it. Live with it, or print a small label strip and stick it above the LEDs.
The Omada Controller in a 10-Inch Build
You have three choices for hosting the Omada controller. Run it on an existing always-on machine in the homelab — a mini PC, a NAS that supports Docker, a Pi 4 or 5. Run it on TP-Link's hardware controller (the OC200, which is a small puck similar in form factor to a Raspberry Pi). Or use the cloud controller, which is free for the small-deployment case.
For a 10-inch rack the OC200 is the cleanest. It is roughly the size of a deck of cards, takes PoE in, and lives on top of one of the switch's PoE+ ports. There is no separate power supply to budget. A small 1U bracket with a keystone breakout makes the OC200 look like a first-class rack citizen. The disadvantage is that the OC200 is hardware you are buying specifically to host software that runs fine in a Docker container. If you already have a homelab mini PC, just put the controller there and skip the OC200 entirely.
Wrap-Up
Omada in a 10-inch rack is a viable homelab story if you treat it as what it is — a SOHO product line that has been quietly growing into something more capable, sold at a price that respects your wallet. The bracket ecosystem is thinner than UniFi's, which is part of why we keep printing new ones, but the underlying gear fits the constraints of a small cabinet better than you might expect.
The recommended starter stack is the ER605 in 1U, a 12-port keystone patch panel above it, and a TL-SG2008P on a sled below. Add an OC200 if you want a hardware controller, or self-host the controller on whatever box you are already running. Mount the access points in the ceiling where they belong, and run their PoE+ drops back to the rack. Done carefully, the whole build sits in 4–5U with room to grow, runs silent, and gives you a managed network at roughly half the price of the UniFi equivalent.
