Spectrum, Arris, Calix Modems: Mounting the ISP Box You Hate

Every clean rack has one object in it that the owner did not choose, cannot replace, and is not allowed to open: the modem the ISP handed over on install day. It arrives shaped for a desk — tall, glossy, meant to stand vertically on four rubber feet next to a router — and it comes with a coax or fiber tail that reaches back into infrastructure you do not control. You can build the tidiest 10-inch homelab on the internet and this one box will sit in it looking like a rental car in a driveway full of project cars. This post is about mounting it anyway, cleanly, and about the three specific boxes most homelabbers get stuck with: a Spectrum-supplied DOCSIS modem, an Arris Surfboard, and a Calix fiber unit.

The reason the ISP modem deserves its own write-up rather than a line in a general mounting guide is that it breaks the assumptions the rest of your gear follows. Your switch and your mini PC were designed by people who expected them to live in a rack. The modem was not. It has no mounting ears, no standard footprint, a connector on the wrong face, and a firmware you are contractually forbidden from touching. Mounting it is less about hardware and more about accepting a set of constraints and working around each one.

Why the ISP box is the worst-behaved object in the rack

Start with ownership, because it drives everything else. You do not own this device. When the ISP decides your DOCSIS 3.0 modem is now a DOCSIS 3.1 modem, a technician swaps it, and the replacement will have a different shape, a different vent pattern, and a different connector position. Any mount you build has to assume the thing inside it is temporary. That single fact — design for removal, not permanence — is the through-line for all three modems below.

Then there is the physical shape. Consumer network gear is designed to be seen on a shelf, which means it is tall and narrow with the ports clustered on the back and the status LEDs on a face meant to point at a human. Drop that into a rack and the LEDs now point at a side rail, the ports face into the cabinet, and the vents that were designed to move heat vertically off a desk are suddenly horizontal. A good modem mount does not just hold the box; it re-orients the box so the ports and vents end up where a rack expects them.

Finally, the tail. A modem is the one device in your rack physically tethered to the outside world by a cable you cannot re-terminate on a whim — coax for cable service, fiber for a PON handoff. Both have a minimum bend radius, and both punish you for ignoring it. That tail dictates where the modem can sit and which way it has to face, and it is the constraint people discover last, usually after the mount is already printed.

Cable versus fiber: two different animals wearing the word "modem"

Here is the gotcha that trips up anyone shopping for a mount by brand name alone. "Modem" is doing a lot of work as a word. A Spectrum or Arris Surfboard box is a cable modem: it speaks DOCSIS over RG-6 coax with a threaded F-connector, and it is fundamentally a radio that turns cable-plant RF into Ethernet. A Calix GigaPoint is the fiber side of the family — an optical network terminal that takes a glass handoff from a PON and converts light into Ethernet. They occupy the same slot in your topology (the thing between the ISP and your router) but they are not interchangeable, and their tails behave very differently.

Coax is forgiving in the way a garden hose is forgiving: you can bend RG-6 into a gentle curve behind the rack and it will keep working, though a hard kink will degrade signal and show up later as intermittent packet loss during rain. Fiber is not forgiving. An optical pigtail has a tight minimum bend radius, and violating it does not degrade gracefully — it attenuates the light until the link simply drops. When you mount a Calix, the fiber management matters more than the modem management. This is why the fiber unit and the cable units, even at the same 1U height, want to be handled as different design problems.

The three boxes, mounted

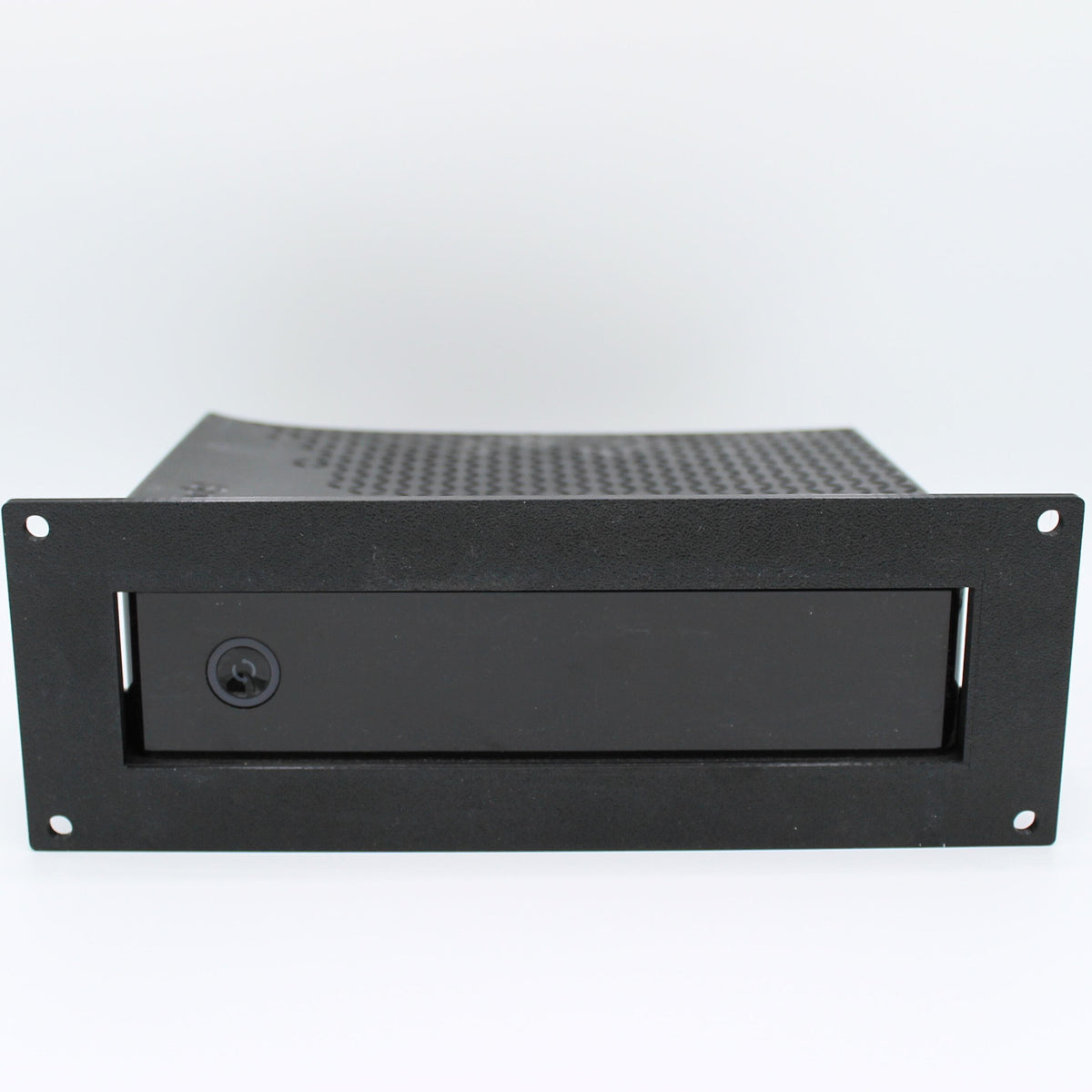

The catalog splits these along exactly the lines above. For the Spectrum-supplied DOCSIS 3.1 modems — the E31-series boxes Spectrum ships for gigabit cable plans — the 10" Spectrum Modem 2U Rack Mount captures the chassis and presents it to a 10-inch rack in a 2U window. It is printed in PETG rather than PLA specifically because a modem is a device that runs warm and unattended for years, and PETG holds its shape at closet temperatures that would let PLA sag over a long summer.

For the Arris Surfboard line — the SB8200, SB6141, and SB6190 — the 10" Arris Surfboard Modem Mini Rack Mount - SB8200 / SB6141 /SB6190 Models handles the Surfboard's narrower, taller profile in a single U, and it ships with a keystone and an Ethernet cable so the handoff from modem to router lands on the front of the rack instead of being fished around the back. That keystone detail matters more than it sounds: it turns the modem's rear-facing Ethernet port into a clean front-panel jack, which is the difference between a rack you can re-patch in ten seconds and one you have to reach behind.

For fiber, the 10" Calix GP1101X GigaPoint Modem Mini Rack Mount - 1U holds the GigaPoint in 1U and, more importantly, positions it so the optical handoff has somewhere sane to go. All three are 10-inch-rack parts by default, and all three have 19-inch equivalents for people running a full-width cabinet — the mounting logic is identical, only the rail spacing changes.

Why the Spectrum box wants 2U and the others do not

The height difference between these mounts is not arbitrary, and it is worth understanding because it generalizes to every device you will ever try to rack. One U is 44.45 mm of vertical rack pitch — the EIA-310-D unit for 19-inch racks, and the same pitch the 10-inch mini-rack world borrows. A device fits in 1U when its shortest usable dimension, once you have rotated it into the orientation the mount needs, comes in under that height plus a little clearance for airflow.

The Arris and Calix boxes are slim enough that, laid on their sides in the mount, they fit a single U with room for air to move. The Spectrum DOCSIS 3.1 unit is a physically larger box — more silicon, a bigger internal power supply, and correspondingly more heat — and forcing it into 1U would mean pressing its vents against a panel and choking the airflow it needs. Two U here is not the mount being generous; it is the mount respecting the fact that a hotter box needs its vents open. Cramming a warm device into the smallest possible slot to save a rack unit is the classic false economy, and a modem that thermally throttles or resets during a heat wave is a genuinely annoying way to learn it.

Heat, the coax tail, and designing for the inevitable swap

A cable or fiber modem is a low-wattage device compared to a mini PC — you are dealing with single-digit-to-low-double-digit watts, not a CPU under load — so the thermal problem is not raw heat output. It is trapped heat. These boxes were designed to convect heat off a desk with open air on all sides, and a rack takes most of that open air away. The fix is not a fan; it is not blocking the vents. Mount the modem so whichever face carries its ventilation slots stays open to the cabinet's airflow rather than pinned against a solid surface, and it will run at the temperature its designers intended.

The tail is the other daily reality. For the cable modems, give the coax a lazy curve rather than a sharp turn as it leaves the F-connector; RG-6 tolerates a bend but a hard kink degrades the RF and the failures it causes are intermittent and maddening to chase. For the Calix, treat the fiber as the delicate thing it is: leave a generous service loop, never let it turn a corner tighter than its rated radius, and keep it clear of anything that could pinch it when a neighboring device slides out.

And then design the whole arrangement around the swap you know is coming. A few things make that painless:

• Keep the modem near the edge of the rack, not buried behind three other devices, so a technician (or you) can pull it without dismantling half the stack.
• Leave slack in both the coax/fiber and the Ethernet, enough that the box can come forward out of its mount for a swap without you having to disconnect anything upstream.
• Do not permanently cable-tie the modem into the bundle. Velcro, not zip ties, on anything touching a device the ISP owns and will replace on their schedule.

The point is that a modem mount succeeds not when it holds the box firmly — that is easy — but when it lets you remove and replace the box in two minutes eighteen months from now, when the ISP decides your hardware is obsolete and hands you something a slightly different shape.

Wrap-up

The ISP modem is the one device in your rack you did not spec, cannot flash, and will not keep forever, and every good decision about mounting it flows from accepting that. Match the mount to what the box actually is — a warm DOCSIS 3.1 unit in 2U for the Spectrum hardware, a slim Surfboard in 1U with a keystone to bring Ethernet to the front, a fiber GigaPoint in 1U with the optical tail treated as the fragile thing it is. Keep the vents open, give the tail a gentle radius, and build for the swap you cannot schedule. Do that and the box you hate stops being the eyesore of the rack and becomes just another 1U or 2U line in a stack that looks like you meant all of it.
