Calix and Arris Modems in an SMB Closet: Mounting Cleanly

Walk into enough small-business network closets and you learn to spot the ISP handoff before you find the switch. It is the device sitting on the floor, or zip-tied to a wire shelf, or balanced on top of the UPS with its coax draped across the room, blinking away underneath a layer of dust. Whoever installed it was there to deliver a working circuit, not to build a closet someone would service for the next decade, and it shows. For the MSP or internal IT person who inherits that closet, the ISP modem is a small problem that causes a disproportionate amount of grief: it is the one device you did not choose, cannot manage, and will be blamed for anyway when the circuit goes down at 4:45 on a Friday.

The two boxes you meet most often in the field are a Calix fiber unit and an Arris Surfboard cable modem. This is about getting both of them off the floor and into the rack cleanly — not because it looks nicer, though it does, but because a mounted, labeled, documented modem is a modem that any tech on your team can service without a phone call, and that is worth real money over the life of an account.

A closet is not a homelab, and the modem is where that shows

A homelabber mounts their ISP modem because it bothers them. In an SMB closet the reasons are operational, and they change the priorities. Three things matter that do not matter at home.

The first is that someone else will service this closet. Maybe a different tech on your team, maybe the client's "computer guy," maybe you in two years having forgotten every decision you made today. The install has to be legible to a stranger. A modem zip-tied into a bundle with no labels is a puzzle; a modem mounted in a clearly marked 1U slot with its circuit ID on the front is a five-second orientation.

The second is client optics. You are charging this business for professional IT, and the closet is the physical evidence of what they are paying for. A rack where the ISP handoff is racked and labeled to the same standard as everything else tells the client their money bought competence. A modem on the floor tells them the opposite, regardless of how well the network actually runs.

The third is uptime accountability. When the circuit drops, the modem is the first thing you or the ISP will need hands on. If it is buried behind the UPS and lashed into a cable bundle, your mean time to repair just grew by however long it takes to excavate it. Mounted at the edge of the rack, it comes out in the time it takes to loosen two connections.

The two boxes you actually see in the field

As with the homelab side, the important distinction is cable versus fiber, because it dictates how you handle the tail and where the demarcation point lives. The Arris Surfboard family — the SB8200 for DOCSIS 3.1 gigabit plans, the older SB6141 and SB6190 for DOCSIS 3.0 — are cable modems: RG-6 coax with a threaded F-connector coming off the building's cable plant. The Calix GigaPoint is a fiber optical network terminal, converting a PON handoff from glass into Ethernet. In a fiber-served building the Calix is the demarc; in a cable-served building the coax comes in from the street and the Arris is the first active device on your side of it.

That difference is the whole game when it comes to the tail. Coax tolerates a reasonable bend and a Surfboard's RG-6 will survive being routed around the back of a rack, though a hard kink will cause the kind of intermittent, weather-correlated packet loss that eats an afternoon to diagnose. Fiber does not negotiate: an optical pigtail has a hard minimum bend radius, and if you force it tighter the link attenuates and drops rather than degrading politely. When you mount a Calix, fiber management is not a nicety, it is the job.

Getting both boxes into the rack

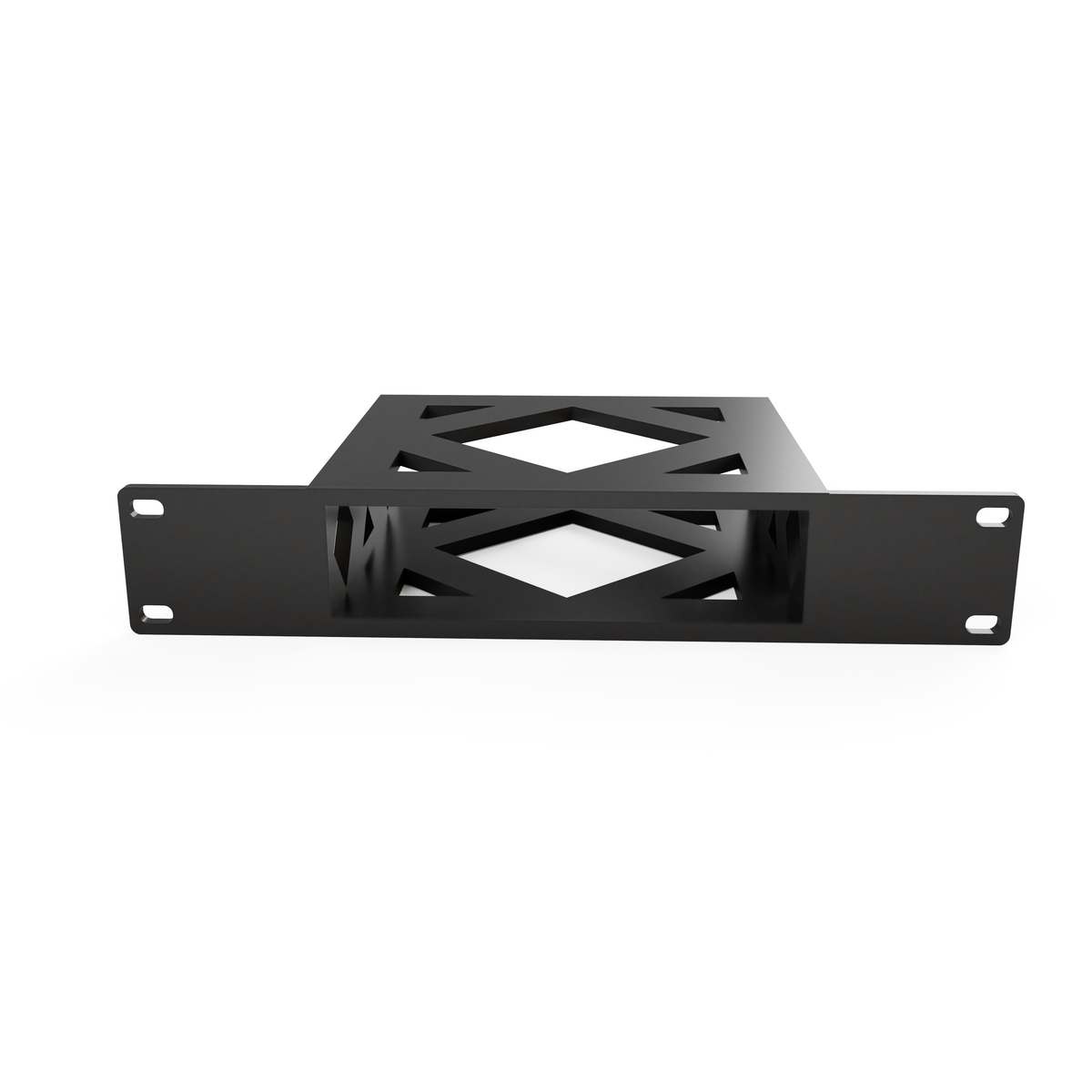

For the cable side, the 10" Arris Surfboard Modem Mini Rack Mount - SB8200 / SB6141 /SB6190 Models takes the Surfboard's tall, narrow desk profile and lays it into a single rack unit. It ships with a keystone and an Ethernet cable, which is the detail that earns its keep in a client closet: the modem's rear Ethernet port becomes a labeled front-panel jack, so the handoff into your firewall or switch is visible and re-patchable from the front of the rack instead of being something you fish for in the dark behind three other devices.

For fiber, the 10" Calix GP1101X GigaPoint Modem Mini Rack Mount - 1U holds the GigaPoint in 1U and gives the optical handoff a defined home rather than a loop of fiber dangling under strain. Both parts are printed in PETG, which matters in a closet more than at home: SMB network closets are frequently unconditioned, poorly ventilated rooms that hit temperatures a summer afternoon would not forgive in a lesser plastic, and PETG holds its shape where PLA would slowly droop. Both come in 10-inch versions for the compact wall-mount racks that suit a small closet, with 19-inch equivalents when the site runs a full cabinet.

One rack unit is 44.45 mm of vertical space — the EIA-310-D standard the whole rack world is built on — and both of these boxes fit inside it once the mount rotates them into the correct orientation. Give each one's vented face clearance to the closet's airflow rather than pinning it against a solid panel; these are low-wattage devices, so the enemy is trapped heat, not raw output, and the fix costs nothing but attention.

Standardize so any tech can service it

The single highest-leverage thing you can do with a mounted modem in a client closet is make it self-documenting. A rack that explains itself is a rack that does not generate phone calls to whoever built it. That means, at minimum:

• Label the circuit on the front. The ISP account number, the circuit ID, and the support phone number on a printed label facing out. When the circuit drops, the person standing in the closet should not have to log into anything to know who to call and what to reference.
• Follow a labeling convention across the fleet. If you manage more than a handful of sites, adopt a scheme — TIA-606-C is the formal standard, but even a consistent house style beats ad hoc — so a modem labeled at one client reads the same as one labeled at another. Consistency is what lets a second tech walk in cold.
• Photograph the finished closet. A dated photo of the racked, labeled handoff in the client's documentation is worth an hour of description. It also protects you: when the ISP swaps hardware and re-routes the coax across the floor on their next visit, the before photo shows whose mess it is.

None of this is about the modem specifically. It is about treating the ISP handoff as a first-class citizen of the rack rather than an embarrassing exception, so that the professionalism of the install does not stop at the edge of the gear you happened to choose.

The demarc and the swap you do not control

The hard truth of the ISP box in a business closet is the same as at home, only with a contract attached: you do not own it, and the ISP will swap it on their schedule, not yours. When they upgrade the plan, when the hardware is deprecated, when a truck roll replaces a flaky unit, the box changes shape and the tech doing the swap has no stake in your tidy rack. Design for that.

Keep the modem at an accessible edge of the rack so a swap does not require dismantling the stack. Leave a service loop in both the ISP tail and the Ethernet, enough that the box can slide forward out of its mount without disconnecting anything upstream of it. Use hook-and-loop rather than zip ties on anything touching ISP-owned hardware, so the next person — possibly a carrier tech with a screwdriver and no patience — can get in and out without cutting your cable management to pieces. And note where the demarcation point actually is: on fiber, the Calix is generally the boundary between the carrier's responsibility and yours, and knowing that line precisely is what keeps a downtime call from turning into an argument about whose fault it is.

Wrap-up

The ISP modem is the piece of a client closet you inherit rather than choose, and mounting it cleanly is one of the cheapest ways to make a network look and behave like it is professionally managed. Get the Arris cable modem and the Calix fiber unit off the floor and into 1U, bring the Ethernet to a labeled front jack, respect the fiber's bend radius, and document the whole thing so any tech on your team can service it cold. The modem will still be the one box you cannot manage — but it will stop being the one that makes an otherwise clean closet look like an afterthought, and it will stop costing you time every time the circuit hiccups.
