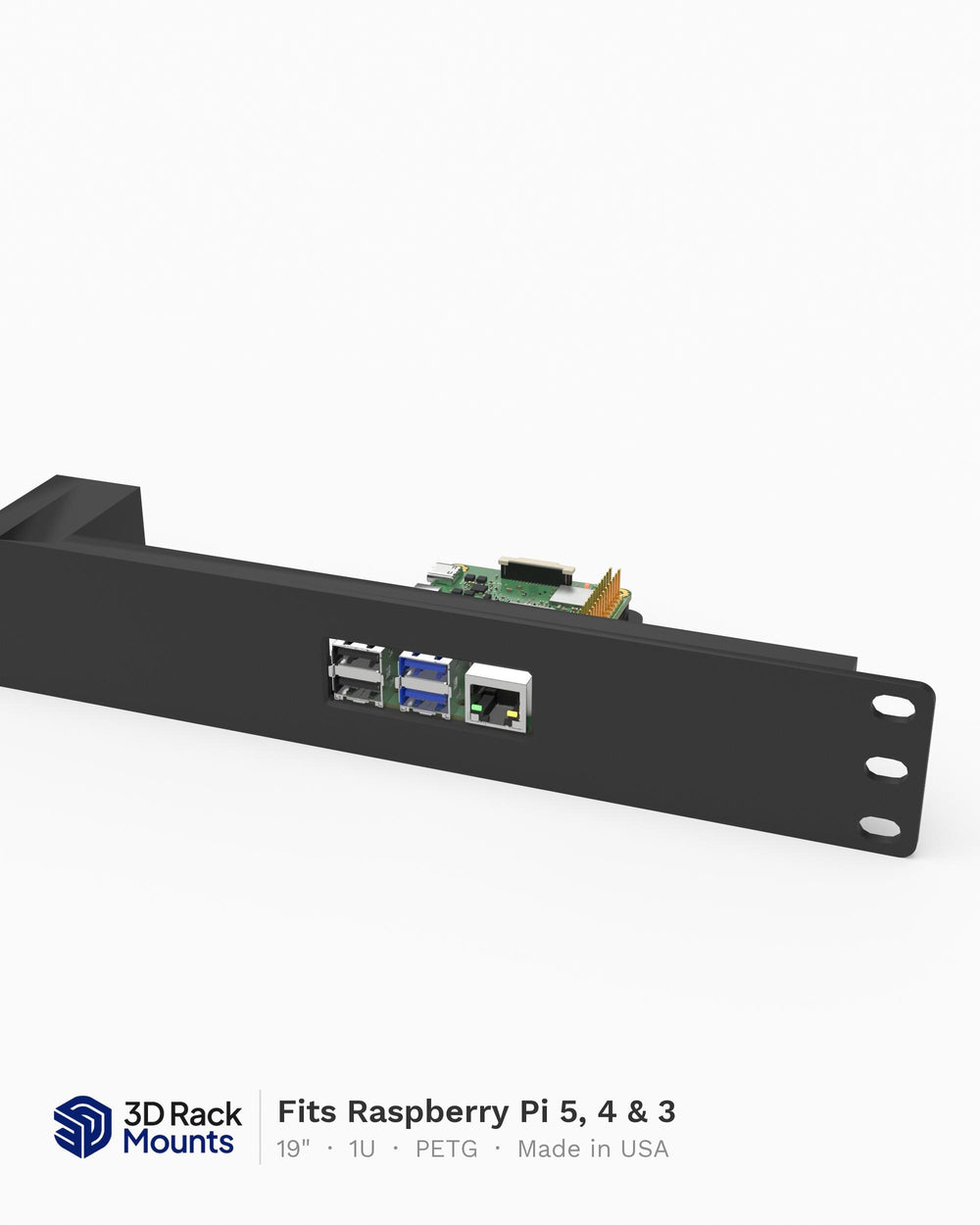

19" Raspberry Pi 5, 4 & 3 Rack Mount 1/2/3/4/5 Configuration - 1U (Modular)

Puts your Raspberry Pis in a 19" rack at 1U, from one board up to five across the row. Each Pi screws down on its own standoffs with the USB and Ethernet ports facing out the front, and the top is left open for HATs and coolers.

CONFIGURATIONS

• 1x or 2x Pis: one mount half plus a blank half. Fills the full 19" row. Pick the side of the rack you want the Pis on.
• 4 Pis: two mount halves, two Pis on each.
• 3 or 5 Pis: a three-piece set that fills the row on its own.

FITS

• Raspberry Pi 5
• Raspberry Pi 4 Model B
• Raspberry Pi 3 Model B and 3 Model B+

⚠️ Before you order the 5: the two Pis next to the joins have their HDMI and audio ports against the join, so run those two headless. Power, USB and Ethernet reach on all five.

WHAT YOU GET

• The printed pieces for the configuration you pick, the hardware to join them, and 4 M2.5 screws per Pi. The screws thread straight into the printed standoffs.
• Rack screws are not included. Use whatever your rack takes.

MODULAR
The 1x, 2x and 4 are part of my Modular Series, so a half swaps for any other 1U Modular Series mount later. Pieces pair within the same U height.

MATERIAL
PETG, not PLA. It holds its shape in a warm rack where PLA starts to soften.

A 10" mini rack version is also listed in my shop. 💬 For any custom design requests please message me.
