The Rack-Mounted Streaming Stack: Apple TV 4K, Shield TV Pro, and Roku Ultra

Streaming boxes are the last thing most people move into the rack, and usually the thing they regret leaving out. The AV gear migrates first — the receiver, the amp, the matrix switch, anything that already came with ears. The streamers stay behind on a shelf, or balanced on the receiver, or wedged into the gap behind a wall mount where nobody can reach the power cable. Three of them, three power bricks, three HDMI runs, and a remote that only works if you stand in exactly the right spot.

They get left behind because they are awkward to rack. A streamer is small, warm, full of radios, and at least one of them expects to see an infrared remote. None of that is fatal, but together it means you cannot treat a streaming box the way you treat a mini PC. Get it wrong and you get thermal throttling in the second half of a movie, a remote that works from the couch but not the doorway, or a Wi-Fi link at one bar because you buried the antenna in a steel cabinet.

The mount for this build:

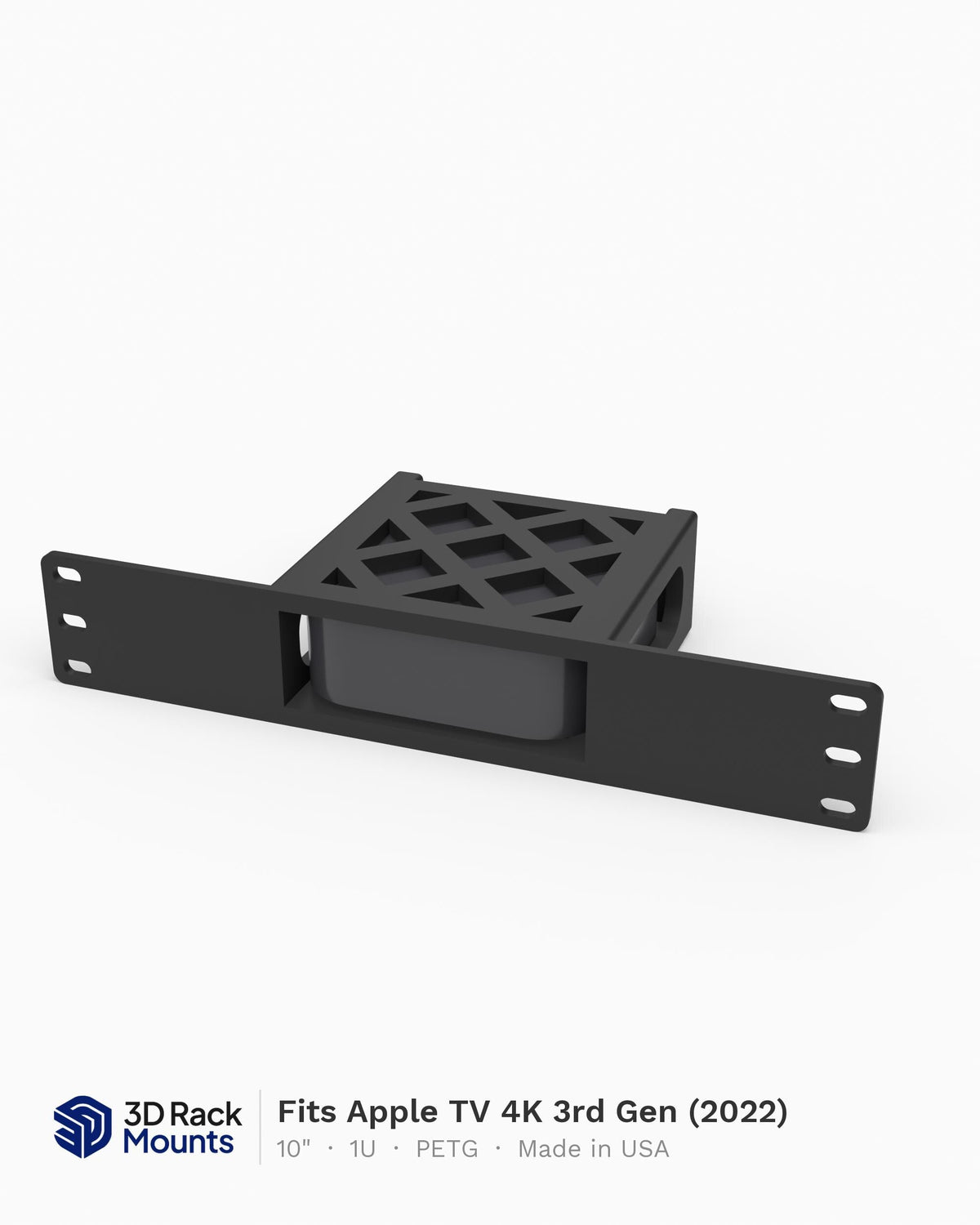

Apple TV 4K 3rd Gen (2022) 10" Mini Rack Mount - 1U

What you are actually mounting

The three boxes that show up in homelab AV racks over and over are the Apple TV 4K, the Nvidia Shield TV Pro, and the Roku Ultra. They are close enough in purpose that people own more than one, and different enough physically that a single universal tray handles none of them well.

The current Apple TV 4K is the smallest of the three by a wide margin — roughly 93 mm square and about 31 mm tall, with the power supply inside the chassis. That last detail matters more than the dimensions do: no brick to find a home for, just a cord out the back, which is the single biggest reason it is the easiest of the three to rack cleanly. The 2021 model is close in footprint but taller, heavier, and fan-cooled; the 2022 model is not. Know which one you have before you buy a mount.

The Shield TV Pro is the outlier. It is the long, low, squared-off slab — roughly 160 mm on its long axis, with a real ventilation strategy and an external power brick you still have to deal with. It is also the only one of the three with USB ports people actually use, which means you want the back of it reachable rather than shoved against a rail.

The Roku Ultra is the puck — small, light, plastic, and the one most likely to get pulled forward by the weight of its own HDMI cable if you do not restrain it. It is also the one most dependent on IR, which drives the whole front-panel question below.

Heat: small boxes, small margins

None of these devices dissipate much. A streamer at idle is in the low single digits of watts, and even decoding 4K HDR with a busy interface on top you are talking about something in the range of 8 to 15 watts for the hungrier boxes. That is nothing next to a mini PC, let alone a switch with PoE budget.

The gotcha is that the thermal design assumes free air on every surface, because the designers assumed a living-room shelf. The Apple TV 4K 2022 is passively cooled through its own body, with the bottom surface doing real work. Set it on a solid tray with no gap underneath and you have removed a meaningful fraction of its cooling surface for nothing.

So the rules are mundane but they are not optional:

• Leave the bottom face open, or at minimum vented. A mount that carries the device by its edges beats one that lays it on a solid plate.
• Do not stack a streamer directly underneath something that runs hot. A PoE switch pushing 60 or 70 watts of budget into a mini rack warms the air above it, and a passively cooled box sitting in that column is now cooling itself with pre-heated air.
• If the streamer has a fan — the 2021 Apple TV 4K, some Shield configurations under sustained load — make sure the intake is not facing a rail or a blanking panel 6 mm away.

The 10" Nvidia Shield TV Pro Mini Rack Mount - 1U exists as its own part rather than a generic tray largely because of where the Shield's vents are. A mount that got that wrong would work fine for a week and then start dropping frames in the third act.

Infrared is the thing that bites people

Here is the gotcha that catches almost everyone on the first attempt. The Apple TV and the Shield both use Bluetooth remotes, so the box can live anywhere it has power and network. The Roku Ultra ships with a remote that is Wi-Fi-direct capable but still supports and often falls back to IR, and plenty of universal remote setups drive all three over IR through a learning remote or a control system.

The moment you put an IR receiver behind a closed cabinet door, a smoked acrylic panel, or a 2U blanking plate, you have broken it. Not degraded — broken. IR is line of sight, full stop.

You have three ways out:

• Mount it facing forward, unobstructed. The device sits in a mount whose front is open, the IR window faces the room, done. This is the reason a good streamer mount puts the front face of the device flush with or just behind the rail plane rather than recessed 40 mm back.
• Run an IR repeater. An emitter bud taped over the device's receiver window, a receiver eye out in the room, and a small distribution block. This is what AV installers do and it works reliably, but it is another small box and another power supply.
• Switch to Bluetooth or IP control entirely. For Apple TV and Shield this is the easy answer. For the Roku, the app and the Wi-Fi remote cover most of it, but check that your specific remote is the Wi-Fi model before you rely on it.

If you are putting the streamer in an enclosed cabinet with a solid or smoked door and you have not solved IR before you close the door, you will solve it afterward with the door open and a torch in your mouth. Decide first.

Radios, metal, and the antenna question

Every one of these boxes has Wi-Fi and Bluetooth, and in the case of the Apple TV and the newer Shield hardware, a Thread radio as well, which quietly matters if you are using the Apple TV as a HomeKit hub or the Shield as a Matter controller. You are taking a device designed to sit in open air in a living room and putting it inside a partially enclosed metal box.

How much this hurts depends entirely on the rack:

• An open-frame 10-inch rack or a two-post with no side panels: negligible. The metal is nowhere near the antennas.
• A vented cabinet with mesh doors: measurable but survivable. You lose signal margin, not the link.
• A sealed cabinet with steel sides and a solid door: a Faraday cage with a hinge. Expect real degradation.

The practical answer is to run every one of these boxes on Ethernet. All three have a wired port — gigabit on the Ethernet-equipped Apple TV and the Shield, 100 Mbit on the Roku Ultra, which is still four times what a 4K HDR stream needs. Wired means the Wi-Fi radio stops mattering for streaming, and you are left worrying only about Bluetooth for the remote and Thread for home automation, both short-range and forgiving of a few dB of loss.

If the streamer is doubling as a smart-home hub, keep it out of the most enclosed part of the rack. A Thread border router in the bottom of a sealed cabinet behind a steel door is a Thread border router that will make you wonder why your sensors are flaky.

Power, cable weight, and the brick problem

The Apple TV 4K 2022 has its supply inside the box, so it takes a cord and nothing else. The Shield TV Pro and the Roku Ultra both use external supplies, and those bricks go one of three places: velcroed to a side panel, sitting on the shelf behind the device, or dangling off the back of the rack where they slowly work the barrel connector loose.

The third option is the one that fails. A 150-gram brick hanging on a 2 mm barrel plug is a slow-motion intermittent fault, and it presents as random reboots six months later when you have forgotten you did it.

Cable strain is the same problem in miniature. A stiff 4K-rated HDMI cable has real spring force in it, and the Roku Ultra weighs almost nothing. If the mount does not restrain the device, the cable will reposition it. Any mount worth using either captures the device mechanically or gives you a tie-down point within about 50 mm of the connector. Use it.

One more: keep HDMI runs short and away from the power side of the rack. Cheap HDMI cable next to a switching supply is a sparkle-and-dropout generator, and it only shows up on high-bitrate HDR content, which is exactly when you care.

10-inch versus 19-inch for AV gear

Streamers are small, and that makes the 10-inch mini rack genuinely appealing. A 10-inch rack gives you roughly 254 mm of external width and a usable equipment opening a good deal narrower than that — plenty for a 93 mm Apple TV or a 160 mm Shield laid across, and it keeps the whole AV stack in a footprint that fits in a media console.

Three devices at 1U each in a 10-inch rack is 3U of space, which at 44.45 mm per U is about 133 mm of vertical. Add a small switch and a patch panel and you have a complete AV network in 5U — call it a 300 mm tall box on the shelf under the television.

The case for 19-inch is about company. If the streamers are joining a rack that already has a receiver, a distribution amp, or anything else built to 19-inch ears, put them on 19-inch and stop thinking about it. A modular mount like the Apple TV 4K 3rd Gen (2022) Rack Mount - 19" 1U (Modular) puts two or three small devices across a single 1U — a far better use of the rail than one 93 mm box floating in 450 mm of air.

A 19-inch rail is 482.6 mm wide overall, 465 mm between mounting hole centres. An Apple TV occupies about a fifth of that. If you are going 19-inch and not filling the width, you are paying rack height for empty space.

A layout that works

Here is the arrangement I would build if you handed me all three boxes and a 6U mini rack.

Top: patch panel. Terminations where you can reach them, copper away from the power supplies at the bottom.

Below that: the switch. Small, fanless if you can manage it, because this rack is going to live in a room where people are trying to listen to things. A fan in a media room is an adversary you chose.

Middle: the streamers, front faces forward and unobstructed. This is the IR zone. Nothing goes in front of them, no door, no smoked panel, no cable bundle drooping across a receiver window.

Bottom: power. A strip or a small PDU, with the external bricks for the 10" Roku Ultra Mini Rack Mount - 1U and the Shield secured down here rather than hanging. Heat rises, so if the rack is enclosed, put a vented shelf between the power section and the AV section.

The one thing I would not do is interleave — putting a streamer between two warm devices to make the front panel look tidy. Thermal grouping beats visual grouping, and in a rack this small the difference is a few degrees of intake temperature on a passively cooled box.

Wrap-up

The streaming stack is the easiest AV racking job there is, provided you handle four things: leave the bottom face open, keep the IR window looking at the room, run Ethernet so the Wi-Fi question stops mattering, and secure the power bricks instead of letting them hang. Everything else is layout preference.

The decision that actually costs money if you get it wrong is 10-inch versus 19-inch, and that one is settled by what else is in the rack rather than by the streamers themselves. Three small boxes alone belong in a mini rack. Three small boxes joining a receiver belong on 19-inch rails, ideally sharing a modular 1U so you are not spending a full rack unit on a device the size of a coaster.
