Beelink SER8 in the Rack: Ryzen Mini PC Thermals, Power, and Mounting

The Beelink SER8 is the machine people buy when they have decided a Raspberry Pi is not enough and a used tower is too much. It puts a Ryzen 7 8845HS — eight Zen 4 cores, sixteen threads, a Radeon 780M on the same die — into a chassis roughly 125 mm square and a little over 40 mm tall. That is a real workstation CPU in a box the size of a hardcover novel, and it behaves like one: it is quiet when idle and it makes noise when you actually use it.

Which is exactly why it needs some thought before it goes in a rack. A mini PC that idles at single-digit watts and peaks near a hundred is not a passive device you slot in and forget. It moves air, it wants clearance, and its fan curve responds to what is stacked directly above and below it. This post covers what the SER8 actually draws, where the heat goes, and how to mount it at 2U without fighting it.

The mount for this build:

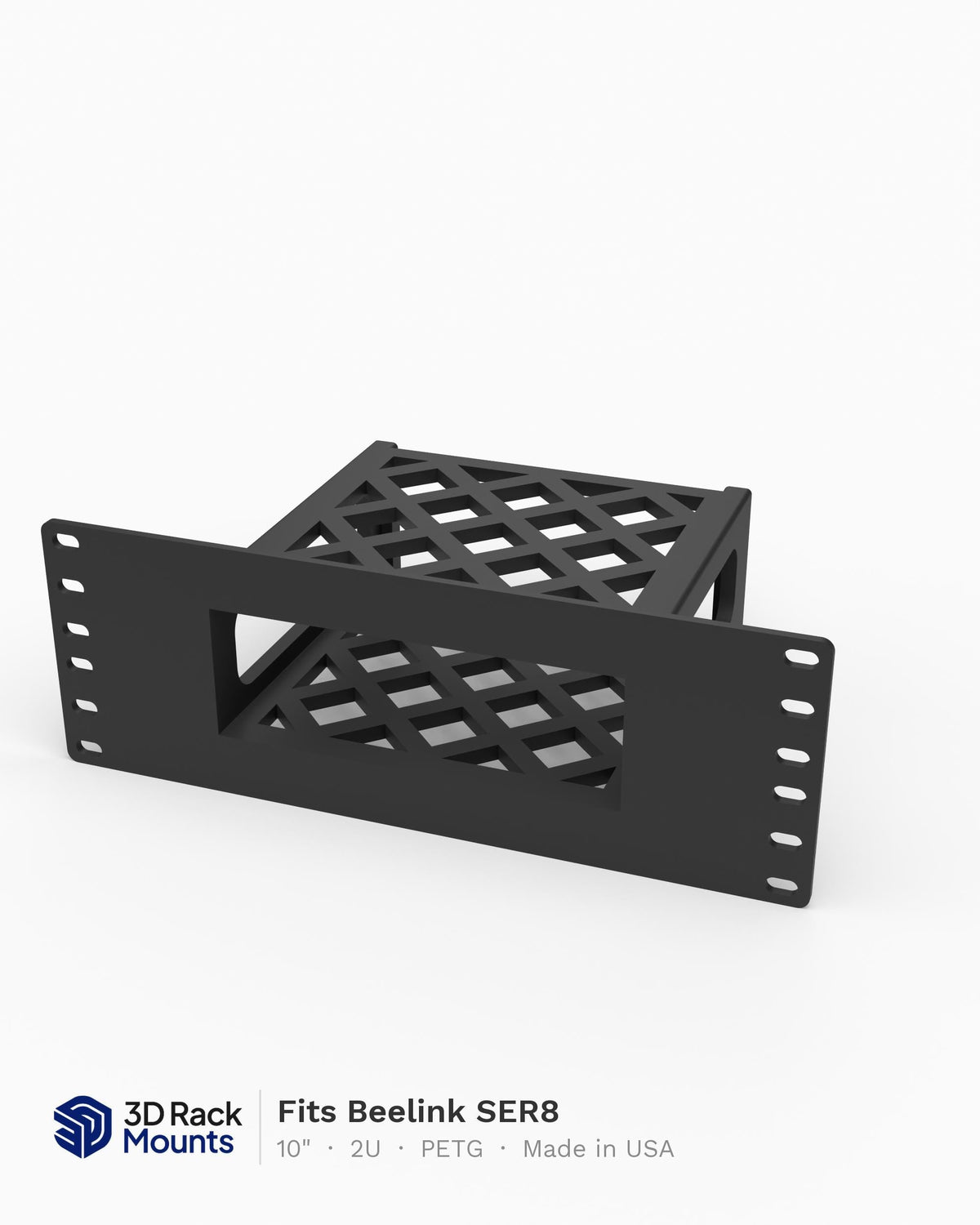

Beelink SER8 SER9 & SER9 Pro 10" Mini Rack Mount 2U

What you are actually racking

The SER8 shipped in the 8845HS configuration most people mean when they say "SER8," though Beelink has used the same shell for a couple of SKUs. That matters more than the silicon does for mounting purposes: Beelink carried the SER8 chassis forward into the SER9 and SER9 Pro without changing the footprint, so a mount cut for one holds all three. It does not hold the SER5, SER6, or SER7 — those are an earlier, differently proportioned shell, and people get caught by this regularly because the model numbers imply a continuum that the physical hardware does not honor.

Physically, the relevant facts are the height and the intake. The chassis sits a little above 40 mm. A rack unit is 44.45 mm. So on paper the SER8 fits in 1U with a few millimeters to spare, and every so often someone emails asking why there is no 1U SER8 mount. The answer is that "fits in 44.45 mm" and "fits in 1U with a mount around it" are different claims. A mount needs material under the device, a front face with structure in it, and — critically — it needs to not seal the bottom intake against a flat plate. Once you account for those, you are into 2U. Anyone selling you a 1U SER8 mount is either shipping something that flexes or something that suffocates it.

The thermal story, and the fan curve gotcha

The 8845HS is nominally a 45 W part with a configurable TDP that Beelink runs higher than the floor. Under a sustained all-core load the package will sit in the neighborhood of 50 to 65 W, and the small blower has to move that heat through a heatsink with very little surface area. It does it — the SER8 does not throttle hard in normal use — but it does it by spinning up.

The gotcha: the SER8 pulls most of its intake air from the bottom of the chassis, through a perforated panel, and exhausts out the back. Sit it flat on a solid shelf and you have restricted the intake to whatever gap the rubber feet leave. Sit it on a mount that keeps the underside open to the room and the same workload runs several degrees cooler, which shows up directly as fan RPM. This is the single largest thermal variable in the install and it costs nothing to get right.

The practical implications for a rack:

• Do not mount anything with a solid bottom plate directly under it, especially not a full-width blank in the U immediately below.
• Keep the rear clear. The exhaust is directed and short-range; a bundle of patch cables 30 mm behind the unit will recirculate warm air straight back into the intake path.
• In a closed cabinet, the SER8 is a heat source worth budgeting for. At sustained load it is contributing on the order of 300 BTU/hr. That is not much on its own, and it is a lot if there are three of them and no ventilation.

If you are building the row now rather than later, the Beelink SER8 SER9 & SER9 Pro 19" Rack Mount 2U (Modular) ships with a blank half that you can swap for another 2U Modular Series mount when the second machine arrives, which saves you re-planning the row.

Power draw and what it means for your UPS

Real numbers matter here because mini PCs are consistently mis-sized on paper. The SER8 ships with a barrel-jack brick in the 120 W class, and people size UPS runtime off the brick rating. That is wrong by a factor of three or more for most of what the machine does.

At genuine idle — desktop up, nothing running — the SER8 draws roughly 10 to 15 W at the wall. Light server duty, which is what most of these do in a homelab, tends to land somewhere in the teens to low twenties. A sustained all-core compile or transcode will push it toward 80 to 100 W at the wall including conversion losses. So the useful planning figure is not 120 W; it is about 20 W steady with headroom for short excursions.

Practically, that means a small consumer UPS carries two or three of these through a meaningful outage window, and it means the power side of a mini-PC rack is almost never the constraint. The constraint is airflow and, in a 10-inch cabinet, physical depth. Which brings us to the mount.

Mounting it: the 2U decision

Every mount in this catalog starts from a printed test fit against the actual device, not a spec sheet, because manufacturer dimensions are rounded and chassis tolerances drift between production runs. For the SER8 the design settled at 2U for the reasons above: an open underside, a front face with enough section to stay rigid across the span, and clearance at the rear so the exhaust is not deflected back into the box.

The 10-inch version is the one most homelab readers want. Ten-inch mini racks are shallow — usually somewhere around 180 mm of usable depth behind the rails, sometimes less — and the SER8 fits that envelope comfortably with room for the barrel jack and an Ethernet cable behind it. The Beelink SER8 SER9 & SER9 Pro 10" Mini Rack Mount 2U is printed in PETG rather than PLA specifically because PLA starts to lose stiffness around 55 to 60 °C, which is not a hypothetical temperature for a plastic part sitting directly under a warm mini PC in a closed cabinet.

The 19-inch version is the same holder geometry with a modular half beside it. If you are running a 19-inch rack, that half is the useful part: a 2U-wide gap next to a mini PC is dead space, and the modular system lets you fill it later with whatever the next device turns out to be rather than committing now.

Rack screws and the thing nobody mentions

Mounts do not ship with rack screws, deliberately — 10-inch cabinets are inconsistent about whether they use M6, M5, or 10-32, and shipping the wrong ones is worse than shipping none. Check what your rack takes before the mount arrives. If it is a threaded-rail cabinet, verify the thread; if it is square-hole, you need cage nuts. This is a five-minute problem that becomes a three-day problem when you discover it on a Saturday evening.

Cabling and the front-panel drop

The SER8 puts its Ethernet, USB, and display outputs on the rear, which is correct for a desk and mildly annoying in a shallow rack where the rear is where your patching already lives. Two approaches work.

The first is to accept it: run a short patch cable from the SER8's rear port to whatever switch is in the rack and leave the front face clean. In a 10-inch cabinet with a switch two U away, a 0.25 m or 0.5 m cable does the job and produces no visible slack.

The second is to bring a drop to the front. The 10-inch mount is available with one or two keystone holders beside the device, and the keystone options include the RJ45 jacks and short patch cables to go with them. This is worth doing if the SER8 is a machine you plug things into — a build box, a test node, anything where you occasionally want a laptop on the same segment without walking around the rack. If it is a headless always-on server, skip it and keep the face clean.

Where the SER8 fits in a homelab

Eight Zen 4 cores and a 780M is enough machine to be the primary node in a small cluster rather than a supporting one. Practical loads it handles without complaint: a Proxmox host running a handful of VMs, a Jellyfin or Plex server doing hardware transcoding through the iGPU, a Home Assistant instance with room to spare, a Docker host for a dozen containers. What it is not is a storage box — there is one M.2 slot pair and no room for spinning disks — so pair it with NAS on the network rather than trying to make it one.

The one thing to plan around is that this is a machine whose noise floor is a function of how hard you push it. In a closet or a garage, irrelevant. In an office or a bedroom rack, that fan is audible under load, and no amount of mounting hardware changes that. If the rack lives somewhere you sit, plan the workload accordingly or plan to hear about it.

If you are shopping now rather than mounting something you already own, the SER10 Max is the current-generation equivalent in the same size class, and it has its own 10" Beelink SER10 Max Mini PC Rack Mount - 2U at the same 2U height for the same reasons.

Wrap-up

The SER8 is a straightforward machine to rack as long as you respect two things: the bottom intake and the rear exhaust. Give it 2U, keep the underside open, leave the rear clear of cable bundles, and it will run near-silent at the loads most homelabs actually impose on it. Size your UPS off roughly 20 W of steady draw rather than the 120 W brick, budget around 300 BTU/hr if you are doing closet heat-load math at sustained load, and check what rack screws your cabinet takes before the parts show up.
