The 2.5G Switch Upgrade Path: Who Actually Needs It

Every homelab eventually has the 2.5G conversation. A new mini PC shows up with a 2.5GbE port, the ISP starts advertising a plan faster than a gigabit, the Wi-Fi 7 access point on the ceiling has a 2.5G uplink, and suddenly the gigabit switch that has done its job quietly for five years looks like the slowest thing in the rack. The switches are cheap now, the NICs are already on the motherboard, and the upgrade feels like it should just happen.

Sometimes it should. Often it should happen in one or two places and nowhere else. The useful question is not "is 2.5G better" — it obviously moves more bits — but "which links in my network are actually saturating a gigabit, and how often." Below is how to answer that, what a sensible staged upgrade looks like, and the handful of gotchas that turn a thirty-minute swap into an evening of staring at link lights.

The mount for this build:

10" Netgear MS305 2.5GbE Switch Rack Mount - 1U

What 2.5G actually buys you

2.5GBASE-T is defined in IEEE 802.3bz, and its main selling point is not the speed — it is that it runs over the cable you already have. At typical in-home lengths it is happy on Cat5e, and Cat6 gives it more margin. That is the whole reason it exists: 10GBASE-T over copper wants better cable, runs hot, and costs more per port, so the industry backfilled a middle step that works on existing wiring.

In throughput terms, a gigabit link tops out around 940 Mbps of real TCP payload, or roughly 115 MB/s of file copy. A 2.5G link lands around 2.35 Gbps, roughly 280-290 MB/s. That is a 2.5x ceiling increase on paper, and in practice you see most of it on large sequential transfers.

Here is the gotcha that sets up the rest of this post: a link only runs as fast as its slowest end, and a transfer only runs as fast as its slowest component. A 2.5G switch between a 2.5G NAS and a gigabit laptop moves data at gigabit speed. A 2.5G link to a NAS serving from a single spinning disk is limited by that disk. The switch is rarely the only bottleneck, and if it is not the bottleneck at all, replacing it changes nothing except the colour of the link LEDs.

Who actually needs it

Work through these honestly. If none apply, keep the gigabit switch and spend the money elsewhere.

You have an ISP plan faster than 1 Gbps

This is the cleanest case. If you are paying for 2 Gbps fiber and your gateway's LAN side is gigabit, you are paying for bandwidth you cannot reach from any single client. The path that matters is ONT to gateway to switch to the one or two machines that do large downloads. A multi-gig WAN also only helps where a single client or a handful of concurrent clients can use it — twelve devices each pulling 80 Mbps of streaming video still fit comfortably inside a gigabit.

You move large files to and from a NAS regularly

A modern 3.5-inch hard drive does somewhere in the region of 200-280 MB/s sequential on its outer tracks. One drive already outruns a gigabit link. A multi-disk array, or any SSD pool, outruns it by a wide margin. If you edit video off the NAS, restore VM images, or push nightly backups that currently take long enough to annoy you, the NAS link and the workstation link are the two ports that earn 2.5G first.

You run a hypervisor cluster that migrates or replicates

Live migration of a VM with 16 GB of RAM over gigabit takes long enough to notice. Replication jobs and backups to a Proxmox Backup Server target behave the same way. Mini PCs like the current generation of Minisforum, Beelink, and ASUS NUC boxes frequently ship with 2.5G onboard, so the NICs are already paid for. A small dedicated 2.5G switch for the cluster's migration and storage traffic is one of the better uses of the upgrade.

You have Wi-Fi 6E or Wi-Fi 7 access points

High-end access points can push aggregate client throughput past a gigabit in favourable conditions, and most of them ship with a 2.5G uplink port for exactly that reason. "Favourable conditions" is doing a lot of work in that sentence — a single client at the far end of the house will not get there — but in a dense room it is real. If the AP is PoE-powered, note that a plain 2.5G switch does not solve this on its own; you need 2.5G and PoE on the same port, which narrows the field considerably.

Who does not need it

Streaming, even 4K HDR, sits at tens of megabits. Home Assistant, cameras recording to an NVR, DNS, smart home hubs, printers, and game consoles do not come close to a gigabit. If your heaviest regular transfer is a game download from a service that throttles to a few hundred megabits anyway, a 2.5G switch is a nice-to-have, not a fix.

Measure before you buy

Twenty minutes with iperf3 settles most of this. Run a server on the NAS or the hypervisor, run a client on the workstation, and look at the number. If you are sitting at 930-940 Mbps and the transfer you care about is slow, the link is the ceiling and 2.5G will help. If you are at 400 Mbps, something else is wrong — a bad termination, a half-duplex negotiation, a Wi-Fi hop you forgot about — and a faster switch will not fix it.

Then time a real transfer of a large file. If iperf3 says 940 Mbps and your file copy runs at 60 MB/s, the disk or the protocol is the bottleneck, not the network. SMB with small files, encrypted transfers on a low-power CPU, and single spinning disks are the usual suspects.

Last, check what the other end supports. Look at the NIC in each machine you plan to connect. A 2.5G switch port connected to a gigabit NIC negotiates to gigabit, and there is no error message to tell you that you just spent money on a port that will never exceed the old speed.

A staged upgrade path

The mistake is replacing the whole switching layer at once. The better approach is to put 2.5G where the measurements say it matters and leave gigabit everywhere else.

Stage one: a small 2.5G island

Most homelabs need three to five 2.5G ports: gateway LAN, NAS, main workstation, and one or two hypervisor nodes. A five-port unmanaged switch covers that exactly, and your existing gigabit switch hangs off it for everything else. The 10" Netgear MS305 2.5GbE Switch Rack Mount - 1U is built for this: the MS305 is a five-port, fanless, plug-and-play switch, and in a 10-inch rack it sits at 1U with every port and the power jack forward. The 10" Zyxel MG-105 & XMG-105 2.5G Switch Mini Rack Mount - 1U does the same job for the Zyxel five-port units.

The uplink between the 2.5G island and the gigabit switch is gigabit, and that is fine. The traffic you care about — NAS to workstation, node to node — stays inside the island and never crosses the slow link.

Stage two: a 10G uplink

Once you have more 2.5G devices than a five-port switch holds, or two switches that both carry heavy traffic, the link between them becomes the new bottleneck. Four 2.5G clients funnelling through a single 2.5G uplink share 2.5 Gbps between them. This is where an SFP+ port pays for itself.

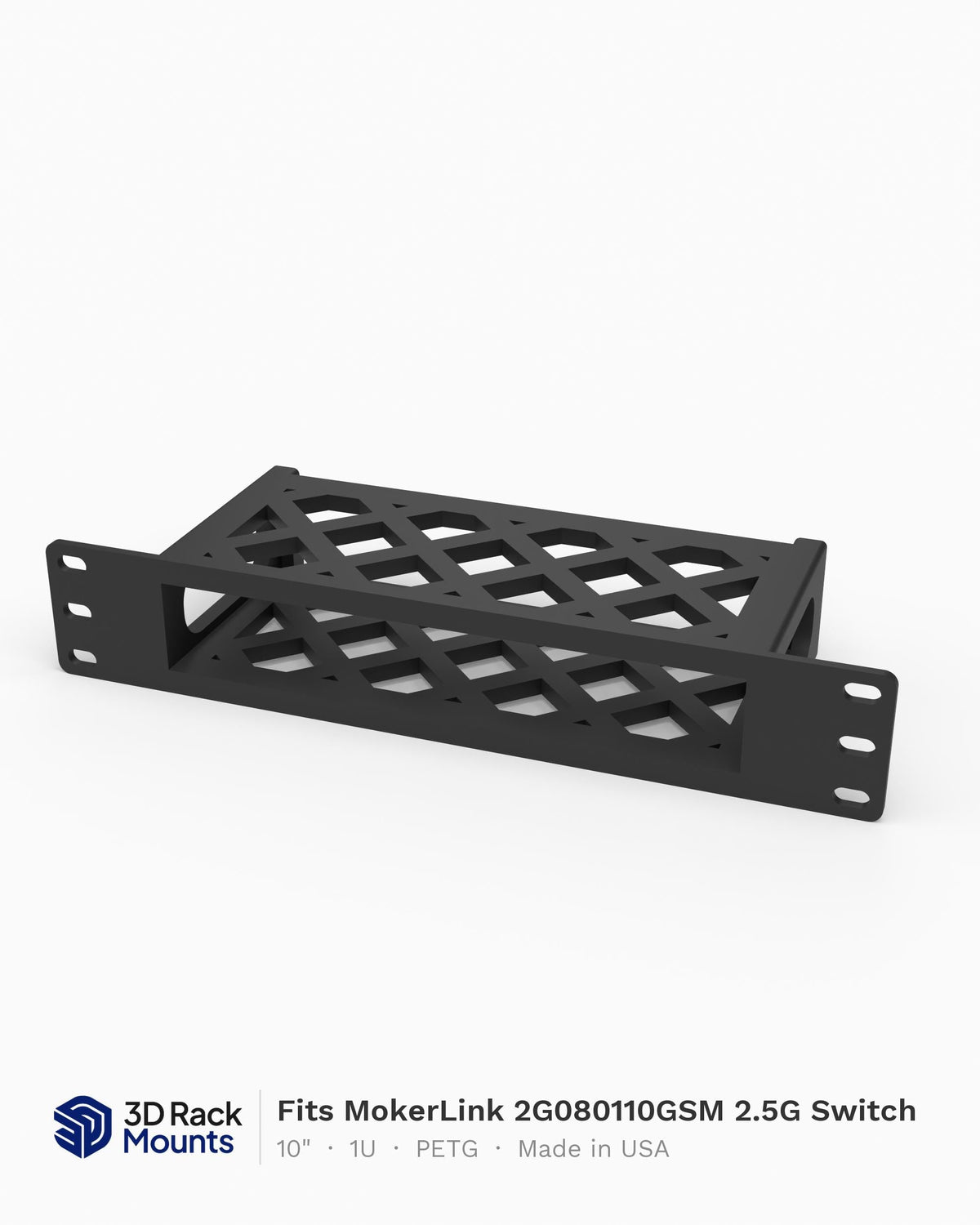

The Zyxel XMG-105 adds a 10G SFP+ port to the MG-105's five 2.5G ports. The MokerLink 2G080110GSM gives you eight 2.5G ports plus a 10G SFP+ uplink and a web-managed interface, which is a lot of switch for a mini rack. The 10" MokerLink 2G080110GSM 2.5G Switch Mini Rack Mount - 1U keeps all nine ports on the rack face at 1U. Use the SFP+ port for the NAS if the NAS has an SFP+ card, or for a DAC run to a second switch — a short passive DAC is cheaper and runs cooler than a 10GBASE-T module.

Stage three: managed, if you need it

Unmanaged 2.5G switches are fine until you want VLANs. If you are segmenting IoT, cameras, and lab traffic, a web-managed switch in the 2.5G layer saves you from tagging everything back at a gigabit managed switch. This is the practical argument for the MokerLink over an unmanaged five-port — the extra ports matter less than 802.1Q support. Do not buy managed for its own sake, though. A flat network with a firewall doing the real segmentation work is a legitimate design.

The gotchas

NIC quality varies. Early revisions of Intel's I225-V had well-documented link-drop problems, fixed in later steppings and driver updates. Realtek's RTL8125 family is common on mini PCs and generally behaves, though driver versions matter on some hypervisors. If a node drops its link every few hours after the upgrade, check the NIC revision and driver before blaming the switch or the cable.

Auto-negotiation surprises. Some devices negotiate 2.5G reliably only with the right driver settings, and a few older adapters with 2.5G on the spec sheet fall back to gigabit with certain switch chipsets. Check the link speed on both ends after you plug in, not just the green light. Most 2.5G switches use a different LED colour for 2.5G versus 1G — learn which is which before you assume it worked.

Heat. 2.5G PHYs draw noticeably more power per port than gigabit, and fanless 2.5G switches run warm to the touch. That is normal, but it means you should not wedge one between two warm mini PCs with no air gap. In a closed 10-inch cabinet, give the switch a U of separation from anything that exhausts heat upward, or put it low in the rack where the air is cooler. The switch mounts linked here are printed in PETG rather than PLA for exactly this reason: PLA softens at temperatures a warm switch in a closed cabinet can reach over a summer.

Cable in the walls. Cat5e usually carries 2.5G fine at in-home lengths, but a poorly terminated keystone or a patch cable of unknown origin can hold a link at gigabit or cause errors. If one run refuses to negotiate 2.5G while the others do, re-terminate the jack or swap the patch cable before anything else.

PoE. Most budget 2.5G switches are not PoE. If your access points or cameras need power, you either keep them on the existing PoE switch or buy a 2.5G PoE switch, which costs meaningfully more. Mixing an injector into a 2.5G run works, but make sure the injector is rated for 2.5G data — plenty of older injectors are gigabit only.

Where it lives in the rack

In a 10-inch rack, a five-port 2.5G switch takes 1U, and so does an eight-port. Put the 2.5G switch adjacent to the patch panel and the devices it serves so the patch cables between them stay short — 150-300 mm patch cords are easy to dress and keep the front of the rack readable. The gigabit switch that handles everything else can sit a U or two away with a single uplink between them.

In a 19-inch rack, the 19" Netgear MS305 2.5GbE Switch Rack Mount - 1U (Modular) is part of the Modular Series, so it tiles next to other 1U Modular mounts to fill out the row. A practical pairing is the MS305 alongside the gateway on the same 1U: the gateway-to-2.5G-switch link becomes a very short patch, and the two devices that carry your WAN traffic sit together where you can see both sets of link lights at once.

Label the 2.5G ports. Once you have a mixed network, the physical port a cable lands in determines its speed, and somebody — possibly you, in six months — will move a NAS cable to a free gigabit port and wonder why backups got slow.

Wrap-up

2.5G is worth it where a gigabit link is demonstrably the ceiling: multi-gig WAN, a NAS that can outrun a gigabit, a hypervisor cluster that migrates and replicates, and a high-end access point in a busy room. It is not worth it for streaming, smart home traffic, or anything that already runs well below a gigabit.

Measure first with iperf3 and a real file copy. Start with a small unmanaged 2.5G island for the three to five ports that matter, add a 10G SFP+ uplink when the island outgrows a single switch, and go managed only if you need VLANs in that layer. Check both ends of every link after the swap, and leave the switch some room to breathe.
